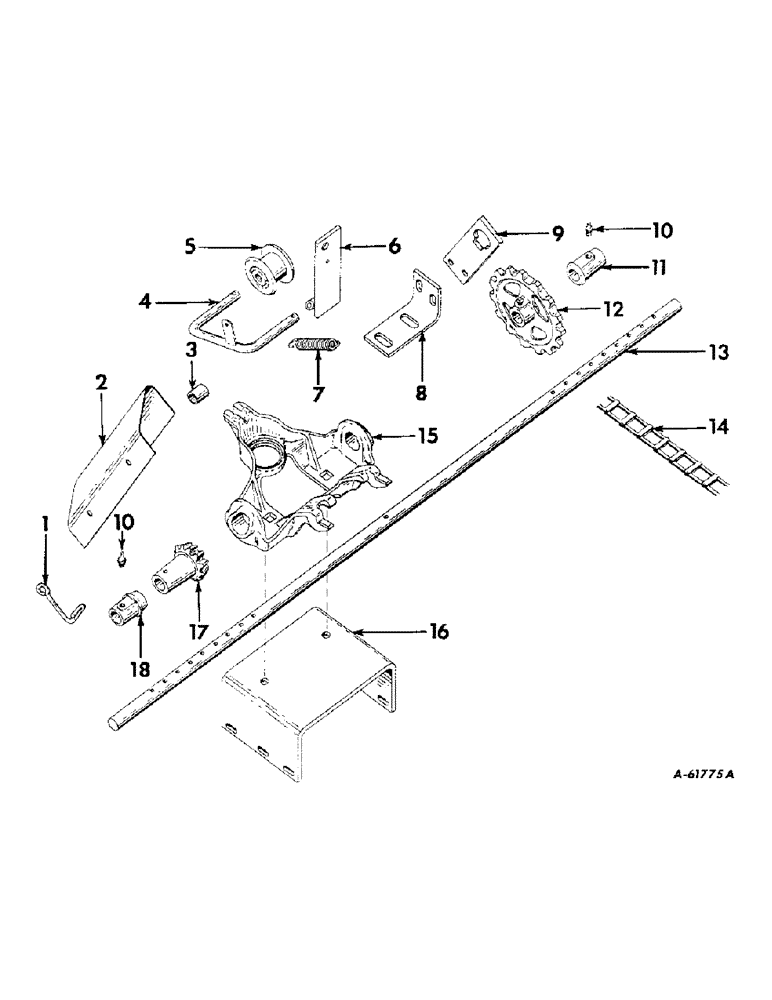

Запчасти Case IH 225 (AA-4) - FEED SHAFT AND HOPPER SUPPORT

1

PO28475

BRACE

CONNECTOR, ribbon tube

1шт.

2

463202R1

GUARD, tube

1шт.

BOLT, 7/16 x 3-1/4 in. hex-hd mach

1шт.

W6652

WASHER

15/32 x 1 in. x 16 ga

1шт.

NUT, 7/16 in. hex

1шт.

3

513971R1

BUSHING

SPACER, guard

1шт.

4

464307R11

ARM, chain tightener, 1960 and since

1шт.

4

523248R11

ARM, chain tightener, 1960

1шт.

PIN, 3/16 x 1 in. self-opening cotter

3шт.

5

516457R1

PULLEY

ROLLER, chain tightener

1шт.

6

464308R91

BRACKET ASSY, idler, 1960 and since

1шт.

6

463201R11

BRACKET, idler, 1960, order 464307R11 and 464308R91

1шт.

BOLT, 1/2 x 1-1/4 in. hex-hd mach

1шт.

NUT, 1/2 in. hex

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

1шт.

WASHER, 1/2 in. lock

1шт.

7

PO16

SPRING

chain tightener, 25/32 in. OD, 3-7/16 in. long, 27-1/2 coils

1шт.

8

463199R1

BRACKET, center bearing

1шт.

NUT, 7/16 in. hex

2шт.

SCREW, 7/16 x 1-1/4 in. hex-hd cap

1шт.

SCREW, 7/16 x 2 in. cap

1шт.

WASHER, 7/16 in. lock

2шт.

W6652

WASHER

15/32 x 1 in. x 16 ga flat

2шт.

9

463200R1

PLATE, center bearing

1шт.

BOLT, 3/8 x 1 in. hex-hd mach

2шт.

WASHER, 3/8 in. lock

2шт.

WASHER, 13/32 x 7/8 x 16 ga

2шт.

NUT, 3/8 in. hex

2шт.

10

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree elbow lubrication

1шт.

11

PO1818

BUSHING

BEARING, feed shaft center

1шт.

12

PO2639BX

SPROCKET ASSY.

SPROCKET ASSY, feed shaft, 12T

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

102905

SET SCREW,Sq Hd, 7/16"-14 x 3/4"

SCREW, 7/16 x 3/4 in. sq-hd cup-pt set

1шт.

13

523251R1

SHAFT, feed

1шт.

WASHER, 25/32 x 1-1/4 in. x 16 ga

3шт.

14

CHAIN, drive, use 12 No. 32 steel links from 10 ft roll No. CS-32

1шт.

15

513999R3

BRACKET

hopper

1шт.

BOLT, 1/2 x 1-1/4 in. crg

2шт.

NUT, 1/2 in. hex

2шт.

16

463198R1

BRACKET, mounting

1шт.

BOLT, 1/2 x 1-1/4 in. mach

4шт.

NUT, 1/2 in. hex

4шт.

WASHRER, 1/2 in. lock

4шт.

Q5035

WASHER

17/32 x 1-1/4 x 16 ga

4шт.

17

513998R1

PINION

drive, 13T

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

18

523247R1

BEARING, feed shaft outer

1шт.
