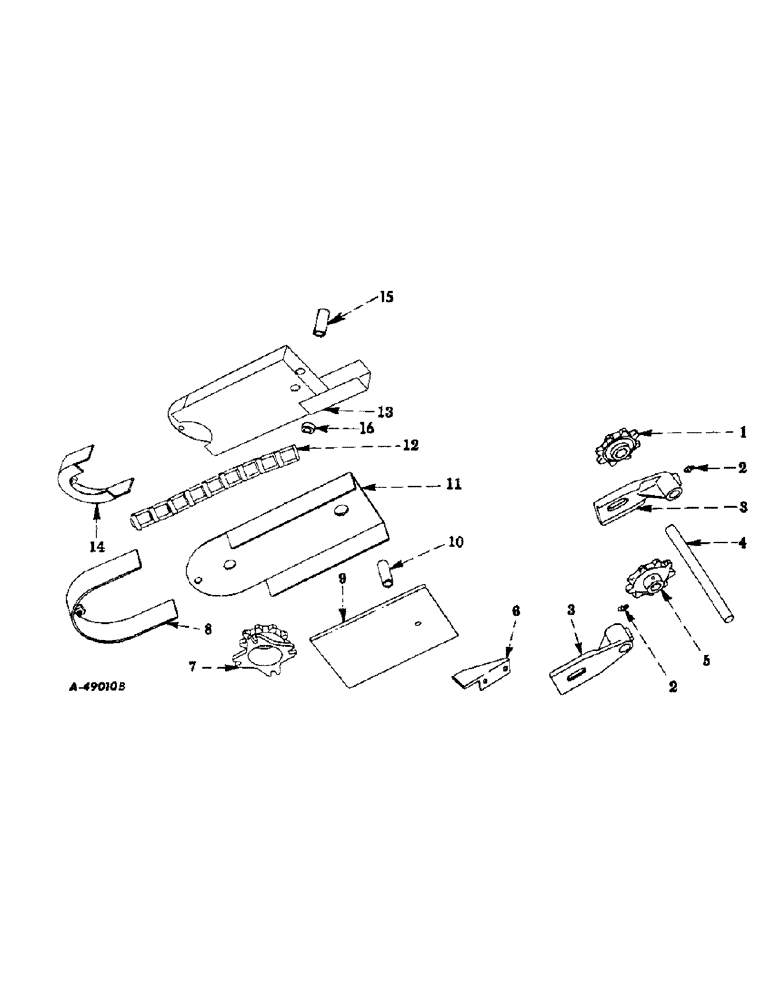

Запчасти Case IH 225 (AA-3) - COUNTERSHAFT AND DRIVE

1

PO575AX

SPROCKET ASSY.

SPROCKET W/SET SCREW, countershaft driven, 8T

1шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

2

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. drive type straight lubrication

1шт.

3

523246R1

ARM

BEARING, countershaft

1шт.

4

523250R1

CRANKSHAFT

COUNTERSHAFT

1шт.

575810R1

WASHER

21/32 x 1-1/2 in. x 11 ga

2шт.

Q3501

WASHER

21/32 x 1-1/4 in. x 16 ga

2шт.

5

PO2754

DRIVE SPROCKET

SPROCKET, countershaft driven, 9T

1шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

6

523256R2

LUG, driving

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 in. C-Z mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

7

478441R1

SPROCKET, drive, 10T, 65

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2 in. sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

523245R2

SPROCKET, drive, 9T on rolling fin, Serial Range: 1958-1964

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

523257R11

END, chain guard, 1957

1шт.

9

523258R11

GUARD, chain inner, 1957

1шт.

10

S3780

SPACER,3/8" Pipe x 1 3/4"

BUSHING, Inner chain guard, 1957

1шт.

11

523259R1

GUARD, chain outer, 1957

1шт.

BOLT, 3/8 x 1/2 in. mach

1шт.

17649R1

BOLT, 7/16 x 3-1/4 in. mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

WASHER, 7/16 in. lock

1шт.

12

CHAIN, countershaft drive, use 43 No. 32 steel links from 10 ft roll No. CS-32

1шт.

12

CHAIN, feed shaft drive, use 40 No. 32 steel links from 10 ft roll No. CS-32

1шт.

13

524788R91

GUARD, chain, 1958 TO 1964

1шт.

13

480032R91

GUARD ASSY, chain, 1965 and since

1шт.

17649R1

BOLT, 7/16 x 3-1/4 in. hex-hd mach

1шт.

NLS

NO LONGER SERVICED

7/16 hex

1шт.

179831

SCREW,Hex, 3/8" - 16 x 3/8"

3/8 x 3/8 in. cap

1шт.

W6652

WASHER

15/32 x 1 x 16 ga

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

478439R91

GUARD

ASSY, chain, 1965 and since

1шт.

14

524785R91

END, chain guard, Serial Range: 1958-1964

1шт.

15

512256R1

SPACER

chain guard

1шт.

16

S5375

SPACER,3/8" Pipe x 3/8"

chain guard to guide fin support

1шт.
