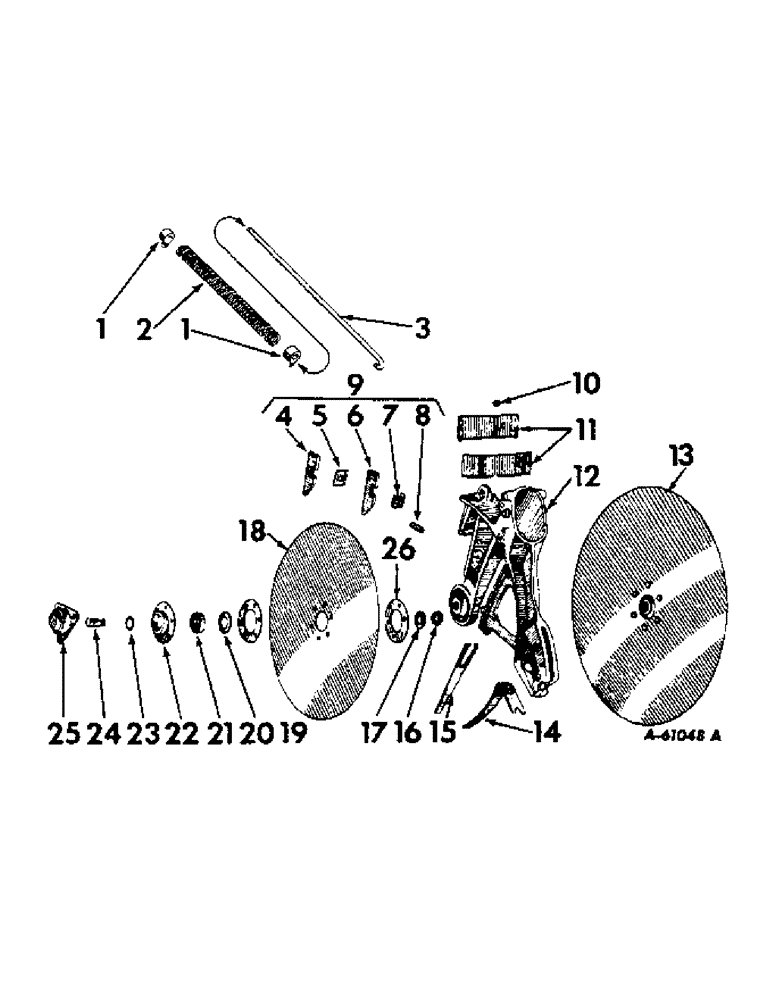

Запчасти Case IH 224 (Y-6) - DISK APPLICATOR

1

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR ASSEMBLY, disk pressure rod

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. sq-hd cup-pt set

1шт.

2

3933B

SPRING, disk pressure rod, 1961 and since

1шт.

2

PO165

SPRING, disk pressure rod, Serial Range: 1959-1961

1шт.

3

462752R1

ROD, disk pressure, Serial Range: 1959-1961

1шт.

PIN, 3/16 x 1 in. self-opening cotter

1шт.

3

464325R2

ROD, disk pressure, 1961 and since

1шт.

PIN, 3/16 x 1-1/4 in. self-opening cotter

1шт.

4

N2567

LARGE PLATE

SCRAPER, inside RH

1шт.

5

N62538

KNIFE ASSY

SPREADER, inside scraper

1шт.

6

N2568

SCRAPER

inside LH

1шт.

7

N62537

HINGE

inside scraper

1шт.

620723R1

BOLT

5/16-24UNF x 2-1/2 in. sq-hd mach

1шт.

9413936

NUT,5/16"-24, GA

5/16-24UNF stover lock

1шт.

8

N62536

VALVE SPRING

SPRING, inside scraper

1шт.

9

N52570

BLADE

SCRAPER ASSEMBLY, inside

1шт.

10

NA62774

SPRING

outside scraper

1шт.

11

601291R1

SCRAPER

outside

1шт.

BOLT W/NUT, 5/16 x 4-1/4 in. crg

1шт.

12

603008R2

BOOT, double disk front

1шт.

462491R93

BOOT ASSEMBLY, double disk front, consists of ref. no. 9 and 12

1шт.

13

464538R91

DISK ASSEMBLY, double, 1961 and since

1шт.

13

603020R91

DISC

DISK ASSEMBLY, double, Serial Range: 1959-1961

1шт.

14

NA62293

GUARD ASSY.

GUARD, weed

1шт.

BOLT, 5/16 x 7/8 in. hex-hd mach

1шт.

NUT, 5/16 in. sq

1шт.

WASHER, 5/16 in. lock

1шт.

15

N62294

DEFLECTOR

grain

1шт.

16

602988R1

SPACER

seal retainer

1шт.

17

464628R1

SEAL

dirt

1шт.

18

603013R2

PLOW DISC

BLADE, double disk

1шт.

19

602992R1

GASKET

disk paper

1шт.

20

602994R1

FLANGE

corrosion prevention

1шт.

21

602996R91

BEARING

ball

1шт.

22

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

CAP, disk

1шт.

RIVET, 1/4 x 1/2 in. b-hd

6шт.

23

141706

WASHER

11/16 in. internal tooth lock

1шт.

24

603011R1

BOLT (SPREADER)

BOLT, disk RH thread

1шт.

24

603010R1

BOLT (SPREADER)

BOLT, disk LH thread

1шт.

25

603012R1

DUST CAP

CAP, dirt, Serial Range: 1959-1961

1шт.

25

464483R1

CYLINDER END CAP

CAP, dirt, 1961 and since

1шт.

SCREW, 1/4 x 7/16 in. cap

4шт.

SCREW, 1/4 x 1/2 in. cap

2шт.

WASHER, 1/4 in. lock

6шт.

26

464480R1

WASHER

WASHER, reinforcing, 1961 and since

1шт.
