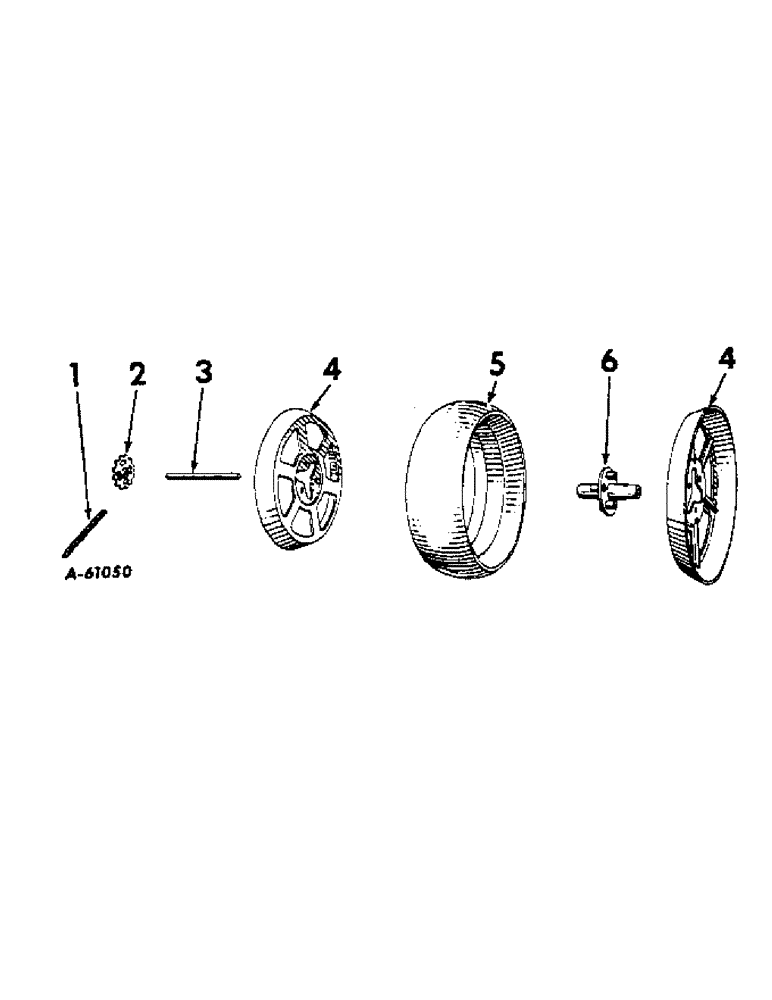

Запчасти Case IH 224 (Y-5[A]) - PACKER WHEEL

1

CHAIN, drive, use 33 no. 32 steel links from 10 ft. roll CS 32

1шт.

2

PO2639B

PINION

SPROCKET, 12-T

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

3

462437R1

SHAFT, drive

1шт.

4

PO3150

WHEEL

packer-half

1шт.

5

517315R1

TYRE/TIRE

TIRE, 6 x 16 zero pressure

1шт.

6

523393R1

HUB, packer wheel

1шт.

BOLT W/NUT, 5/16 x 2-1/4 in. hex-hd mach

6шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

Q1250

PIN

1/4 x 1-7/8 in. dld-std-hd

1шт.

WASHER, 5/16 in. lock

1шт.
