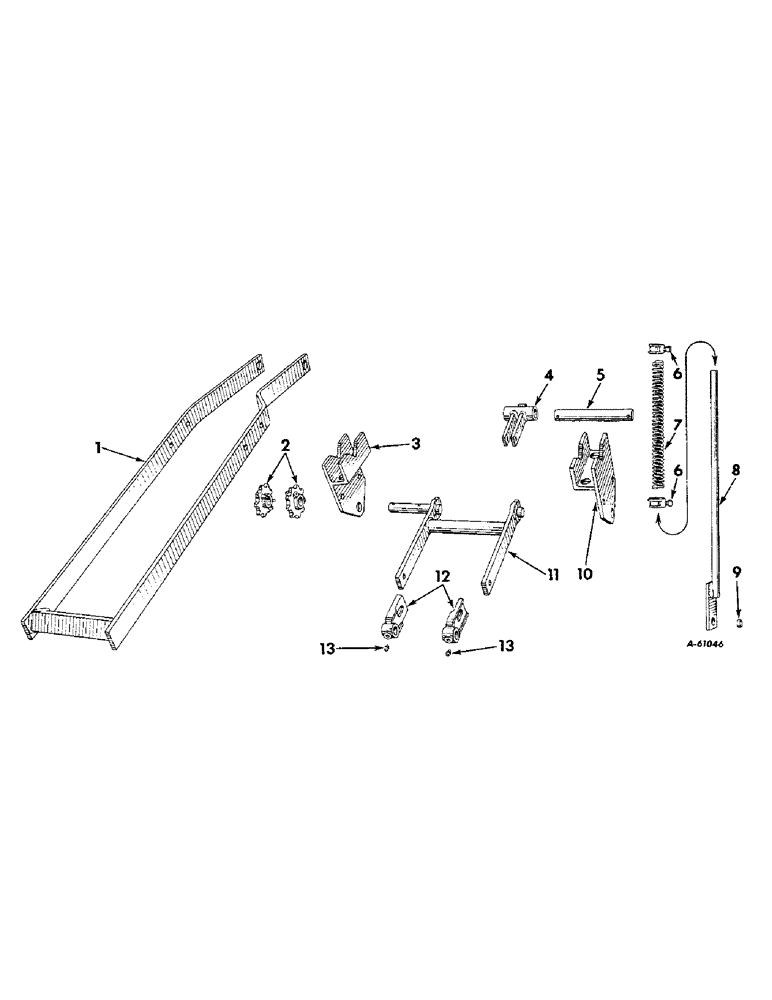

Запчасти Case IH 224 (Y-4) - HOPPER SUPPORT

1

462440R91

SUPPORT ASSEMBLY, planter and fertilizer LH

1шт.

1

462441R91

SUPPORT ASSEMBLY, planter and fertilizer RH

1шт.

2

518060R11

SPROCKET, countershaft, 9-T

1шт.

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. drive type straight lubrication

1шт.

3

462429R92

FRAME ASSEMBLY, wheel pivot LH

1шт.

BOLT, 5/8 x 1-3/4 in. hex-hd mach

2шт.

WASHER, 5/8 in. lock

2шт.

4

462749R91

DRAWBAR ASSEMBLY

1шт.

BOLT W/NUT, 7/16 x 2 in. hex-hd mach

1шт.

SCREW, 5/8 x 1-1/4 in. sq-hd cup-pt set

1шт.

WASHER, 7/16 in. lock

1шт.

5

462748R1

PIN, drawbar pivot

1шт.

PIN, 5/16 x 2 in. self-opening cotter

2шт.

6

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR ASSEMBLY, set

1шт.

SCREW, 1/2 x 5/8 in. sq-hd cup-pt set

1шт.

7

PO165

SPRING, pressure rod

1шт.

8

462448R11

ROD ASSEMBLY, pressure

1шт.

BOLT W/NUT, 1/2 x 1-3/4 in. crg

1шт.

WASHER, 1/2 in. lock

1шт.

WASHER, 17/32 x 1-1/4 in. x 16 ga

1шт.

9

455410R1

SPACER

pressure rod

1шт.

10

462430R92

FRAME ASSEMBLY, wheel pivot RH

1шт.

BOLT W/NUT, 5/8 x 1-3/4 in. hex-hd mach

2шт.

WASHER, 5/8 in. lock

2шт.

11

462432R91

FRAME ASSEMBLY, packer wheel

1шт.

PIN, 1/4 x 1-1/2 in. self-opening cotter

2шт.

WASHER, 1-1/32 x 1-3/4 in. x 16 ga

2шт.

12

515504R1

BEARING, drive shaft

1шт.

BOLT, w/nut, 1/2 x 1-1/2 in. crg

1шт.

WASHER, 1/2 in. lock

1шт.

13.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.
