Запчасти Case IH 224 (Y-3) - DRIVE UNIT

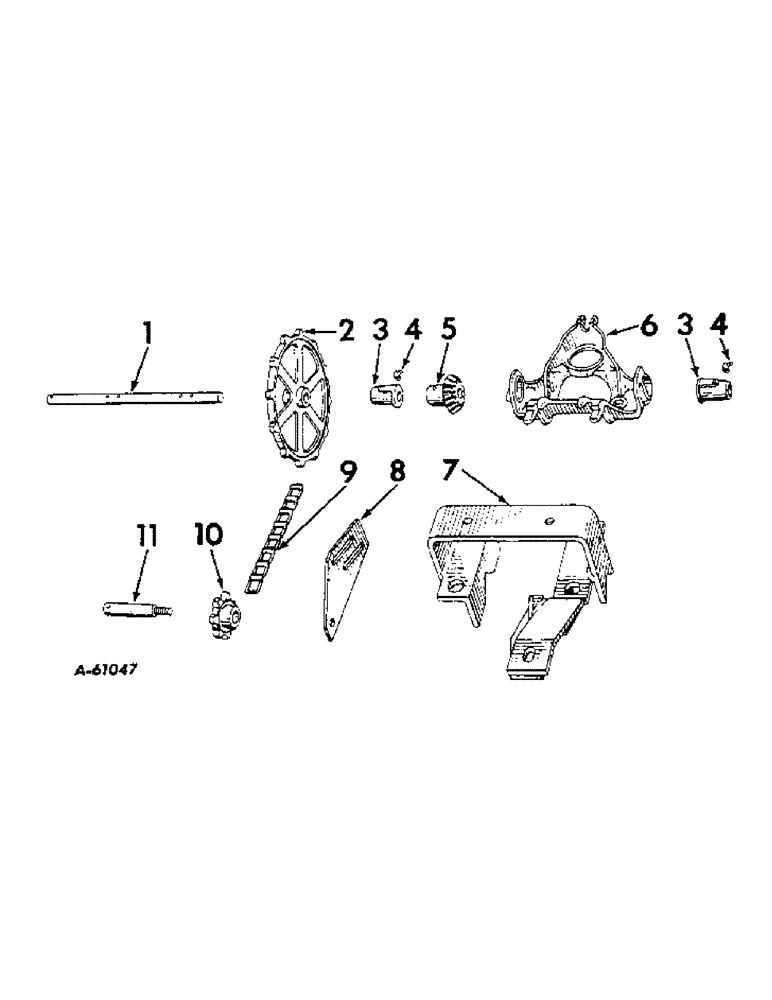

Схема запчастей Case IH 224 - (Y-3) - DRIVE UNIT
11
2
9
4
4
8
10
7
3
6
5
1
3

Артикул

Название

Примечание

Количество

1

524951R1

SHAFT, feed

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

2шт.

WASHER, 25/32 x 1-1/4 in. x 16 ga

2шт.

2

514267R1

SPROCKET, 24-T

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

3

PO1818

BUSHING

BEARING, feed

1шт.

4

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree elbow lubrication

1шт.

5

513998R1

PINION

drive, 13-T

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

6

513999R3

BRACKET

hopper

1шт.

BOLT W/NUT, 1/2 x 1-1/2 in. crg

2шт.

WASHER, 1/2 in. lock

2шт.

7

464319R12

SUPPORT, hopper bracket, 1961 and since

1шт.

NLS

NO LONGER SERVICED

SCREW, 7/8-14UNF x 3-3/4 in. hex-hd cap

4шт.

NUT, 7/8-14UNF

4шт.

7

462426R11

SUPPORT, hopper bracket, Serial Range: 1959-1961

1шт.

SCREW, 7/8-14UNF x 7 in. hex-hd cap

4шт.

NUT, 7/8-14UNF

4шт.

8

462438R1

PLATE, chain tightener

1шт.

BOLT W/NUT, 3/8 x 1-1/4 in. crg

2шт.

WASHER, 3/8 in. lock

2шт.

9

CHAIN, fertilizer drive, use 44 no. 32 steel links from 10 foot roll no. CS-32

1шт.

10

PO3089

DRIVE SPROCKET

SPROCKET, idler, 7-T

1шт.

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. drive type straight lubrication

1шт.

11

462439R1

SPINDLE, chain tightener

1шт.

NUT, 1/2 in.

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

1шт.

WASHER, 1/2 in. lock

1шт.

11

464324R1

SPINDLE, chain tightener, 1961 and since

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

1шт.

Выбрано товаров: 33
