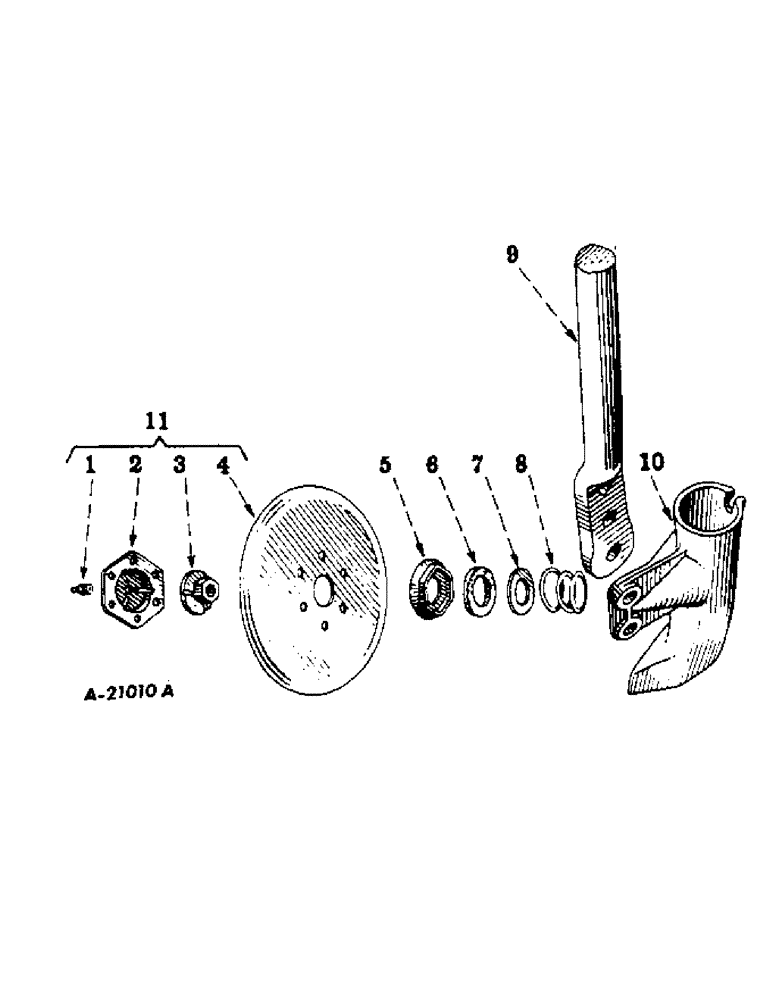

Запчасти Case IH 217 (V-16[A]) - DISK APPLICATOR

1

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

2

511870R1

HUB

BEARING, disk

1шт.

3

511869R1

BLOCK

bearing

1шт.

NUT, 1/2 in.

1шт.

SCREW, 1/2 x 1-3/4 in. cap

1шт.

WASHER, 1/2 in. HV lock

1шт.

4

DISK, opener, 13 in. dia.

1шт.

RIVET, 1/4 x 3/4 in. rd-hd, not service separately order 511035R11

1шт.

5

511871R1

WASHER

WASHER, dust

1шт.

6

13965A

WASHER

disk bearing felt, 1-3/8 x 1-7/8 x 3/16 in.

1шт.

7

511873R1

SHIM

WASHER, felt compression

1шт.

8

516396R1

SPRING

disk bearing, 1.644 OD, 1 in. long, 3 coils

1шт.

9

512369R3

STANDARD, spout

1шт.

BOLT, 1/2 x 1-3/4 in. mach

2шт.

NUT, 1/2 in. hex

2шт.

WASHER, 1/2 in. long

1шт.

10

512379R1

SPOUT, left, not for one row planters

1шт.

10

512378R1

SPOUT, right

1шт.

11

511035R11

DISK ASSEMBLY, opener

1шт.
