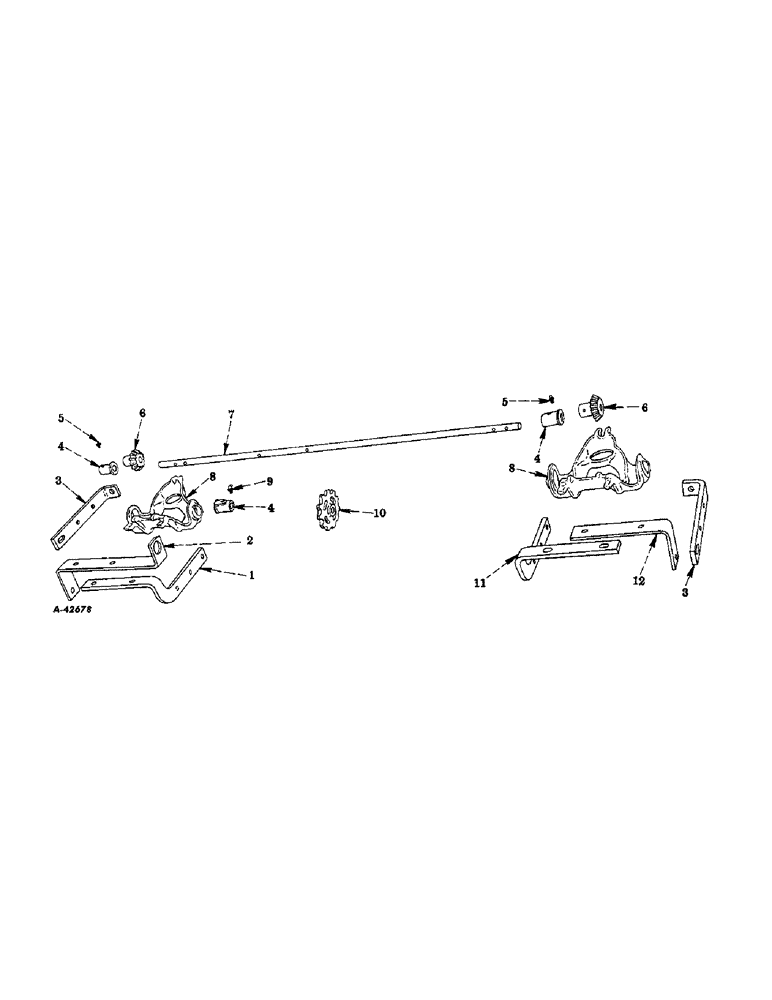

Запчасти Case IH 215 (U-6) - HOPPER BRACKET AND FEED SHAFT, 1957 TO 1965

1

522201R1

BRACKET, left hopper support

1шт.

2

522198R1

SUPPORT, hopper shaft bearing

1шт.

BOLT, 1/2 x 1-1/2 in. mach

1шт.

WASHER, 1/2 in. lock

1шт.

3

522197R1

BRACE, hopper shaft bearing support

1шт.

BOLT, 1/2 x 3-1/4 in. mach

1шт.

WASHER, 1/2 in. lock

1шт.

4

PO1818

BUSHING

BEARING, feed shaft

1шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

6

513998R1

PINION

drive, 13T

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

PIN, 1/4 x 1-9/16 in. headed

1шт.

7

522194R1

SHAFT, feed

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

3шт.

WASHER, 25/32 x 1-1/4 in. x 16 ga

3шт.

8

513999R3

BRACKET

hopper

1шт.

BOLT, 1/2 x 1-3/4 in. mach

2шт.

WASHER, 1/2 in. lock

2шт.

9

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree elbow lubrication

1шт.

10

PO2938AX

SPROCKET, hopper shaft, 11T

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

PIN, 1/4 x 1-9/16 in. headed

1шт.

SCREW, 7/16 x 3/4 in. cup-pt sq-hd set

1шт.

11

522202R1

BRACKET, right hopper support

1шт.

BOLT, 1/2 x 1-1/2 in. crg

1шт.

BOLT, 1/2 x 1-3/4 in. crg

1шт.

BOLT, 1/2 x 2-1/2 in. mach

1шт.

BOLT, 1/2 x 3 in. mach

1шт.

WASHER, 1/2 in. lock

2шт.

12

522199R1

SUPPORT, outside hopper bracket

1шт.

BOLT, 1/2 x 1-1/2 in. mach

1шт.

WASHER, 1/2 in. lock

1шт.
