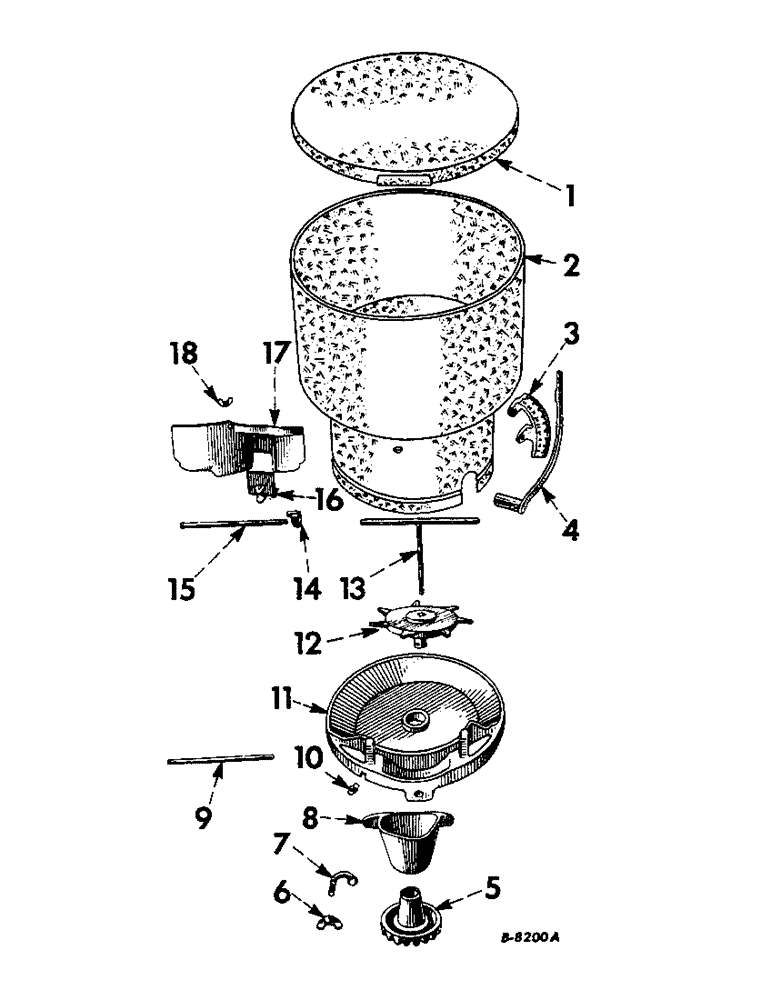

Запчасти Case IH 215 (U-2) - HOPPER

1

620122R1

LID, hopper

1шт.

2

620720R91

HOPPER

galvanized, 65 lbs. capacity

1шт.

445141

NUT

1/4 in. spring

3шт.

455578

SCREW, 1/4 x 5/8 in. cd-pltd slt-rd hd mach

3шт.

3

620710R1

INDICATOR

PLATE, indicator

1шт.

NUT, 1/4 in. cd-pltd sq

2шт.

455578

SCREW, 1/4 x 5/8 in. cd-pltd slt-rd hd

2шт.

WASHER, 1/4 in. cd-pltd lock

2шт.

4

620717R11

SUPPORT

LEVER W/SET SCREW, quantity

1шт.

102892

SET SCREW

3/8 x 1/2 in. cup-pt sq-hd set

1шт.

5

3567A

GEAR

bevel, 18T

1шт.

6

103129

BEARING CONE

3/8 in. wing

1шт.

7

623088R1

HOOK

BOLT, hopper hold-down, 3/8 x 2-7/8 in. cd-pltd dld-std-hd pin

1шт.

129-419

WING NUT,5/16"-18

NUT, 3/8 in. wing

1шт.

WASHER, 13/32 x 7/8 in. x 11 ga

1шт.

8

3572A

SPOUT, DISCHARGE

SPOUT

1шт.

NUT, no. 10 sq.

2шт.

SCREW, no. 10 x 3/4 in. slt-rd-hd mach

2шт.

WASHER, no. 10 lock

2шт.

9

Q817

PIN

5/16 x 6 in. dld-std-hd

1шт.

PIN, 1/8 x 3/4 in. cotter

1шт.

10

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. straight drive type lubrication

1шт.

11

3570ADX

BOTTOM

W/FITTING, hopper

1шт.

12

622489R11

RIM

WHEEL W/PIN, feed, for light delivery, 14T

1шт.

12

NC115X

WHEEL

W/PIN, feed, for heavy delivery, 7T

1шт.

12

NC316X

WHEEL

W/PIN, feed, for medium delivery, 7T, not furnished as part of fertilizer hopper

1шт.

N62414

PIN,3.96mm OD x 28mm L

5/32 x 1-1/8 in. hdls

1шт.

13

43037A

ROTATOR

AGITATOR

1шт.

14

3562AX

ARM

W/SET SCREW, gate rod

1шт.

88949

SET SCREW,Sq Hd, 5/16" - 18 x 5/8"

SCREW, 5/16 x 5/8 in. cup-pt sq-hd set

1шт.

15

33571A

ROD

gate

1шт.

16

3563A

PORT

GATE

1шт.

17

3571AA

PLATE

back

1шт.

BOLT, 5/16 x 3/4 in. sq-hd mach

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16 in. wing

1шт.

WASHER, 5/16 in. lock

1шт.

WASHER, 21/64 x 3/4 in. x 16 ga

1шт.

18

129-419

WING NUT,5/16"-18

NUT, 5/16 in. wing

1шт.
