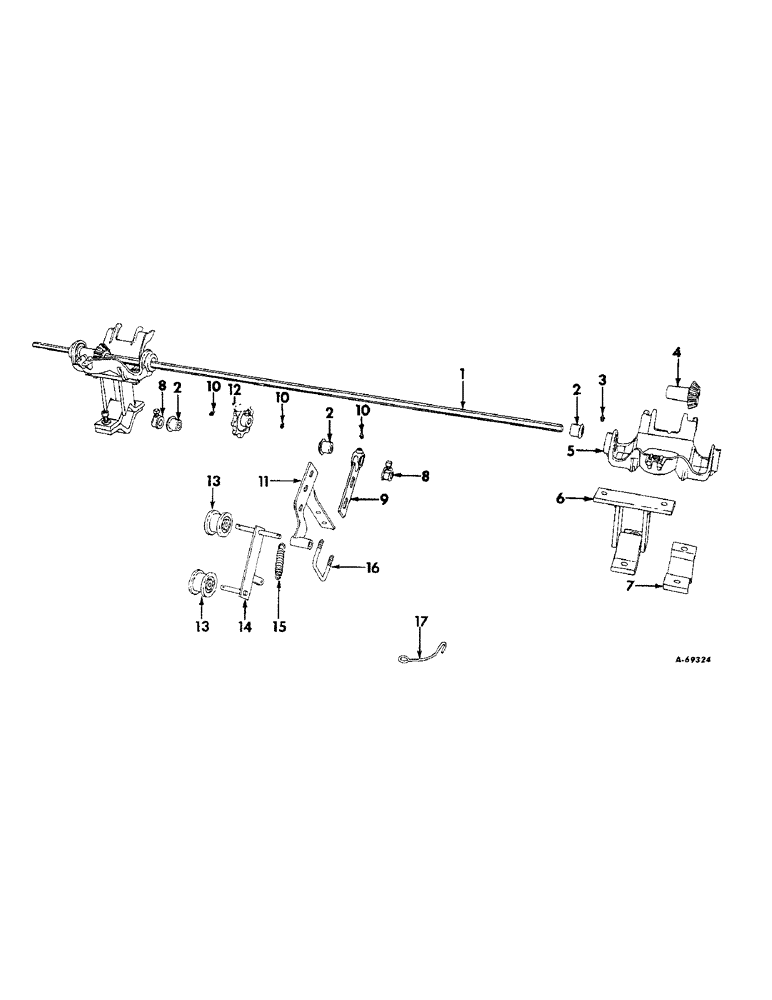

Запчасти Case IH 214 (T-10) - DRIVE UNIT

1

526483R1

SHAFT, hopper

1шт.

575813R1

WASHER

25/32 x 1-1/4 x 16 ga

1шт.

2

625569R1

HUB CAP

BEARING, hopper bracket

3шт.

3

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree elbow lubrication

1шт.

4

526473R1

GEAR

PINION, hopper drive

2шт.

5

526470R2

BRACKET, hopper

1шт.

BOLT W/NUT, 1/2 x 1-1/2 in. crg

2шт.

WASHER, 1/2 in. lock

2шт.

6

526491R91

CLAMP, hopper support

1шт.

7

526480R1

CLAMP, hopper

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

W/NUT, 1/2 x 2-1/4 in. C-Z mach

2шт.

WASHER, 1/2 in. lock

2шт.

NUT, 1/2 in.

2шт.

8

1431BX

COLLAR CLAMP

COLLAR W/SET SCREW, set

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2 x 3/4 in. cup-pt sq-hd set

1шт.

9

467300R11

BRACKET, bearing

1шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

11

467298R11

BRACKET, tightener

1шт.

BOLT W/NUT, 3/8 x 1 in. mach

1шт.

BOLT W/NUT, 3/8 x 1-1/2 in. mach

1шт.

WASHER, 3/8 in. lock

2шт.

WASHER, 13/32 x 13/16 x .065

2шт.

12

467304R1

SPROCKET, 12T

1шт.

102893

SCREW, 3/8 x 5/8 in. cup-pt sq-hd set

1шт.

13

516457R1

PULLEY

ROLLER, chain tightener

2шт.

14

467301R11

TIGHTENER, chain

1шт.

PIN, 3/16 x 1 in. cotter

3шт.

WASHER, 17/32 x 1-1/16 in. x .095

1шт.

15

467227R1

SPRING, extension

1шт.

16

527067R1

U-BOLT

1шт.

NUT, 3/8 in.

2шт.

17

PO28475

BRACE

CONNECTOR, ribbon

1шт.
