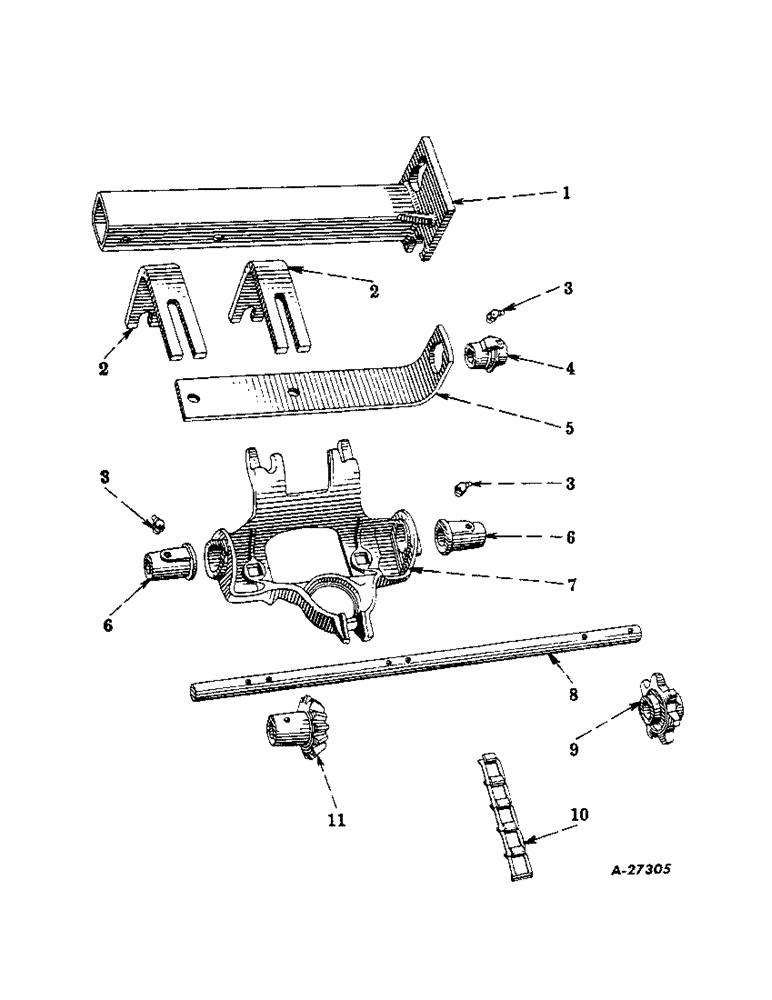

Запчасти Case IH 1A-101 (H-06) - HOPPER BRACKET AND FRAME, LEFT, FOR EXTRA HOPPER ATTACHMENT

1

516527R91

FRAME, hopper mounting

1шт.

PO25842A

BOLT

5/8 x 1-1/4 in. conical-hd cap

2шт.

2

515310R1

SUPPORT, left hopper bracket

1шт.

BOLT, 1/2 x 3-3/4 in. mach

1шт.

WASHER, 1/2 in. lock

1шт.

WASHER, 17/32 x 1-1/4 in. x 16 ga

1шт.

3

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree elbow lubrication

1шт.

4

512806R1

SLEEVE

BEARING, feed shaft outer

1шт.

PIN, 3/16 x 1 in. self-opening cotter

1шт.

5

516524R1

BRACKET, feed shaft outer bearing

1шт.

6

PO1818

BUSHING

BEARING, hopper bracket feed shaft

1шт.

7

513999R3

BRACKET

hopper

1шт.

BOLT, 1/2 x 1-3/4 in. crg

2шт.

WASHER, 1/2 in. lock

2шт.

8

516522R1

SHAFT, feed, 3/4 x 20-19/32 in.

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

2шт.

WASHER, 25/32 x 1-1/4 in. x 16 ga

2шт.

9

PO1763

DRIVE SPROCKET

SPROCKET, feed shaft

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

10

CHAIN, hopper drive, use 39 no. 32 steel links from 10 ft roll no. CS-32

1шт.

11

513998R1

PINION

drive, 13T

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.
