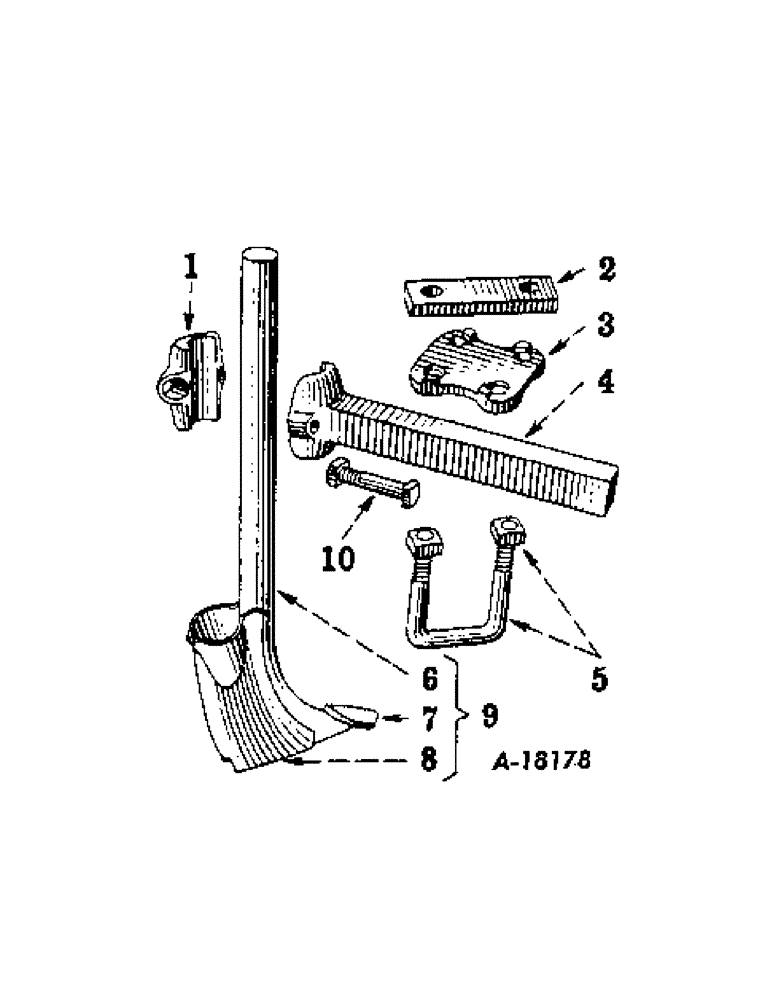

Запчасти Case IH 1A-101 (H-11) - DEEP APPLICATOR / PRODUCT GRAPHICS

1

1779BB

CLAMP

CAP, tool bar extension

1шт.

2

29269BA

STRAP

CLIP, u-bolt

1шт.

3

514299R1

BLOCK, clamp

1шт.

4

29603BA

CLAMP

EXTENSION, tool bar

1шт.

5

514300R1

U-BOLT, clamp block

1шт.

NUT, 5/8 in.

2шт.

6

514296R1

SHANK

STANDARD

1шт.

7

PO26869

SHOVEL

POINT, diamond

1шт.

RIVET, 1/4 x 1 in. csk-hd

1шт.

RIVET, 1/4 x 1-1/4 in. csk-hd

1шт.

8

514663R91

CHUTE (DOWNWARD)

SPOUT

1шт.

106918

RIVET

5/16 x 1-1/4 in. truss-hd

3шт.

9

STANDARD W/POINT AND SPOUT

1шт.

10

29822B

BOLT

1/2 x 2-3/4 in. sq-hd mach, heat treated

2шт.

NUT, 1/2

2шт.

2752215R1

IH, opposite the fertilizer feed spout and 3 in. below the top opening

1шт.
