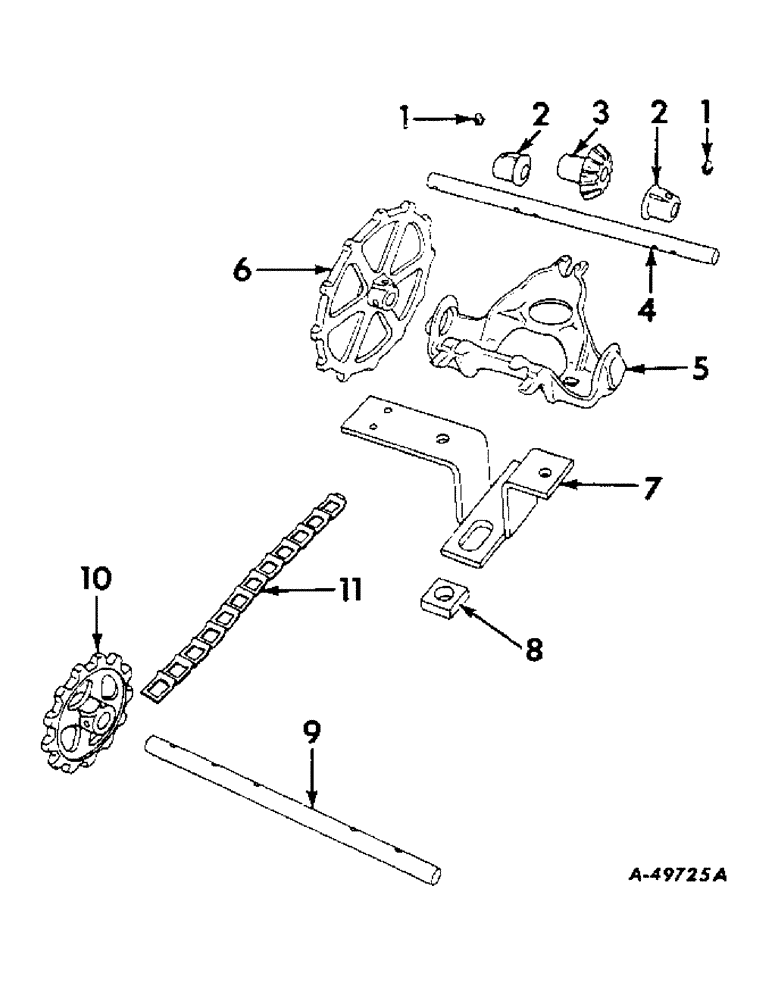

Запчасти Case IH 125 (L-3) - HOPPER BRACKET, PLANTER AND FERTILIZER SHAFT

1

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree elbow lubrication

1шт.

2

PO1818

BUSHING

BEARING, feed shaft

1шт.

3

513998R1

PINION

13 tooth drive

1шт.

PIN, 1/4 x 1-9/16 in. headed

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

4

524951R1

SHAFT, fertilizer feed

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

1шт.

WASHER, 25/32 x 1-1/4 in. x 16 ga

1шт.

5

513999R3

BRACKET

hopper

1шт.

BOLT, 1/2 x 1-1/4 in. crg

2шт.

NUT, 1/2 in.

2шт.

WASHER, 1/2 in. lock

2шт.

6

514267R1

SPROCKET, 24 tooth

1шт.

PIN, 1/4 x 1-9/16 in. headed

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

7

524958R92

SUPPORT, hopper bracket

1шт.

527107R2

SCREW, 7/8-14 x 7 hex-hd cap

2шт.

NUT, 7/8-14 hex jam

2шт.

WASHER, 29/32 x 1-1/2 x 11 ga

2шт.

8

527108R1

SPACER, hopper bracket support

1шт.

9

527106R1

SHAFT, planter feed

1шт.

PIN, 1/4 x 1-9/16 in. headed

1шт.

PIN, 1/8 x 5/8 in. cotter

1шт.

10

PO3215X

SPROCKET ASSY.

SPROCKET, 13 tooth

1шт.

PIN, 1/4 x 1-9/16 in. headed

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

11

CHAIN, drive, use 58 no. 32 steel links from 10 ft. roll no. CS

32шт.
