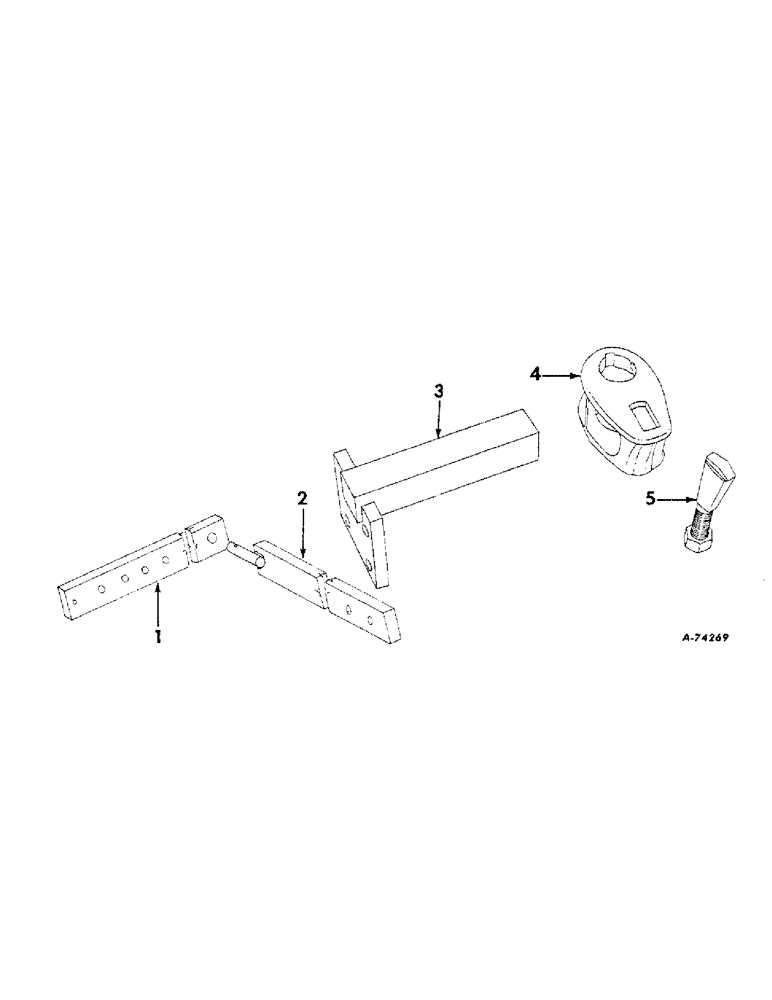

Запчасти Case IH 119 (K-04) - APPLICATOR BAR AND CLAMP

1

472078R1

BAR, tie

3шт.

BOLT, 7/16 x 1-1/2 in. mach

3шт.

NUT, 7/16 in.

3шт.

WASHER, 7/16 in. lock

3шт.

2

472079R11

ANCHOR, tie bar

2шт.

BOLT, 1/2 x 2-1/4 in. mach

4шт.

NUT, 1/2 in.

4шт.

PIN, 1/4 x 1-1/4 in. self-opening

2шт.

WASHER, 1/2 in. lock

4шт.

3

525309R92

BAR, left attaching

1шт.

3

525310R92

BAR, right attaching

1шт.

BOLT, 1/2 x 2-1/4 in. mach

1шт.

NUT, 1/2 in.

1шт.

WASHER, 1/2 in. lock

1шт.

4

511985R2

CLAMP

standard

1шт.

5

511990R11

BOLT

W/NUT, wedge

1шт.

NUT, 5/8 in.

1шт.
