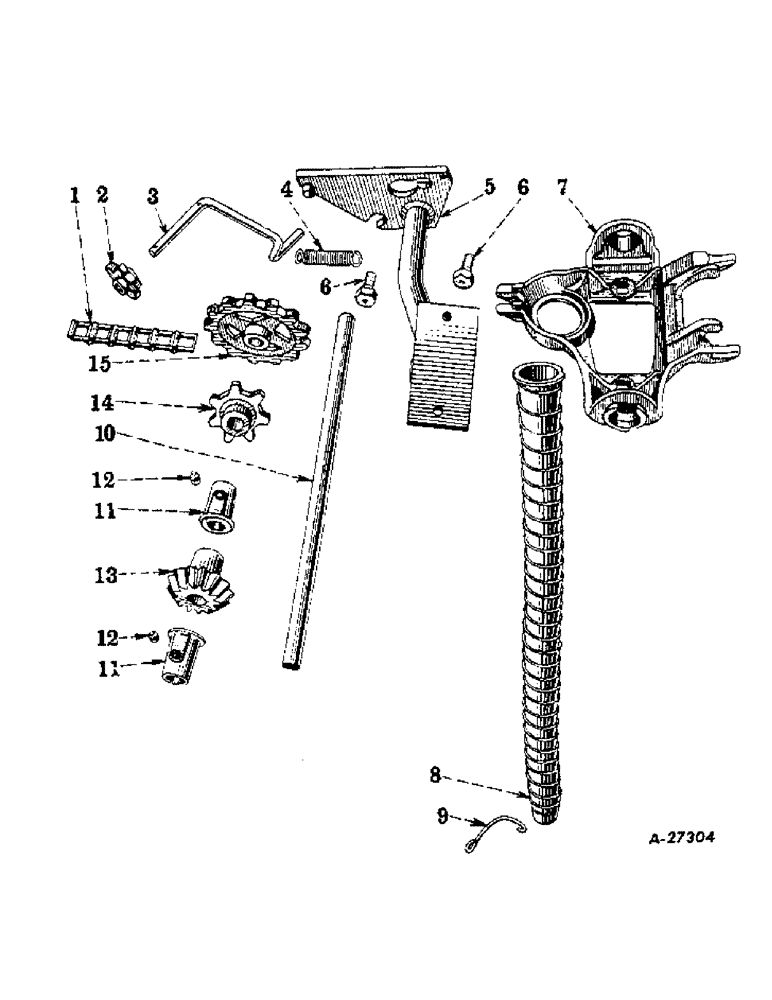

Запчасти Case IH 101 (H-26) - HOPPER BRACKET AND TUBE

1

CHAIN, drive, use 56 No. 32 steel links from 10 ft roll No. CS-32

1шт.

2

1573B

SPROCKET ASSY.

SPROCKET, idler, 5T

1шт.

3

512628R1

ROD

TIGHTENER, chain right

1шт.

PIN, 3/16 x 1 in. self-opening cotter

2шт.

PIN, 1/8 x 1 in. self-opening cotter

1шт.

4

PO16

SPRING

25/32 in. OD, 3-7/16 in. long, 27-1/2 coils

1шт.

5

514012R91

BRACKET, hopper right

1шт.

5

516060R91

BRACKET, hopper right

1шт.

PIN, 3/16 x 1-1/4 in. self-opening cotter

1шт.

6

PO25842A

BOLT

5/8 x 1-1/4 in. conical-hd cap

2шт.

7

513999R3

BRACKET

hopper

1шт.

BOLT, 1/2 x 1-1/4 in. crg

2шт.

WASHER, 1/2 in. lock

2шт.

8

PO28479A

TUBE,1.437" ID x 1.875" OD x 29" L

fertilizer, 29 in. long

1шт.

8

512382R2

TUBE

fertilizer, 32 in. long

1шт.

BOLT, 5/16 x 1 in. crg

1шт.

NUT, 5/16 in. wing

1шт.

WASHER, 11/32 x 3/4 in. x 16 ga

1шт.

9

PO28475

BRACE

CONNECTION, fertilizer tube

1шт.

10

PO28476

ROLLER

SHAFT, feed

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

2шт.

WASHER, 25/32 x 1-1/4 in. x 16 ga

2шт.

11

PO1818

BUSHING

BEARING

1шт.

12

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 in. 65 degree elbow lubrication

1шт.

13

513998R1

PINION

drive, 13T

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

14

PO1763

DRIVE SPROCKET

SPROCKET, 7T

1шт.

15

PO3215X

SPROCKET ASSY.

SPROCKET W/SET SCREW, 13T

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 in. dld-std-hd

1шт.

102894

SET SCREW

3/8 x 3/4 in. cup-pt sq-hd set

1шт.
