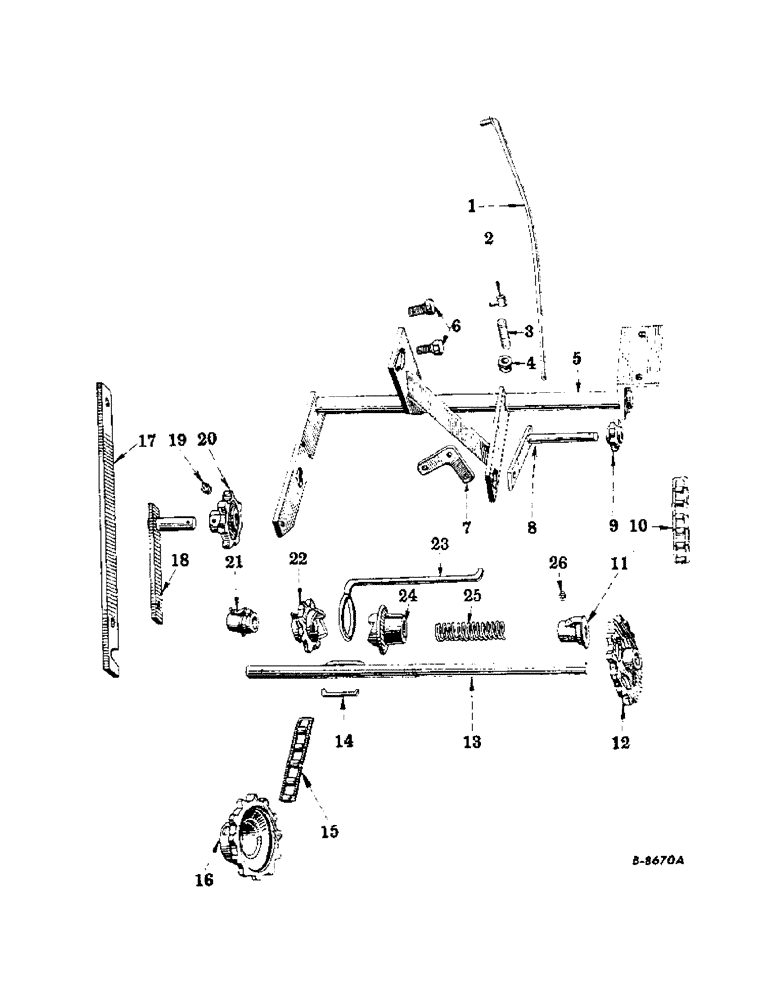

Запчасти Case IH 101 (H-08) - COUNTERSHAFT

1

512648R1

ROD

throw-out

1шт.

512353R1

PIN, quick-attachable cotter

1шт.

2

PO2437

PIVOT

SWIVEL, throw-out rod

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

3

11100D

SPRING

throw-out rod, 5/8 in. OD, lgth, 2-3/4 in., 15 coils

1шт.

4

514547R11

COLLAR CLAMP

COLLAR W/SET SCREW, throw-out rod

1шт.

SCREW, 5/16 x 1/2 in. cup-pt sq-hd set

1шт.

5

512645R92

FRAME, countershaft

1шт.

6

PO25842A

BOLT

5/8 x 1-1/4 in. conical hd cap

2шт.

7

PO27788

BELLCRANK, throw-out rod

1шт.

BOLT, 3/8 x 1 in. mach

1шт.

WASHER, 3/8 in. lock

1шт.

WASHER, 13/32 x 1 in. x 16 ga

1шт.

8

512634R91

TIGHTENER, hopper chain

1шт.

BOLT, 1/2 x 1 in. mach

1шт.

PIN, 3/16 x 1 in. cotter

1шт.

9

PO2859

SPROCKET ASSY.

SPROCKET, hopper chain idler, 5T

1шт.

10

CHAIN, hopper drive, use 56 no. 32 steel links from 10 ft roll no. CS-32

1шт.

11

PO2675

HUB

BEARING, right

1шт.

PIN, 3/16 x 1 in. self-opening cotter

1шт.

12

PO2639BX

SPROCKET ASSY.

SPROCKET W/SET SCREW, hopper chain drive, 12T

1шт.

PIN, 3/16 x 1-3/4 in. self-opening cotter

1шт.

SCREW, 7/16 x 3/4 in. cup-pt sq-hd set

1шт.

13

512646R1

ROD

COUNTERSHAFT

1шт.

PIN, 1/4 x 1-1/4 in. self-opening cotter

2шт.

WASHER, 25/32 x 1-1/4 in. x 16 ga

4шт.

14

PO23196

KEY

countershaft drive clutch

1шт.

15

CHAIN, main drive, use 57 no. 32 steel links from 10 ft roll no. CS-32

1шт.

16

517098R1

SPROCKET ASSY.

SPROCKET, main chain drive, 14T

1шт.

PIN, 1/8 x 3/4 in. self-opening cotter

1шт.

PIN, 5/16 x 2-3/4 in. headed

1шт.

17

515844R2

BAR

BRACKE, countershaft

1шт.

BOLT, 1/2 x 1-1/4 in. mach

1шт.

WASHER, 1/2 in. lock

1шт.

18

518397R91

LEVER

TIGHTENER, main chain

1шт.

BOLT, 1/2 x 1-1/4 in. mach

1шт.

PIN, 3/16 x 1 in. self-opening cotter

1шт.

WASHER, 1/2 in. lock

1шт.

WASHER, 25/32 x 1-1/4 in. x 16 ga

1шт.

19

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , Countershaft left bearing and drive clutch sprocket 1/8"-27 x .66 lg

1шт.

20

PO3089

DRIVE SPROCKET

SPROCKET, main chain diler, 7T

1шт.

21

PO2677

HUB

BEARING, left

1шт.

PIN, 3/16 x 1 in. self-opening cotter

1шт.

22

512161R1

SPROCKET ASSY.

SPROCKET, drive clutch, 7T

1шт.

23

512647R1

ROD

LINK, throw out clutch

1шт.

PIN, 1/8 x 5/8 in. self-opening cotter

1шт.

24

PO2097A

CLUTCH

driving

1шт.

25

PO156

SPRING

drive clutch, 1-1/32 in. OD, 4-1/2 in. long, 14-1/2 coils

1шт.

26

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. drive type straight lubrication, countershaft right bearing and idler sprocket

1шт.
