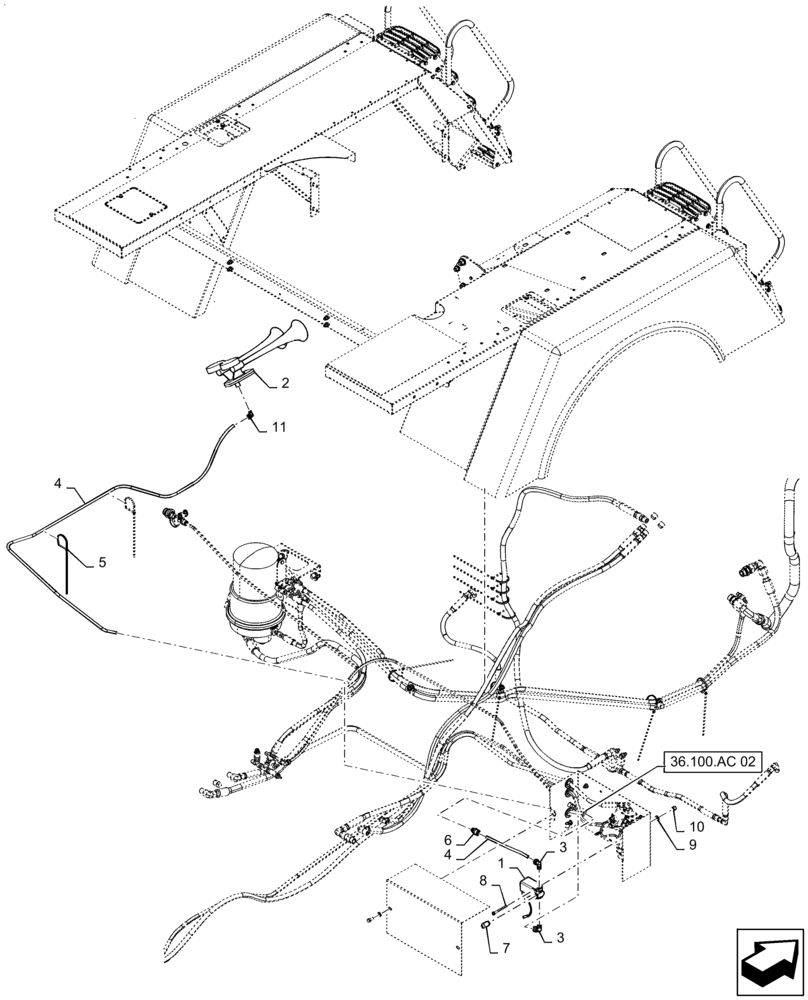

Запчасти Case IH TITAN 4540 (36.200.AB[01]) - AIR HORN, 4 WHL (36) - PNEUMATIC SYSTEM

1

84124892

PNEUMATIC VALVE

Air Solenoid

1шт.

2

87268289

HORN

Air, Fultone, Black

1шт.

3

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

2шт.

4

84422568

TUBE,3/8" X 50' BULK, SAE J844, BLACK

Cut To Required Length

1шт.

5

BN570007

STRAP

1/8" - 4" BND

2шт.

6

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

7

BN23042

MUFFLER

Air Valve, 1/4" NPT

1шт.

8

87343617

SCREW,Phil Pan Hd, M5 x 50mm, Cl 4.8

2шт.

9

BN310265

WASHER

#10, Stainless Steel

2шт.

10

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

2шт.

11

BN2399413

HYD CONNECTOR

Tube

1шт.
