Запчасти Case IH TITAN 4540 (36.100.AD[01]) - AIR DRYER LINES AND MOUNTING, 4 WHL (36) - PNEUMATIC SYSTEM

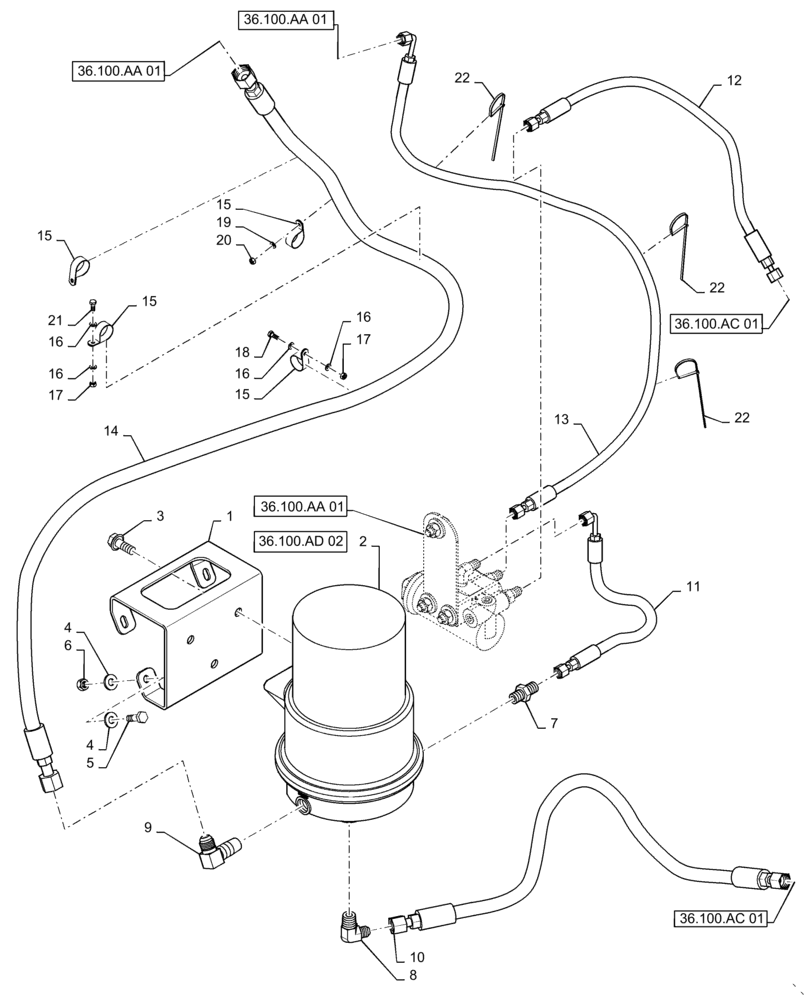

Схема запчастей Case IH TITAN 4540 - (36.100.AD[01]) - AIR DRYER LINES AND MOUNTING, 4 WHL (36) - PNEUMATIC SYSTEM
36.100.ac 01
17
16
16
21
1
36.100.aa 01
15
22
15
11
20
36.100.aa 01
7
15
3
6
18
4
5
8
17
19
16
2
4
15
36.100.ad 02
9
36.100.aa 01
22
22
12
36.100.ac 01
13
16
14
10

Артикул

Название

Примечание

Количество

1

84179919

MOUNT

Air Dryer

1шт.

2

87656542

DEHYDRATOR

Air Dryer Assembly, See 36.100.AD(02) For Service Parts

1шт.

3

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

3шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

5

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

7

BN441005

ADAPTER

Pipe-37, Flare 04-02

1шт.

8

BN2290508

ELBOW

1/2" NPT X 3/4" JIC

1шт.

9

BN2390690

FITTING

Elbow, 90, LG, 1/2" NPT x 7/8" JIC

1шт.

10

87266804

HOSE

Air, 3/4" - 16 Female JIC Swivel x 3/4" - 16 Female JIC Swivel x 1/2" ID X 77" Long, Air Dryer To Rear Port Of Primary Air Tank

1шт.

11

84180315

AIR HOSE

7/16" - 20 Female JIC Swivel x 7/16" - 20 Female JIC Swivel Short Elbow X 1/8" ID x 18" Long, Air Dryer To Governor

1шт.

12

84180316

AIR HOSE,6.30 mm ID x 1219.00 mm, SAE J1402

7/16" - 20 Female JIC Swivel x 7/16" - 20 Female JIC Swivel x 1/8" ID X 48" Long, C 1 Governor Port To Primary Air Tank, Second Port

1шт.

13

87266805

HOSE

Air, 7/16" - 20 Female JIC Swivel X 7/16" - 20 Female JIC Swivel Short Elbow X 1/8" ID X 107" Long Air Compressor Control Port to Governor UNL 2D Top Port

1шт.

14

84180317

AIR HOSE,16.00 mm ID x 3606.00 mm, SAE 100R14A

7/8" - 14 Female JIC Swivel x 7/8" - 14 Female JIC Swivel x 5/8" ID X 142" Long, SS Braid, Air Compressor Outlet To Air Dryer

1шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

4шт.

16

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

17

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

18

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

19

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

1шт.

20

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

1шт.

21

86980382

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

M8 - 1.25 x 35, 8.8, DOR

1шт.

22

BN570007

STRAP

Black, 14-1/2" Long

4шт.

Выбрано товаров: 22
