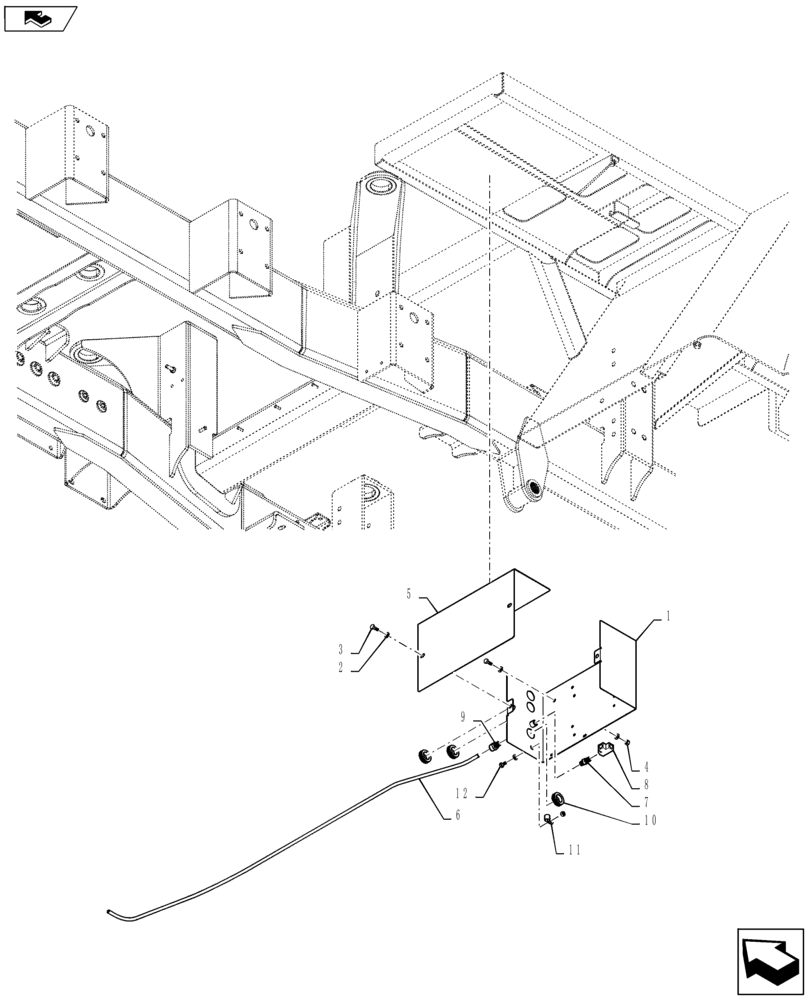

Запчасти Case IH TITAN 4540 (36.100.AC[02]) - AIR VALVE SUPPLY BOX (36) - PNEUMATIC SYSTEM

1

84126049

BOX

Air Supply

1шт.

2

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

7шт.

3

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

4

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

5

87269636

COVER

Air Solenoid Valve Box

1шт.

6

87266826

TUBE,0.375" DIA

Air, 3/8" x 73", Black

1шт.

7

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

1шт.

8

217-1161

TEE,1/4"-18 Female

1шт.

9

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

10

BN2290753

GROMMET

7/8" Hole

3шт.

11

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

12

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.
