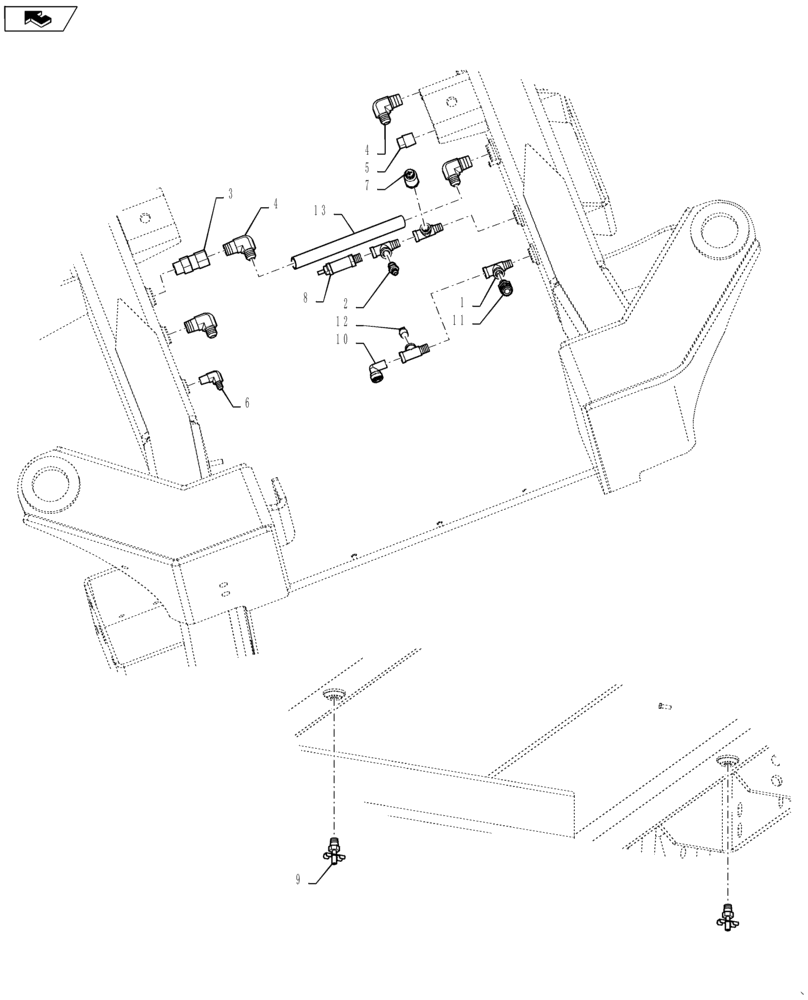

Запчасти Case IH TITAN 4540 (36.100.AC[01]) - AIR TANK FITTINGS (36) - PNEUMATIC SYSTEM

1

BN2295095

TEE

1/4"-18 NPTF

4шт.

2

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

1шт.

3

BN2295247

CHECK VALVE

Air

1шт.

4

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

4шт.

5

217-517

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

1шт.

6

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

1шт.

7

87389824

SENSOR

Air Tank Pressure, 1-130 PSI

1шт.

8

BN2290667

HYDRAULIC VALVE

Safety

1шт.

9

217-92

COCK

Drain

2шт.

10

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

11

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

12

217-504

DRAIN PLUG,Hex Hd, 1/4"-18, NPTF

1шт.

13

87267667

HOSE

3/4" -16 JIC x 3/4" -16 JIC x 1/2" ID x 70" Long, Air Tank Pressure Balance Line

1шт.
