Запчасти Case IH TITAN 4540 (36.100.AA[01]) - AIR COMPRESSOR GOVERNOR, 4 WHL (36) - PNEUMATIC SYSTEM

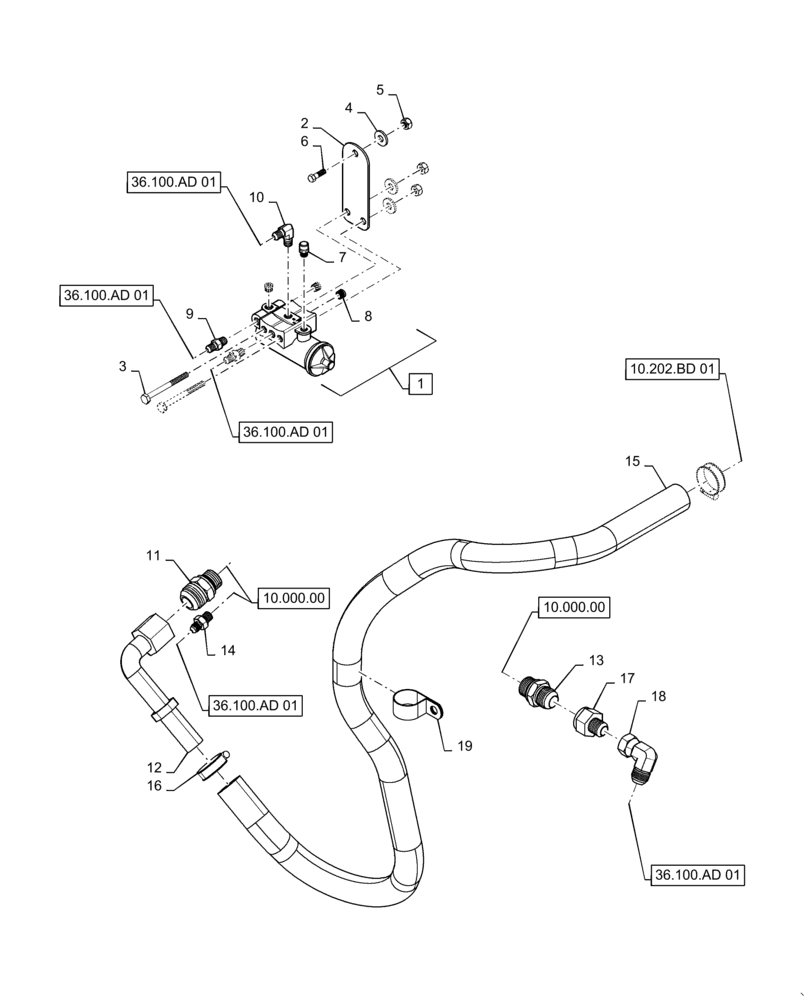

Схема запчастей Case IH TITAN 4540 - (36.100.AA[01]) - AIR COMPRESSOR GOVERNOR, 4 WHL (36) - PNEUMATIC SYSTEM
16
14
2
18
12
10.000.00
10.202.bd 01
17
19
36.100.ad 01
36.100.ad 01
15
10
9
4
7
36.100.ad 01
13
8
6
11
5
36.100.ad 01
3
1
10.000.00
36.100.ad 01

Артикул

Название

Примечание

Количество

1

BN2290733

GOVERNOR

Air, Incl 8, 20

1шт.

2

84179917

MOUNT

Governor

1шт.

3

87341844

BOLT,Hex, M8 x 75mm, Cl 8.8

M8 x 75, 8.8, DOR

2шт.

4

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

5

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

6

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

7

BN2293227

BREATHER

1/8" NPT

1шт.

8

BN1666155

PLUG

Allen Head, 1/8"

3шт.

9

BN441005

ADAPTER

Pipe, 37 Flare, 04-02

2шт.

10

BN2290148

ELBOW

Elbow, 37 Flare, 1/4" Tube x 1/8" NPTF

1шт.

11

84175115

ADAPTER

M26 - 1.5 x - 16 MJIC

1шт.

12

84175116

FITTING

16 - 16FJX - 90° Short

1шт.

13

84173221

ADAPTER

1-1/16" - 12 JIC x M26-1.5 ORB

1шт.

14

84173220

ADAPTER

7/16" - 20 JIC x M12-1.5 ORB

1шт.

15

84325541

HYDRAULIC HOSE

1" ID, Cut To 51" Long

1шт.

16

BN310447

HOSE CLAMP

#20, 304 SS

2шт.

17

87301344

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

1шт.

18

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

19

86639002

CLAMP,34.9mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

20

BN2390706

GASKET

Governor, Not Illustrated

1шт.

Выбрано товаров: 20
