Запчасти Case IH TITAN 4540 (33.204.AD[01]) - FRONT AXLE BRAKE ASSEMBLY (33) - BRAKES & CONTROLS

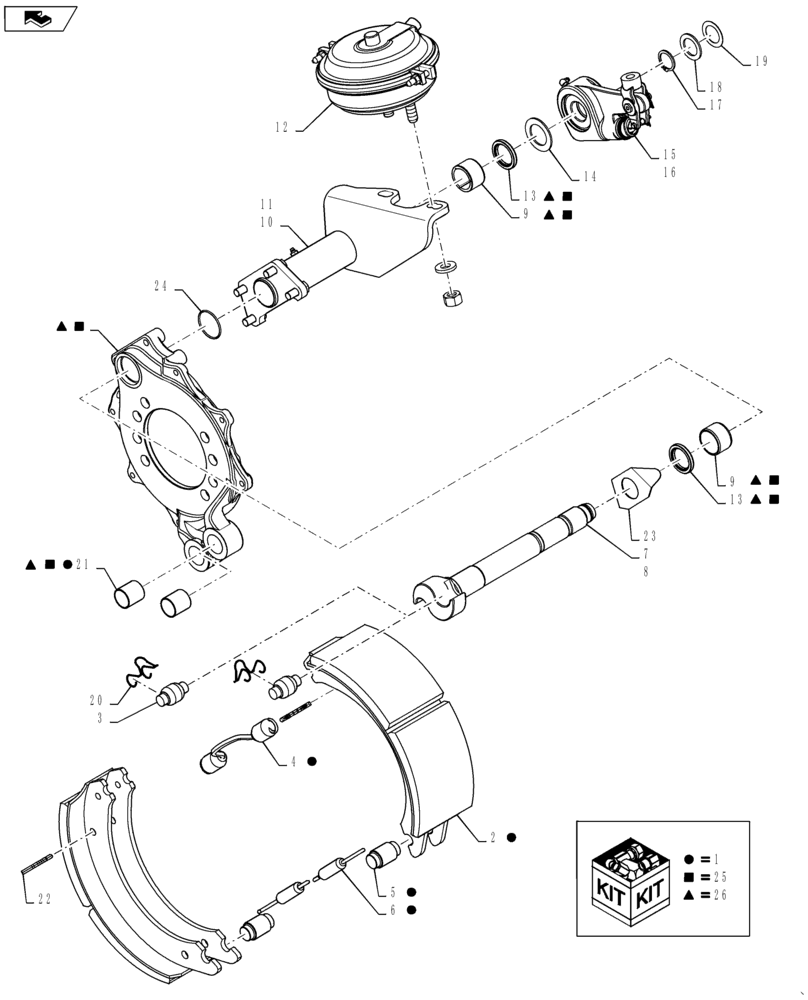

Схема запчастей Case IH TITAN 4540 - (33.204.AD[01]) - FRONT AXLE BRAKE ASSEMBLY (33) - BRAKES & CONTROLS
26
10
26
25
18
17
25
16
21
22
25
25
15
13
1
25
23
26
4
14
9
25
7
5
25
6
26
26
2
1
12
1
26
20
9
24
1
3
1
8
11
13
19
1
26
26
1
25

Артикул

Название

Примечание

Количество

1

84181750

REPAIR KIT

Brake, Major, Includes Ref 2, 4 - 6, And 21

2шт.

2

84181515

SHOE

Assembly, With Lining & Roller

2шт.

3

84181455

ROLLER

Brake Shoe

4шт.

4

84181457

SPRING

Shoe Return

2шт.

5

84181458

PIN

Anchor, Brake Shoe

4шт.

6

84181460

SPRING

Retaining

2шт.

7

84181056

CAMSHAFT

Brake, LH

1шт.

8

84181058

CAMSHAFT

Brake, RH

1шт.

9

84175112

BUSHING

Brake Spider

4шт.

10

84181008

BRACKET

Anchor, LH Brake Slacker

1шт.

11

84181009

BRACKET

Anchor, RH Brake Slacker

1шт.

12

84181055

CHAMBER

Brake

2шт.

13

84175120

SEAL

Brake Spider

4шт.

14

84181334

WASHER

Camshaft Spacer

2шт.

15

84181052

ADJUSTER

Slack, Auto

2шт.

16

84185320

INSTRUCTION

Auto Slack Adjustor Install

1шт.

17

84181337

WASHER

Spacer

4шт.

18

84181338

WASHER

Spacer

4шт.

19

84181341

SNAP RING

Brake Camshaft

2шт.

20

84181461

RETAINER

Roller

4шт.

21

84180993

BUSHING

Anchor Pin

4шт.

22

84181462

PIN

Spring

4шт.

23

84175272

WASHER

Brake Camhead

2шт.

24

84175121

O-RING

Camshaft

2шт.

25

84179186

SPIDER

Assembly, RH Brake, Includes Ref 9, 13, 21

1шт.

26

84178287

SPIDER

Assembly, LH Brake, Includes Ref 9, 13, 21

1шт.

Выбрано товаров: 26
