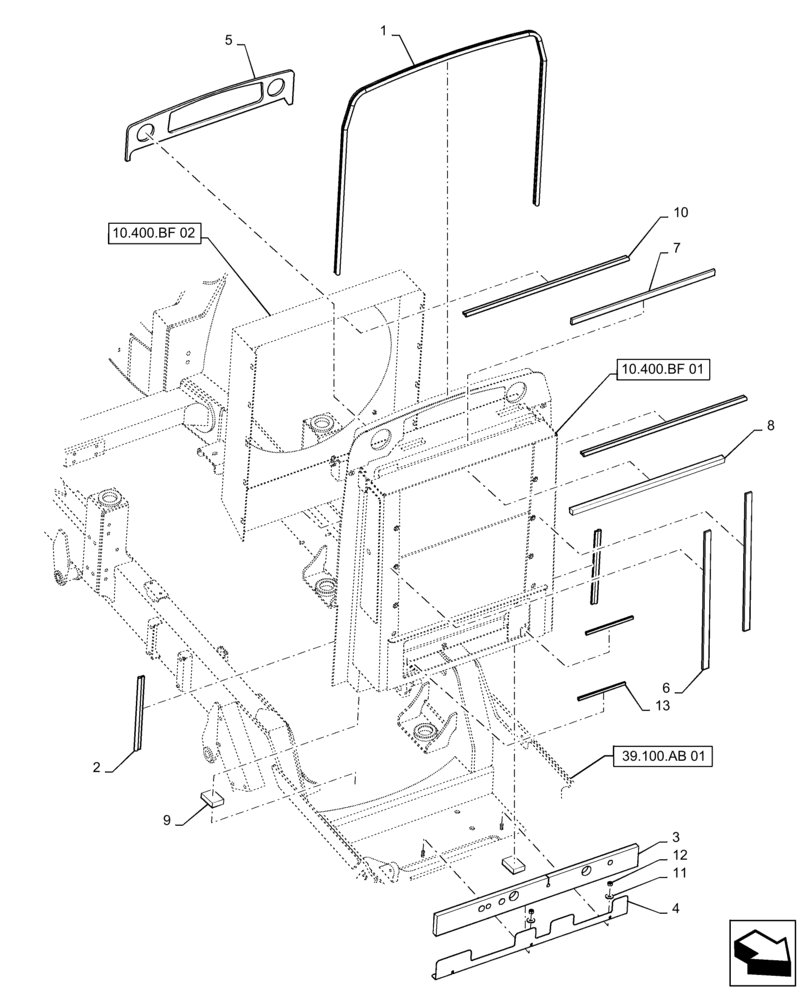

Запчасти Case IH TITAN 4540 (10.400.BF[03]) - RADIATOR, BAFFLING (10) - ENGINE

1

369741A1

RUBBER SEAL

Bulb, Hood

1шт.

2

84226306

SEAL

Bulb, Lower Radiator

2шт.

3

84183906

SEAL

Foam, Lower Radiator

1шт.

4

344163A1

BRACKET, SUPPORTING

Foam Seal, Radiator

1шт.

5

84172658

SEAL

Foam, Top Radiator

1шт.

6

336686A1

SEAL

Foam Seal

2шт.

7

336684A1

SEAL

Foam

1шт.

8

84226304

SEAL

Foam, CAC / Radiator

1шт.

9

87266874

SEAL

Foam, Corner Radiator

2шт.

10

84226302

SEAL

Top Radiator

2шт.

11

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

12

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

3шт.

13

BN303902

SOFT TRIM

Edge Trim

2шт.
