Запчасти Case IH TITAN 4540 (10.216.AI[01]) - FUEL TANK MOUNTING PARTS, AND BREATHER (10) - ENGINE

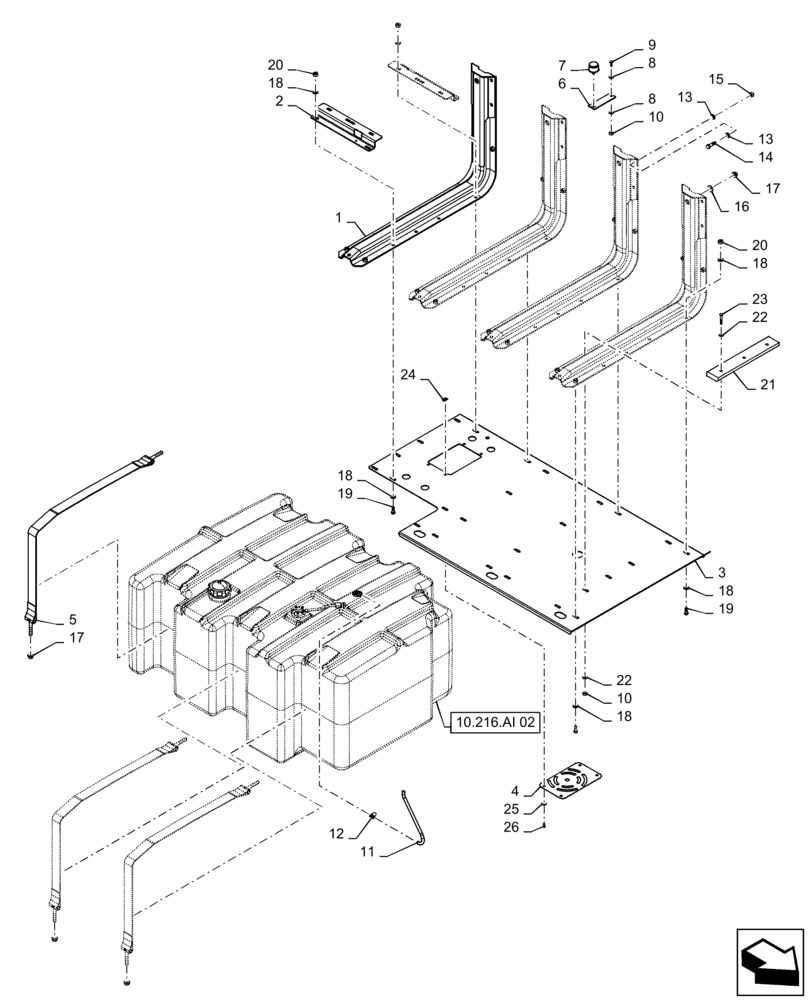

Схема запчастей Case IH TITAN 4540 - (10.216.AI[01]) - FUEL TANK MOUNTING PARTS, AND BREATHER (10) - ENGINE
10
10.216.ai 02
19
6
17
3
18
20
13
5
2
17
12
10
15
18
14
18
4
22
20
26
18
8
13
8
7
18
19
25
22
9
16
24
23
11
1
21

Артикул

Название

Примечание

Количество

1

47402369

BRACKET

Fuel Tank

4шт.

2

47666298

SUPPORT

Lower Def Tank

4шт.

3

47402604

PLATE

Skid, Fuel Tank

1шт.

4

47402698

COVER

Access, Def Tank

1шт.

5

84369529

STRAP

Fuel, Def Tank

3шт.

6

BN324416

BRACKET

Fuel Tank Vent

1шт.

7

86999949

FUEL FILTER

Vent

1шт.

8

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

9

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

10

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

11

BN322382

FUEL HOSE,6.40 mm ID x 304.80 mm, SAE 30R6, SAE 30R7, SAE J30

1шт.

12

87487837

CLAMP,0.50" - 0.91"

Hose Type F #08, SST 300 SER

2шт.

13

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

32шт.

14

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

16шт.

15

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

16шт.

16

87310599

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

.500 x 1.250 x .083", CST DOR

3шт.

17

87343935

FLANGE NUT

.500UNC GR G DOR

6шт.

18

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

34шт.

19

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

20шт.

20

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

14шт.

21

84374149

SPACER

Fuel Tank

1шт.

22

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

23

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

3шт.

24

86521425

SPRING NUT,Tinn, U, 1/4"-20

4шт.

25

BN50138

WASHER,1/4", SS

4шт.

26

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

4шт.

Выбрано товаров: 26
