(90.160.BE[01]) - SEAT BASE COWLING, AND HARNESS SUPPORT

Запчасти Case IH TITAN 4540 (90.160.BE[01]) - SEAT BASE COWLING, AND HARNESS SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

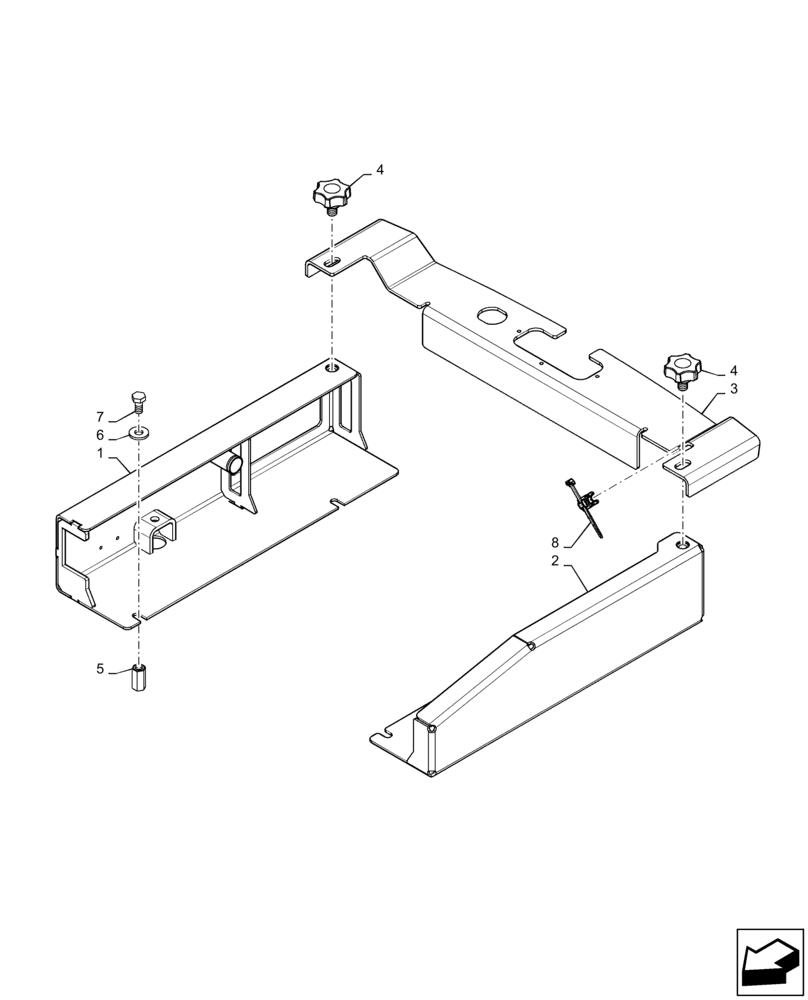

Схема запчастей Case IH TITAN 4540 - (90.160.BE[01]) - SEAT BASE COWLING, AND HARNESS SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
8
6
4
7
2
4
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47743254

FRAME

Traction Control

1шт.

2

47743267

FRAME

Seat Cowling

1шт.

3

47743277

SUPPORT

Wire Harness

1шт.

4

394133A1

KNOB

Battery Cover

2шт.

5

84181073

NUT

Coupling

4шт.

6

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

7

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

8

47391607

FASTENER

Edge Clip

1шт.
