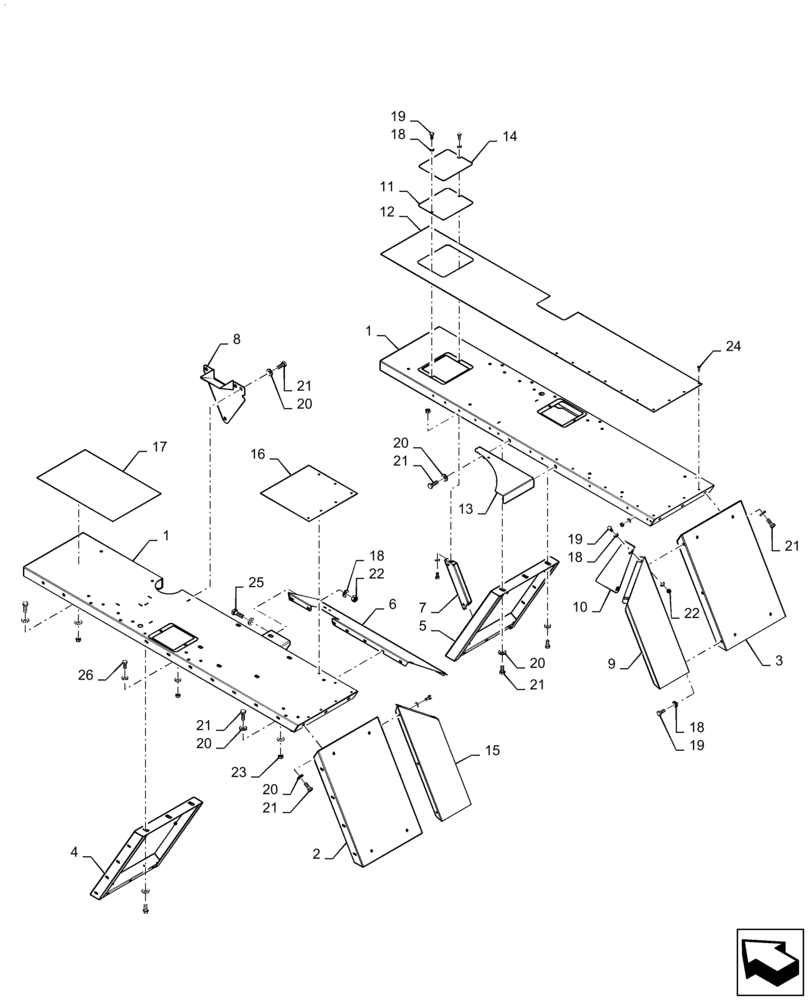

Запчасти Case IH TITAN 4540 (90.118.CB[01]) - WALKWAY, 4 WHEEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47491427

WALKWAY

4 Wheel Floater

1шт.

2

47600547

PLATE

Splash Fender, CS PTD

1шт.

3

342883A1

PLATE

FR Splash, RS

1шт.

4

342949A1

PLATE

RR Splash, CS

1шт.

5

342948A1

PLATE

RR, Splash, RS

1шт.

6

47490106

PANEL

Front Filler, CS

1шт.

7

343807A1

SUPPORT

Rear Splash Plate

2шт.

8

47452152

SHIELD

Exhaust

1шт.

9

343811A1

PANEL

Front Filler, RS

1шт.

10

342959A1

PANEL

Front Filler, RS

1шт.

11

344095A1

COVER

Hydraulic Filiter Access

1шт.

12

344360A1

MAT

Walway, RS

1шт.

13

342960A1

PANEL

Rear Filling

1шт.

14

344359A1

MAT

Oil Tank Cover

1шт.

15

343812A1

PANEL

Front Filler, CS

1шт.

16

47494968

FLOOR MAT

Walkway, Front, CS

1шт.

17

47452159

FLOOR MAT

Walkway, Rear, CS

1шт.

18

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

45шт.

19

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

24шт.

20

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

58шт.

21

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

37шт.

22

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

18шт.

23

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

18шт.

24

BN2394894

RIVET

16шт.

25

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

26

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.
