(90.118.AX[01]) - HANDRAIL, USED WITH 810 FLEX-AIR SYSTEM, 4040, 4540

Запчасти Case IH TITAN 4540 (90.118.AX[01]) - HANDRAIL, USED WITH 810 FLEX-AIR SYSTEM, 4040, 4540 (90) - PLATFORM, CAB, BODYWORK AND DECALS

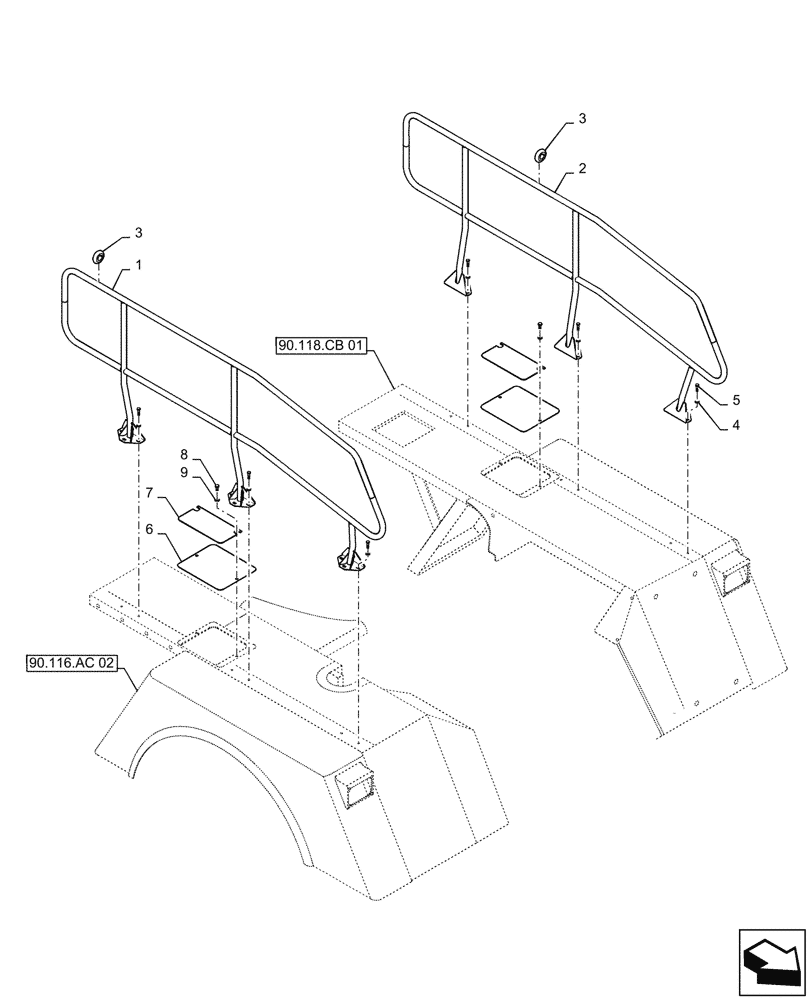

Схема запчастей Case IH TITAN 4540 - (90.118.AX[01]) - HANDRAIL, USED WITH 810 FLEX-AIR SYSTEM, 4040, 4540 (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.116.ac 02
1
8
9
5
6
7
3
4
2
3
90.118.cb 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87267447

HANDRAIL

RH Side

1шт.

2

87267446

HANDRAIL

LH Side

1шт.

3

87267174

BUMPER

Tubular, Door Stop

2шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

18шт.

5

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

18шт.

6

344098A1

COVER

Cradle Access

2шт.

7

344358A1

MAT

Cradle Cover

2шт.

8

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

9

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

4шт.
