Запчасти Case IH TITAN 4540 (90.118.AE[01]) - LADDER, 4040, 4540 (90) - PLATFORM, CAB, BODYWORK AND DECALS

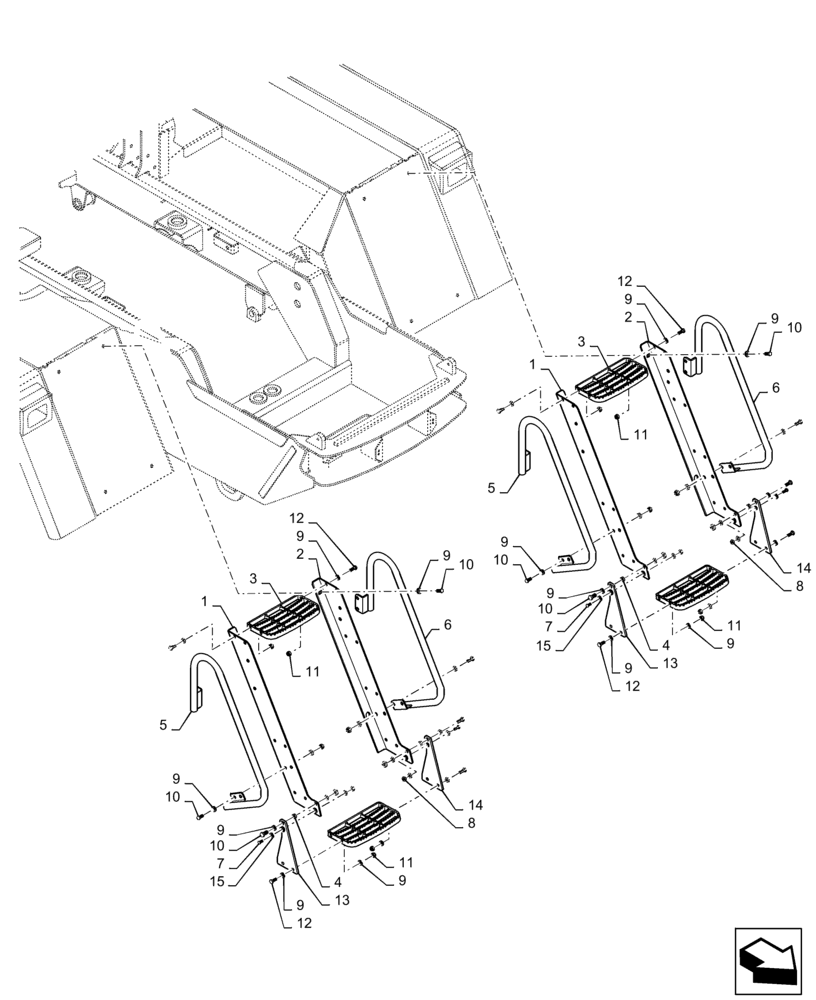

Схема запчастей Case IH TITAN 4540 - (90.118.AE[01]) - LADDER, 4040, 4540 (90) - PLATFORM, CAB, BODYWORK AND DECALS
15
9
10
7
8
9
3
4
8
11
9
9
4
12
13
9
9
9
9
9
10
11
13
9
7
6
12
11
11
12
5
1
14
10
10
9
12
5
6
10
1
2
14
3
10
2
9
15

Артикул

Название

Примечание

Количество

1

87267055

RAIL ASSY.

Right Hand

2шт.

2

87267056

RAIL ASSY.

Left Hand

2шт.

3

87270245

STEP

Black Aluminum

10шт.

4

343810A1

SPACER

Step Extension Hinge

4шт.

5

344137A1

HANDRAIL

Ladder

2шт.

6

344138A1

HANDRAIL

Ladder

2шт.

7

86980362

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

4шт.

8

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

9

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

96шт.

10

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

28шт.

11

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

60шт.

12

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

40шт.

13

87268760

SIDE RAIL

Step Extension, Right Hand

2шт.

14

87268761

SIDE RAIL

Step Extension, Left Hand

2шт.

15

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

8шт.

Выбрано товаров: 15
