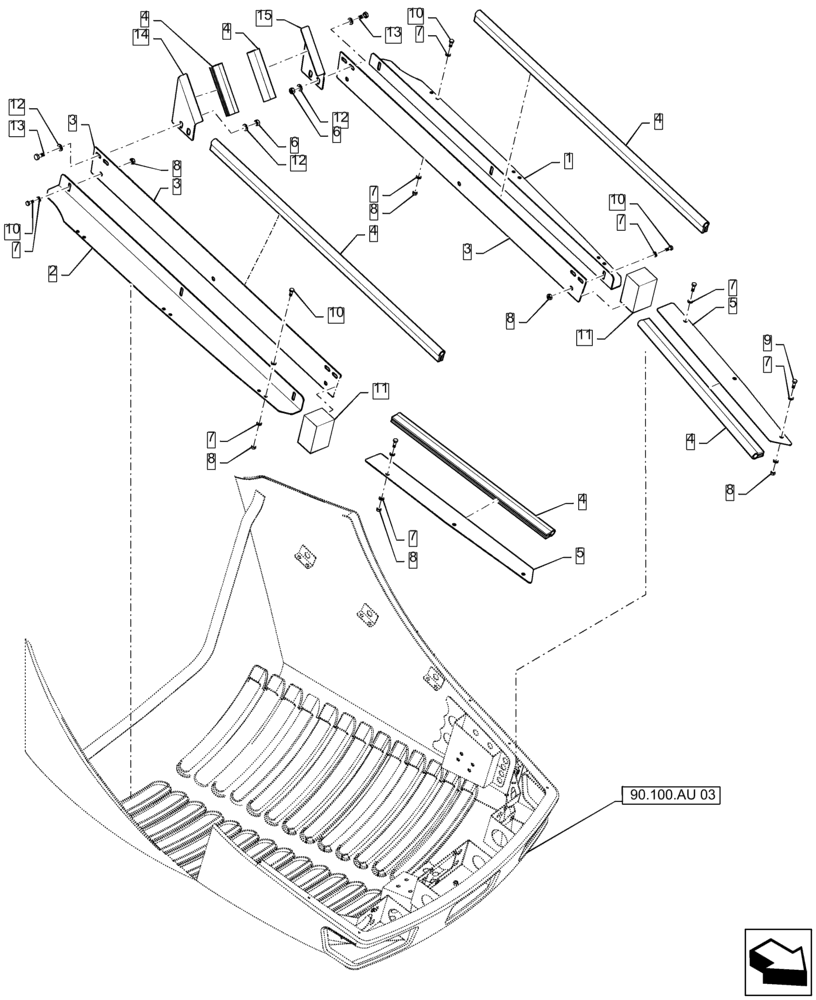

Запчасти Case IH TITAN 4540 (90.100.AU[05]) - BAFFLE GROUP, HOOD/AIR SCREEN, 3040, 3540 (90) - PLATFORM, CAB, BODYWORK AND DECALS
![Схема запчастей Case IH TITAN 4540 - (90.100.AU[05]) - BAFFLE GROUP, HOOD/AIR SCREEN, 3040, 3540 (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/caseih/5293145.png)
1
13
5
14
8
15
7
13
3
10
2
4
7
9
8
12
7
4
6
10
8
8
7
12
10
6
8
3
5
4
4
7
7
7
12
11
10
3
11
4
4
8
7
90.100.au 03
№
Артикул
Название
Примечание
Количество
1
87268825
BRACKET, SUPPORTING
Seal Plate, Curb Side
1шт.
2
87268824
BRACKET, SUPPORTING
Seal Plate, Road Side
1шт.
3
87268823
MOUNTING PLATE
Hood Seal
2шт.
4
F43117X
SEAL
Hood Seal, Bulk, Cut To Length
1шт.
5
87267465
PLATE
Side Seal
2шт.
8
86980513
NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR
18шт.
9
86980360
BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd
6шт.
10
86980359
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8
18шт.
11
87268297
SEAL
Hood, Foam
2шт.
12
87529315
WASHER,9mm ID x 17mm OD x 2mm Thk
9 x 17 x 2 mm, HDN, DOR
8шт.
13
86980379
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
4шт.
14
87269593
PLATE
Hood Seal
1шт.
15
87269592
PLATE
Hood Seal
1шт.
Выбрано товаров: 15
