(90.100.AU[04]) - AIR SCREEN PACKAGE, 3040, 3540

Запчасти Case IH TITAN 4540 (90.100.AU[04]) - AIR SCREEN PACKAGE, 3040, 3540 (90) - PLATFORM, CAB, BODYWORK AND DECALS

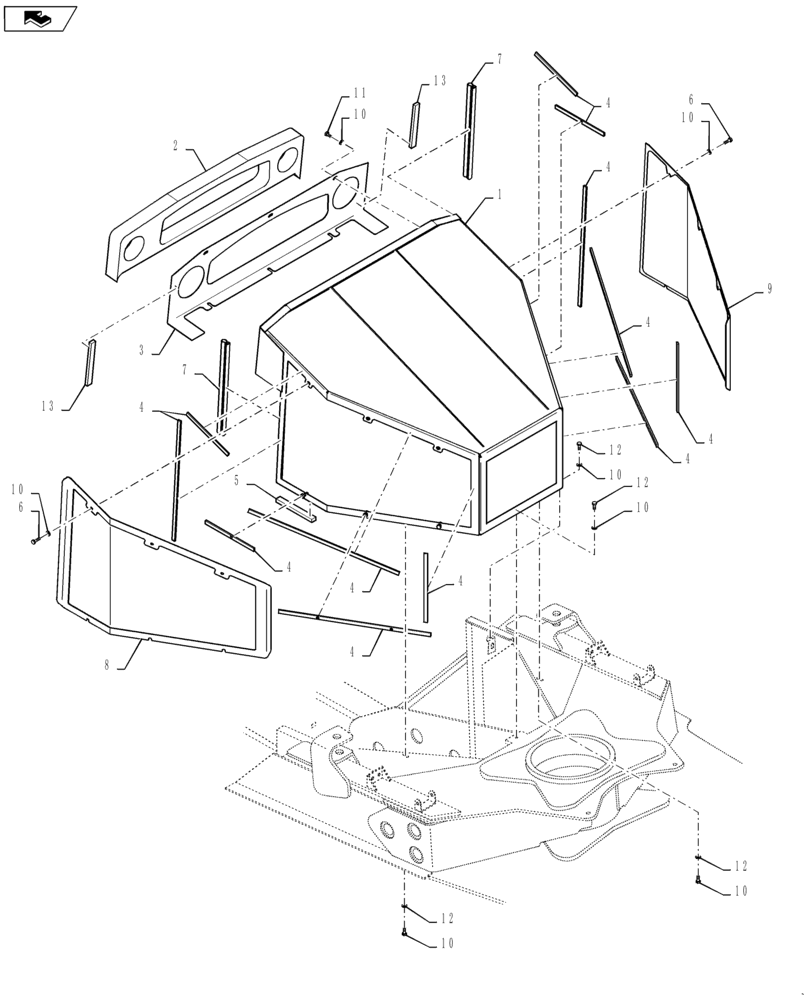

Схема запчастей Case IH TITAN 4540 - (90.100.AU[04]) - AIR SCREEN PACKAGE, 3040, 3540 (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
13
10
12
7
6
12
4
4
4
10
10
12
3
10
4
11
4
10
8
2
9
4
5
13
4
4
1
4
12
4
7
6
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

342420A1

SCREEN

Air, Sealed

1шт.

2

84579249

SEAL

Foam, CAC/Hood

1шт.

3

84158066

PLATE

Rear Panel

1шт.

4

BN326049

FOAM

EPDM, Screen Top, Front, Side, Rear, Bulk, Cut To Length

1шт.

5

87598193

SEAL

Air Screen

2шт.

6

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

7

90-6833T1

RUBBER SEAL

Clip On Bulb, Bulk, Cut To Length

2шт.

8

86986473

SCREEN

Curb Side

1шт.

9

86986474

SCREEN

Road Side

1шт.

10

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

14шт.

11

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

12

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

13

BN326049

FOAM

Screen, Lower, Rear Panel, Bulk, Cut To 7-7/8" Long

1шт.
