Запчасти Case IH TITAN 4540 (90.100.AJ[01]) - CAB SKIRT, HEAT SHIELD (90) - PLATFORM, CAB, BODYWORK AND DECALS

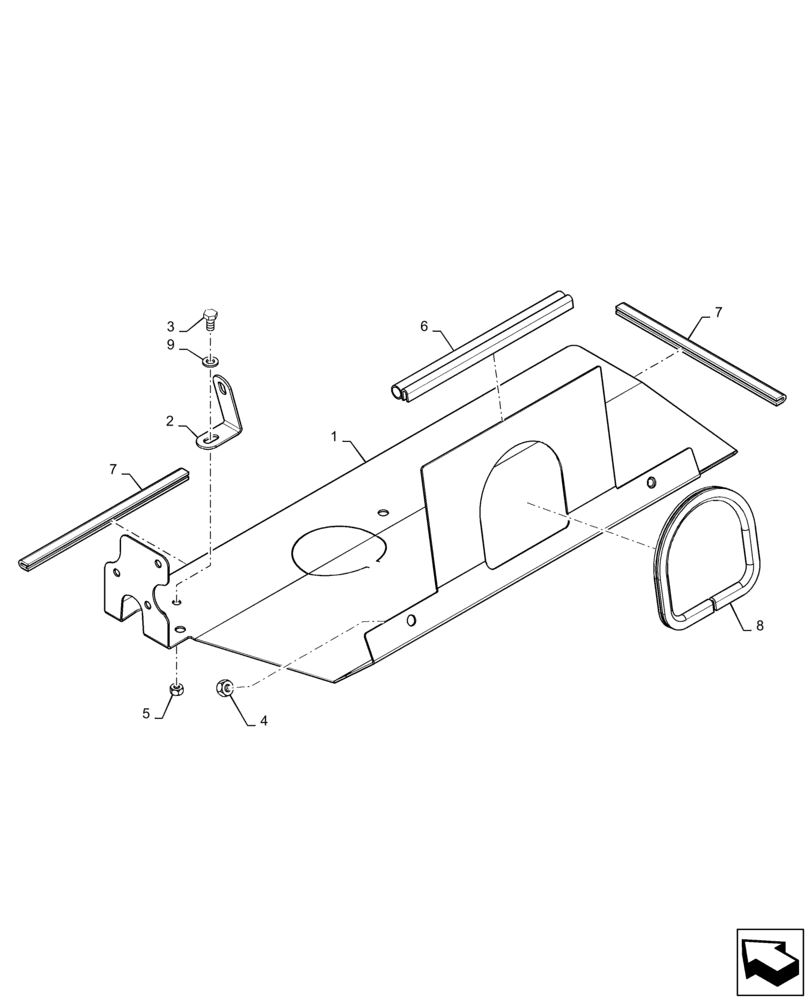

Схема запчастей Case IH TITAN 4540 - (90.100.AJ[01]) - CAB SKIRT, HEAT SHIELD (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
9
7
8
5
3
2
6
7
1

Артикул

Название

Примечание

Количество

1

47450630

SHIELD

Heat, Cab Skirt

1шт.

2

342423A1

BRACKET, SUPPORTING

Heat Shield

2шт.

3

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

5

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

6

87266958

RUBBER SEAL

Clip On

1шт.

7

BN303902

SOFT TRIM

Regular

2шт.

8

84568819

TRIM

Edge, .032 - .125 Grip x 444L

1шт.

9

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

Выбрано товаров: 9
