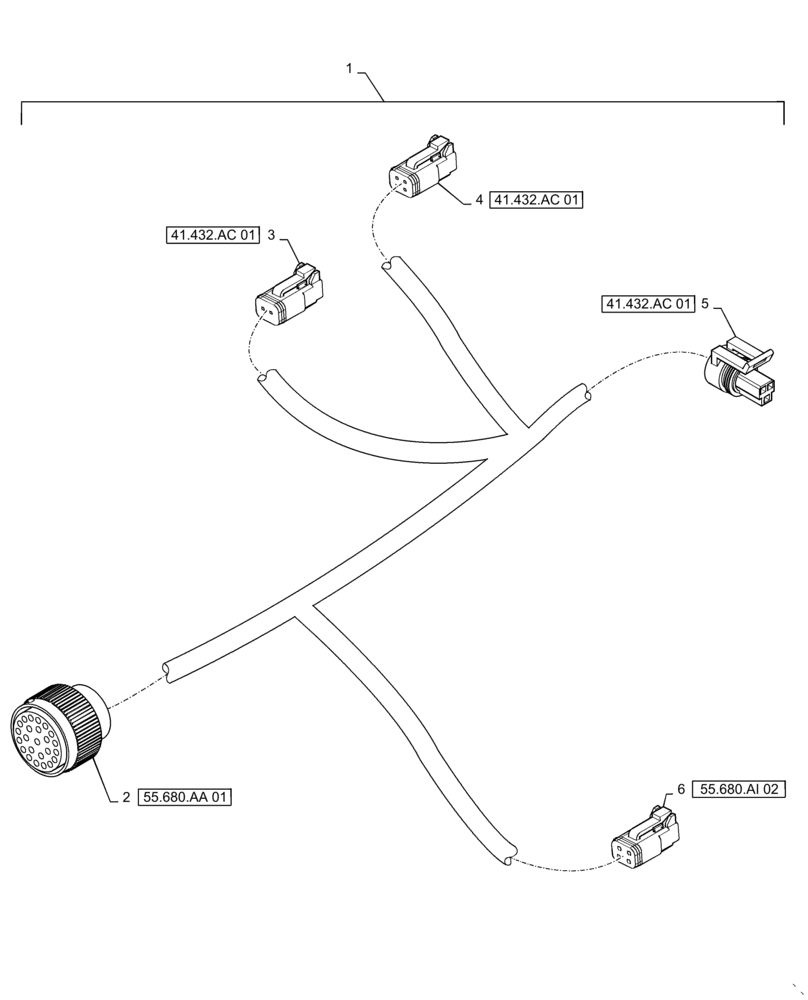

Запчасти Case IH TITAN 4540 (55.680.AA[03]) - AUTOGUIDANCE FRAME HARNESS (55) - ELECTRICAL SYSTEMS

1

84572476

HARNESS

Autoguidance, Frame, Complete, Incl 2 - 6

1шт.

2

381150A1

CONNECTOR, ELEC

Female, 23 Pole, Cab Bulkhead Interface, XB-07F

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female, Nickel, Cab Bulkhead Interface, XB-07F

13шт.

2

84068583

PLUG,12 - 16 Ga, White

Sealing, White, Cab Bulkhead Interface, XB-07F

10шт.

3

87695582

ELEC CONNECTOR,Female, 2 Pole

Autoguidance Override Valve, X-713F

1шт.

3

87695649

ELEC CONNECTOR,Locking, Green

Wedge Lock, 2 Way, Autoguidance Override Valve, X-713F

1шт.

3

87695652

PLUG,12 - 16 Ga, White

Sealing, White, Autoguidance Override Valve, X-713F

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female, Nickel, Autoguidance Override Valve, X-713F

2шт.

4

87694153

CONTACT HOUSING,Female, 4 Cavities

Auto Steer Valve, X-714F

1шт.

4

87694146

ELEC CONNECTOR,Locking, Green

Wedge Lock, 4 Way, Auto Steer Valve, X-714F

1шт.

4

87695652

PLUG,12 - 16 Ga, White

Sealing, White, Auto Steer Valve, X-714F

2шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Female, Nickel, Auto Steer Valve, X-714F

2шт.

5

87692837

WIRE CONNECTOR,Female, 3 Pole

Pressure Switch, X-715F

1шт.

5

87689636

PLUG,Red, Taxi Seal Connector Cavity

Cavity, Red, Pressure Switch, X-715F

1шт.

5

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Tin, Pressure Switch, X-715F

2шт.

6

277904A1

ELEC CONNECTOR,Female, 4 Pin

Steering Angle Sensor, X-716F

1шт.

6

279794A1

STOP LOCK,Locking, Orange

Wedge Lock, 4 Way, Steering Angle Sensor, X-716F

1шт.

6

87698572

PLUG,20 Ga, Red

Sealing, Red, Steering Angle Sensor, X-716F

1шт.

6

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Female, Nickel, Steering Angle Sensor, X-716F

3шт.
