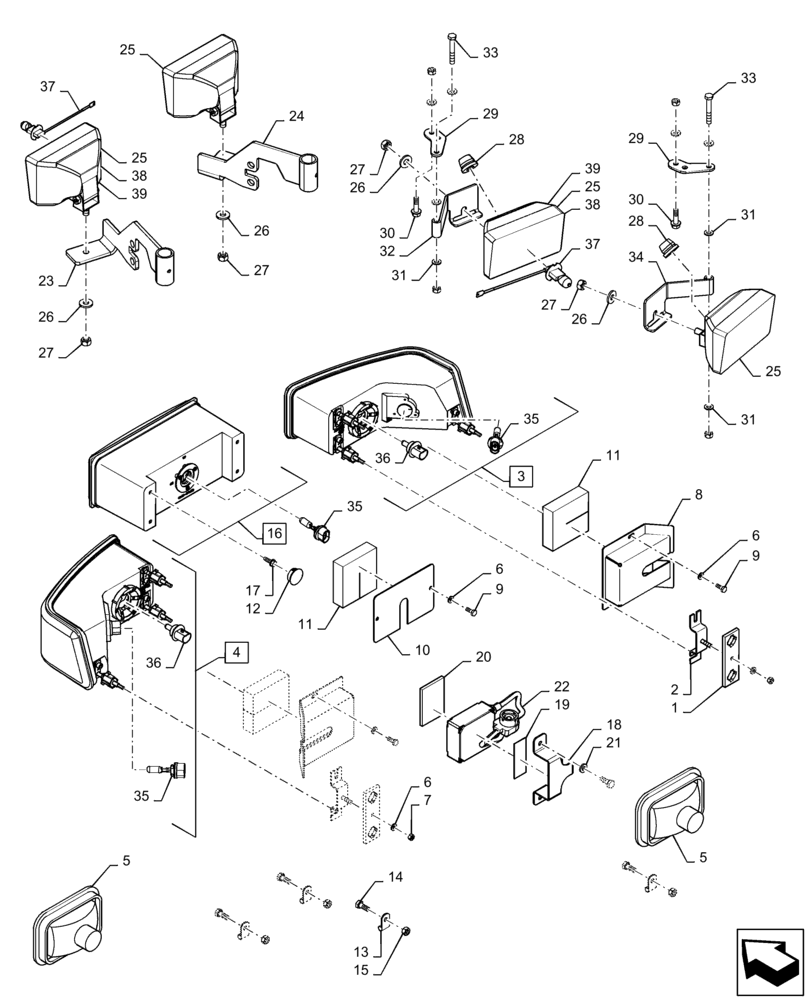

Запчасти Case IH TITAN 4540 (55.404.AQ[04]) - STANDARD FRONT LIGHTS WITH OPTIONAL CENTER HID LIGHT, 4 WHL (55) - ELECTRICAL SYSTEMS

1

391666A1

SUPPORT

Light

4шт.

2

84261677

MOUNT

Headlight Assembly

4шт.

3

232448A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

RH, With RH DIP, Incl 35 and 36

1шт.

4

232449A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

LH, With RH DIP, Incl 35 and 36

1шт.

5

86986699

LIGHT

Park/Turn

2шт.

6

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

10шт.

7

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

8

87267061

COVER ASSY

Headlight

2шт.

9

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

6шт.

10

87267209

COVER

Fieldlight Access

1шт.

11

87267208

SEAL

Headlight Seal, Foam

3шт.

12

353-426

PLUG,1" Hole, Nylon

4шт.

13

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

Holds Frame Harness In Place

8шт.

14

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

15

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

8шт.

16

232455A2

WORK LAMP,HID, 12V, 35W, Clear

Center Headlight, HID - Includes Bulb (NSS due to cost)

1шт.

17

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

4шт.

18

333645A1

CLAMP

HID Ballast Hold Down

1шт.

19

333644A1

GASKET

Foam, HID Clamp

1шт.

20

333643A1

GASKET

Foam, HID Ballast

1шт.

21

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

22

322332A1

BALLAST

Light, Center HID

1шт.

23

84396156

MOUNT

Light, Cab, LH

1шт.

24

84396157

MOUNT

Light, Cab, RH

1шт.

25

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

Flood, 80 x 30 Halogen

2шт.

26

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

27

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

28

182049A1

GROMMET

Rubber

2шт.

29

84230997

BRACKET, SUPPORTING

Work Light

2шт.

30

86981482

BOLT,Hvy Hex Flg, M8 x 30mm, Cl 8.8, Full Thd

4шт.

31

355532A1

WASHER

Nylon

4шт.

32

84231001

BRACKET, SUPPORTING

Work Light, RR, LH

1шт.

33

87610713

BOLT,Hex, M8 x 55mm, Cl 8.8

2шт.

34

84231006

BRACKET, SUPPORTING

Work Light, RR, RH

1шт.

35

323093A1

BULB

885-12V, Halogen, Work Lamp

2шт.

36

388872A1

BULB

H4 Halogen, 65W/55W

2шт.

37

1312210C2

BULB,Halogen H3, 12V, 55W

H3 Halogen, 12V, 55W

1шт.

38

276498A1

LENS

Refelector

1шт.

39

1964806C1

BEZEL

Flood Lamp

1шт.
