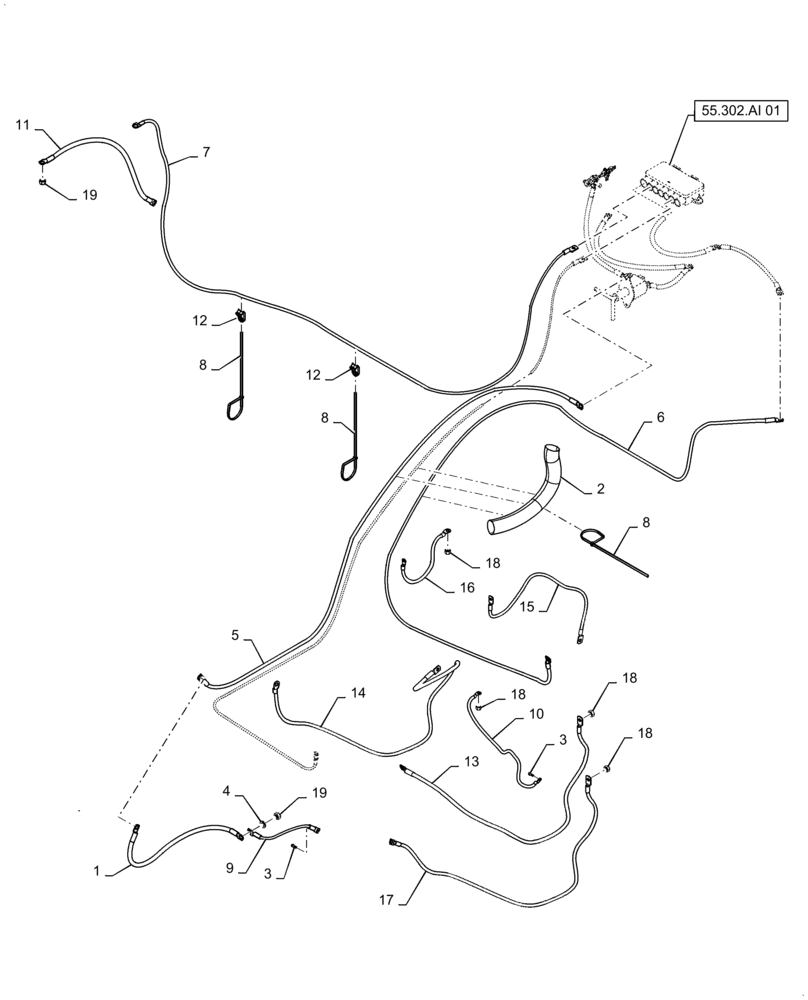

Запчасти Case IH TITAN 4540 (55.302.AV[01]) - BATTERY - CABLES (55) - ELECTRICAL SYSTEMS

1

84566788

NEG BATTERY CABLE

62, M10 Terminal, M10 Terminal, 795mm Long

1шт.

2

BN304292

COVER

Hose, Nylon, 1.42 ID

1шт.

3

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

5

47582624

CABLE

Negative, 62, M10 Terminal, M8 Terminal, 1730mm Long

1шт.

6

47582625

CABLE

Positive, 50, M10 Terminal, M10 Terminal, 2460mm Long

1шт.

7

47582626

CABLE

Positive, 32, M6 Terminal, M13 Terminal, 3060mm Long

1шт.

8

BN570007

STRAP

Black, 14-1/2" Long

4шт.

9

84423432

NEG BATTERY CABLE

32, M6 Terminal, M10 Terminal, 270mm Long

1шт.

10

86611287

CABLE,490mm L

Negative, M6 Terminal, M6 Terminal

1шт.

11

87271710

CABLE

50, M10 Terminal, M10 Terminal, 600mm Long

1шт.

12

84340333

BASE PLATE

Base Tie

2шт.

13

47473680

POS BATTERY CABLE

32, M8 Terminal, M10 Terminal, 965mm Long

1шт.

14

47473686

POS BATTERY CABLE

13, M6 Terminal, M8 Terminal, 870mm Long

1шт.

15

47581143

POS BATTERY CABLE

13, M6 Terminal, M8 Terminal, 580mm Long

1шт.

16

47473822

POS BATTERY CABLE

13, M6 Terminal, M8 Terminal, 285mm Long

1шт.

17

47473881

CABLE

Positive, 13, M5 Terminal, M6 Terminal, 2075mm Long

1шт.

18

832-10406

NUT,M6 x 1, Cl 8

4шт.

19

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.
