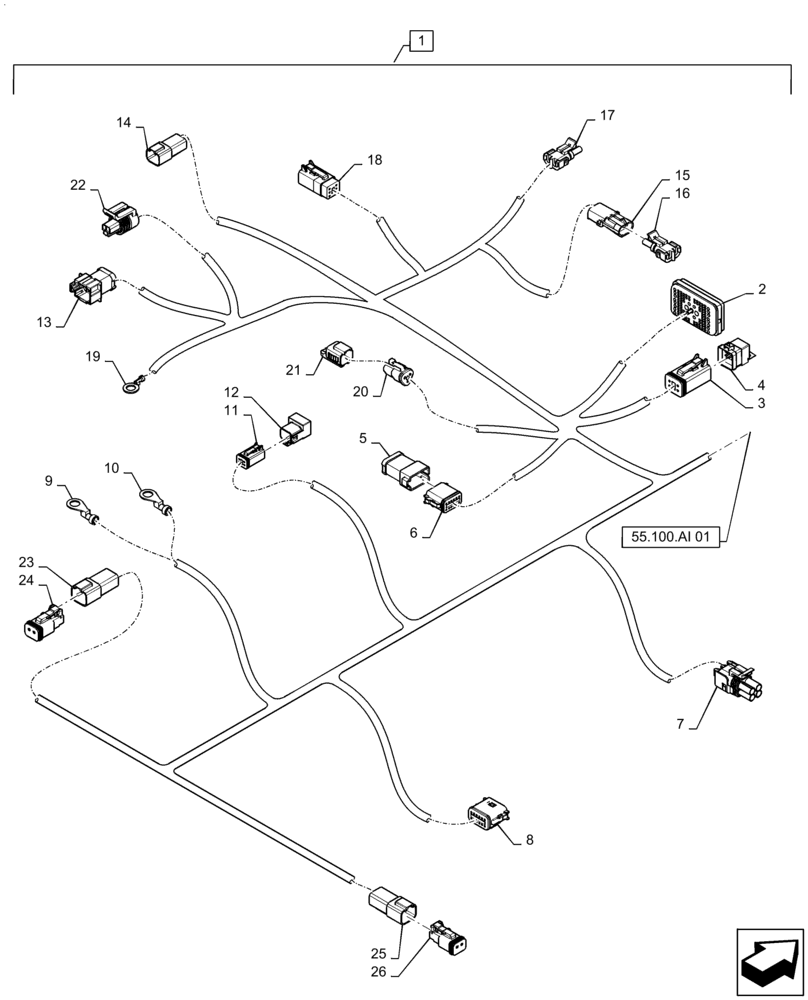

Запчасти Case IH TITAN 4540 (55.100.AI[02]) - MAIN FRAME HARNESS (55) - ELECTRICAL SYSTEMS

1

47545125

WIRE HARNESS

Main Frame, Incl 2 - 26

1шт.

2

437552A1

ELEC CONNECTOR,Female, 102 Pin

Cab Interface, XB-6F2

1шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Cab Interface, XB-6F2

43шт.

2

87695618

TERMINAL

Female, Nickel, Cab Interface, XB-6F2

7шт.

2

87695923

TERMINAL

Female, Nickel, Cab Interface, XB-6F2

4шт.

2

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

Nickel, Cab Interface, XB-6F2

4шт.

2

84068583

PLUG,12 - 16 Ga, White

Sealing, Cab Interface, XB-6F2

40шт.

2

87708094

WEDGE

Lock, LH Side, Cab Interface, XB-6F2

1шт.

2

87708095

WEDGE

Lock, RH Side, Cab Interface, XB-6F2

1шт.

2

84479010

BOOT

Cab Interface, XB-6F1

1шт.

3

87694112

ELEC CONNECTOR,Female, 6 Pole

Power Mirror, X-612F2

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Power Mirror, X-612F2

6шт.

3

87694150

LOCKING TAB,Wedge Lock

Lock, Power Mirror, X-612F2

1шт.

4

84391167

CAP

Cap For Power Mirror, X-612M2

1шт.

5

87696075

ELEC CONNECTOR

Female, 12 Cavity, Splice Pack, X-047CF2

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Splice Pack, X-047CF2

9шт.

5

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, X-047CF2

2шт.

6

87269436

SOCKET/RECEPTACLE

12 Way Splice Pack, X-047CF2

1шт.

7

87692862

ELEC CONNECTOR

4 Cavity, Radar, X-603F2

1шт.

7

87692856

CABLE TERMINAL

Radar, X-603F2

4шт.

8

87695592

CONTACT HOUSING,Female, 12 Pole

Rear Lights Harness Interface, X-606F2

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Rear Lights Harness Interface, X-606F2

7шт.

8

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Rear Lights Harness Interface, X-606F2

2шт.

8

84068583

PLUG,12 - 16 Ga, White

Rear Lights Harness Interface, X-606F2

2шт.

8

87695651

LOCKING TAB,Wedge Lock

Lock, Rear Lights Harness Interface, X-606F2

1шт.

9

84127304

TERMINAL

Back Up Alarm, Positive, X-608F2

1шт.

10

84127304

TERMINAL

Back Up Alarm, Negative, X-609F2

1шт.

11

87694153

CONTACT HOUSING,Female, 4 Cavities

Backlight/Worklight Diode, X-604F2

1шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Backlight/Worklight Diode, X-604F2

3шт.

11

84068583

PLUG,12 - 16 Ga, White

Sealing, Backlight/Worklight Diode, X-604F2

1шт.

11

84074640

LOCKING TAB,Wedge Lock

Wedge Lock, Backlight/Worklight Diode, X-604F2

1шт.

12

87270520

DIODE

Pack, X-604M2

1шт.

13

225320C1

ELEC CONNECTOR

Male, 8 Cavity, Remote Control, X-800M2

1шт.

13

381417A1

TERMINAL,Male, Nickel, 0.50 - 1.00mm

Remote Control, X-800M2

6шт.

13

84068583

PLUG,12 - 16 Ga, White

Sealing, Remote Control, X-800M2

2шт.

13

84806919

PLUG,Wedge Lock

Wedge Lock, Green, Remote Control, X-800M2

1шт.

14

222136A1

ELEC CONNECTOR,Male, 2 Pin

LH Auxiliary Boom Light, X-627M2

1шт.

14

87696141

TERMINAL

Male, Nickel, LH Auxiliary Boom Light, X-627M2

2шт.

14

87696585

LOCKING TAB,Wedge Lock, 2-Pin

Wedge Lock, Orange, LH Auxiliary Boom Light, X-627M2

1шт.

15

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Remote Park Brake, X-630M2

1шт.

15

87692882

ELEC. TERMINAL PIN

Male, Tin, Remote Park Brake, X-630M2

1шт.

15

87692880

CABLE TERMINAL

Male, Tin, Remote Park Brake, X-630M2

1шт.

16

87692855

CONTACT HOUSING,Male, 2 Cavities

Cap For Remote Park Brake, X-630F2

1шт.

16

87686742

PLUG

Cavity, Green, Cap For Remote Park Brake, X-630F2

2шт.

17

87692855

CONTACT HOUSING,Male, 2 Cavities

Hydraulic Filter, X-629F2

1шт.

17

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

Female, Hydraulic Filter, X-629F2

2шт.

18

87700107

ELEC CONNECTOR

Female, 6 Cavity, Hydraulic Oil Level Sensor, X-628F2

1шт.

18

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Hydraulic Oil Level Sensor, X-628F2

5шт.

18

84807680

PLUG

Sealing, Red, Hydraulic Oil Level Sensor, X-628F2

1шт.

18

87705582

ELEC CONNECTOR

Wedge Lock, Hydraulic Oil Level Sensor, X-628F2

1шт.

19

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

Clean Ground, GND2.2

1шт.

20

87695580

ELEC CONNECTOR,Female, 3 Pole

Torque Select, X-832F2

1шт.

20

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Torque Select, X-832F2

3шт.

20

84074639

LOCKING TAB,Wedge Lock

Wedge Lock, Orange, Torque Select, X-832F2

1шт.

21

84391165

HOUSING,Male, 3 Pins

Cap For Torque Select, X-832M2

1шт.

22

84078681

WIRE CONNECTOR,Female

3 Cavity, Air Pressure Sensor, X-637F2

1шт.

22

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Tin, Air Pressure Sensor, X-637F2

3шт.

23

87696547

ELEC CONNECTOR,Female, 2 Cavities

Male, 2 Cavity, LH Auxilary Fender Light, X-605M2

1шт.

23

87696141

TERMINAL

Male, Nickel, LH Auxilary Fender Light, X-605M2

2шт.

23

87696585

LOCKING TAB,Wedge Lock, 2-Pin

Wedge Lock, LH Auxilary Fender Light, X-605M2

1шт.

24

87696093

ELEC CONNECTOR,Female, 2 Cavities

Cap, LH Auxilary Fender Light, X-605F2

1шт.

24

84807680

PLUG

Sealing, Red, LH Auxilary Fender Light, X-605F2

2шт.

25

87696547

ELEC CONNECTOR,Female, 2 Cavities

Male, 2 Cavity, LH Auxilary Fender Light, X-607M2

1шт.

25

87696141

TERMINAL

Male, Nickel, LH Auxilary Fender Light, X-607M2

2шт.

26

87696585

LOCKING TAB,Wedge Lock, 2-Pin

Wedge Lock, LH Auxilary Fender Light, X-607M2

1шт.

26

87696093

ELEC CONNECTOR,Female, 2 Cavities

Cap, LH Auxilary Fender Light, X-607F2

1шт.

26

84807680

PLUG

Sealing, Red, LH Auxilary Fender Light, X-607F2

2шт.
