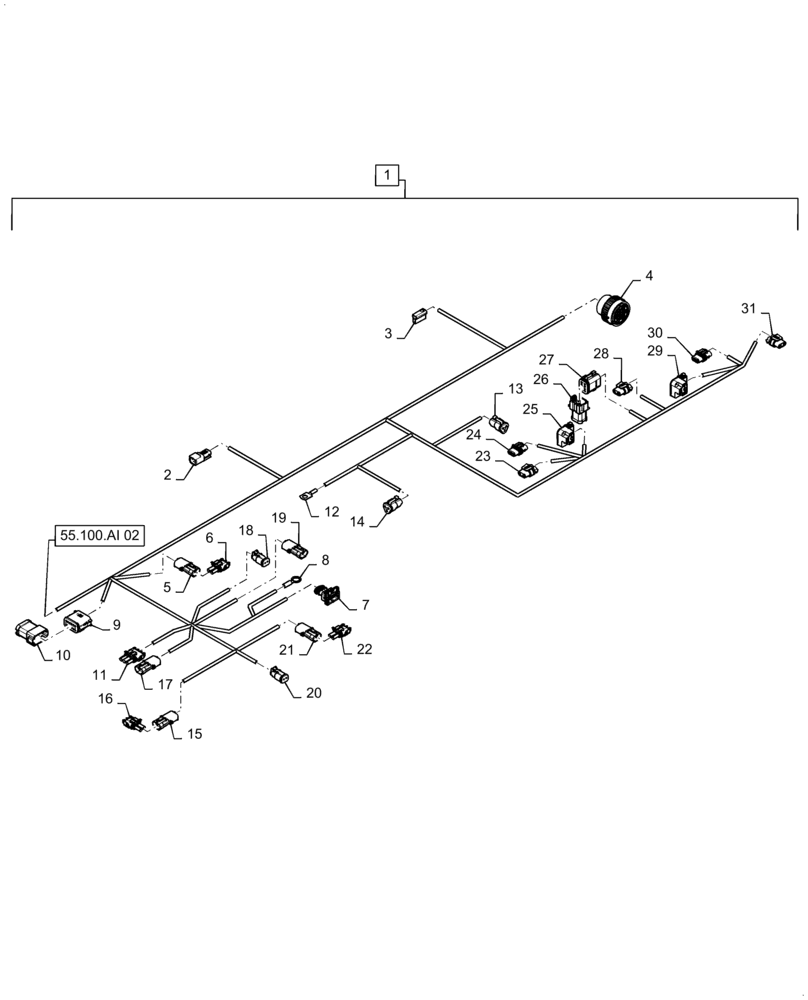

Запчасти Case IH TITAN 4540 (55.100.AI[01]) - MAIN FRAME HARNESS (55) - ELECTRICAL SYSTEMS

1

47545125

WIRE HARNESS

Main Frame, Incl 2 - 31

1шт.

2

87696547

ELEC CONNECTOR,Female, 2 Cavities

Male, 2 Cavity, RH Auxiliary Boom Light, X-616M2

1шт.

2

87696141

TERMINAL

Male, Nickel, RH Auxiliary Boom Light, X-616M2

2шт.

2

87696585

LOCKING TAB,Wedge Lock, 2-Pin

Wedge Lock, RH Auxiliary Boom Light, X-616M2

1шт.

3

87697531

ELEC CONNECTOR,Female, 2 Cavities

Female, 2 Cavity, Front Washer, X-625F2

1шт.

3

87709400

ELEC. TERMINAL PIN

Female, Tin, Front Washer, X-625F2

1шт.

3

87697660

TERMINAL

Female, Tin, Front Washer, X-625F2

1шт.

4

84177901

ELEC CONNECTOR

Male, 31 Cavity, Engine, XB-801M1

1шт.

4

87695915

ELEC. TERMINAL PIN,Male, Nickel, 1 - 2 mm

Engine, XB-801M2

3шт.

4

87697946

CONNECTOR, ELEC

Male, Nickel, Engine, XB-801M2

16шт.

4

84068583

PLUG,12 - 16 Ga, White

Sealing, Engine, XB-801M2

12шт.

5

87692855

CONTACT HOUSING,Male, 2 Cavities

Accessory Power, X-611F2

1шт.

5

87692856

CABLE TERMINAL

Female, Tin, Accessory Power, X-611F2

2шт.

6

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Cap For Accessory Power, X-611M2

1шт.

6

87686742

PLUG

Cavity, Green, Cap For Accessory Power, X-611M2

2шт.

7

87709663

ELEC CONNECTOR,Female, 3 Cavities

Female, 3 Cavity, WIF Sensor, X-666F2

1шт.

7

84607244

ELEC. TERMINAL PIN,Female, 0.5 - 1 mm2

Tin, WIF Sensor, X-666F2

3шт.

8

84398832

TERMINAL,Eyelet, M10, 1.00 - 2.00mm

WIF Filter Ground, X-634F2

1шт.

9

87696075

ELEC CONNECTOR

Female, 12 Cavity, Splice 047A, SP-047FA1

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Splice 047A, SP-047FA2

8шт.

9

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice 047A, SP-047FA2

4шт.

9

87695651

LOCKING TAB,Wedge Lock

Lock, Splice 047A, SP-047FA2

1шт.

10

87269436

SOCKET/RECEPTACLE

12 Way Splice Pack, CS47MA2

1шт.

11

87644909

WIRE CONNECTOR,Female, 3 Pins

Fuel Level Sender, X-610F2

1шт.

11

87692856

CABLE TERMINAL

Fuel Level Sender, X-610F2

3шт.

12

84401295

TERMINAL

Clean Ground, GD3.1

1шт.

13

87695580

ELEC CONNECTOR,Female, 3 Pole

RH Flasher, X-619F2

1шт.

13

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

RH Flasher, X-619F2

3шт.

13

84074639

LOCKING TAB,Wedge Lock

Wedge Lock, RH Flasher, X-619F2

1шт.

14

87695580

ELEC CONNECTOR,Female, 3 Pole

LH Flasher, X-626F2

1шт.

14

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Flasher, X-626F2

3шт.

14

84074639

LOCKING TAB,Wedge Lock

Wedge Lock, LH Flasher, X-626F2

1шт.

15

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Auxiliary Drive On, X-613M2

1шт.

15

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Male, Auxiliary Drive On, X-613M2

2шт.

16

87692855

CONTACT HOUSING,Male, 2 Cavities

Cap For Auxiliary Drive On, X-613F2

1шт.

16

87686742

PLUG

Cavity, Green, Cap For Auxiliary Drive On, X-613F2

2шт.

17

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

2 Speed Axle Off, X-618M2

1шт.

17

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Male, 2 Speed Axle Off, X-618M2

2шт.

18

87695582

ELEC CONNECTOR,Female, 2 Pole

Air Horn, X-615F2

1шт.

18

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Air Horn, X-615F2

2шт.

18

84074638

LOCKING TAB,Locking Wedge, Green

Air Horn, X-615F2

1шт.

19

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

2 Speed Axle On, X-614M2

1шт.

19

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Male, 2 Speed Axle On, X-614M2

2шт.

20

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Remote Park Brake, X-630M2

1шт.

20

87692882

ELEC. TERMINAL PIN

Male, Tin, Remote Park Brake, X-630M2

1шт.

20

87692880

CABLE TERMINAL

Male, Tin, Remote Park Brake, X-630M2

1шт.

21

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Auxiliary Drive, Off, X-617M1

1шт.

21

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

Male, Auxiliary Drive, Off, X-617M1

2шт.

22

87692855

CONTACT HOUSING,Male, 2 Cavities

Cap For Auxiliary Drive, Off, X-617F1

1шт.

22

87686742

PLUG

Cavity, Green, Cap For Auxiliary Drive, Off, X-617F1

2шт.

23

294250A1

CONNECTOR, ELEC

Female, 3 Cavity, Alt RH Worklight, X-633F2

1шт.

23

87680656

CONTACT

Female, Tin, Alt RH Worklight, X-633F2

2шт.

23

87686740

RETAINER

Secondary Lock, Blue, Alt RH Worklight, X-633F2

1шт.

24

87693711

CONNECTOR, ELEC

Female, 2 Cavity, RH Worklight, X-621F2

1шт.

24

87680656

CONTACT

Female, Tin, RH Worklight, X-621F2

2шт.

24

87704960

ELEC CONNECTOR

Secondary Lock, Black, RH Worklight, X-621F2

1шт.

25

198222A1

CONNECTOR, ELEC

Female, 3 Cavity, RH Headlight, X-620F2

1шт.

25

87714242

TERMINAL

Female, Silver, RH Headlight, X-620F2

3шт.

26

87270259

ELEC CONNECTOR

8 Pin Bussbar Cap, Gray, Splice Pack, X-047BM2

1шт.

27

87695693

ELEC CONNECTOR

Female, 8 Cavity, Splice Pack, X-047BF2

1шт.

27

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, X-047BF2

2шт.

27

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Splice Pack, X-047BF2

6шт.

27

87695638

STOP LOCK

Wedge Lock, Splice Pack, X-047BF2

1шт.

28

294250A1

CONNECTOR, ELEC

Female, 3 Cavity, Center Hid Light, X-623F2

1шт.

28

87680656

CONTACT

Female, Tin, Center Hid Light, X-623F2

2шт.

28

87686740

RETAINER

Secondary Lock, Blue, Center Hid Light, X-623F2

1шт.

29

198222A1

CONNECTOR, ELEC

Female, 3 Cavity, LH Headlight, X-622F2

1шт.

29

87714242

TERMINAL

Female, Silver, LH Headlight, X-622F2

3шт.

30

87693711

CONNECTOR, ELEC

Female, 2 Cavity, LH Worklight, X-624F2

1шт.

30

87680656

CONTACT

Female, Tin, LH Worklight, X-624F2

2шт.

30

87704960

ELEC CONNECTOR

Secondary Lock, Black, LH Worklight, X-624F2

1шт.

31

294250A1

CONNECTOR, ELEC

Female, 3 Cavity, Alt LH Worklight, X-632F2

1шт.

31

87680656

CONTACT

Female, Tin, Alt LH Worklight, X-632F2

2шт.

31

87686740

RETAINER

Secondary Lock, Blue, Alt LH Worklight, X-632F2

1шт.
