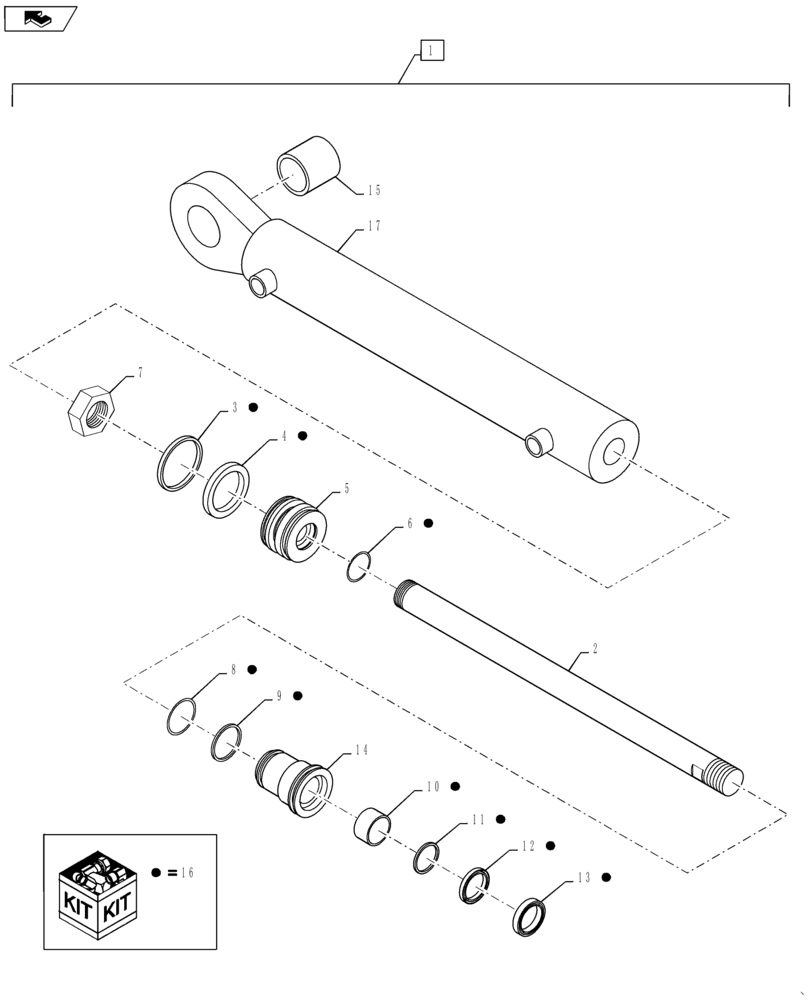

Запчасти Case IH TITAN 4540 (41.216.AV [01]) - STEERING CYLINDER, 4040, 4540 (41) - STEERING

1

87267313

CYLINDER,Double Acting, 25.4mm Rod, 304.8mm Stroke

Hydraulic, Steering, 2.00 x 12 x 1.00, Complete, Incl 2 - 17

1шт.

2

87267175

ROD

Cylinder

1шт.

3

86986223

WEAR RING

2шт.

4

86986216

SEAL

Piston

1шт.

5

86986226

PISTON

1шт.

6

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

1шт.

7

86986220

LOCK NUT

Rod

1шт.

8

238-5133

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

2шт.

9

84251311

WASHER

Back-Up

1шт.

10

86986217

WEAR RING

1шт.

11

86986219

SEAL

Step

1шт.

12

86986218

SEAL

U-Cup

1шт.

13

86986215

WIPER

Seal

1шт.

14

86986227

HEAD

Front

1шт.

15

86986221

BUSHING,25.4mm ID x 53.98mm OD x 34.92mm W

Teflon

1шт.

16

342216A1

SEAL KIT

Incl 3, 4, 6, 8 - 13

1шт.

17

86986230

CASE

Assembly

1шт.
