Запчасти Case IH TITAN 4530 (36.100.05) - AIR DRYER LINES AND MOUNTING (36) - PNEUMATIC SYSTEM

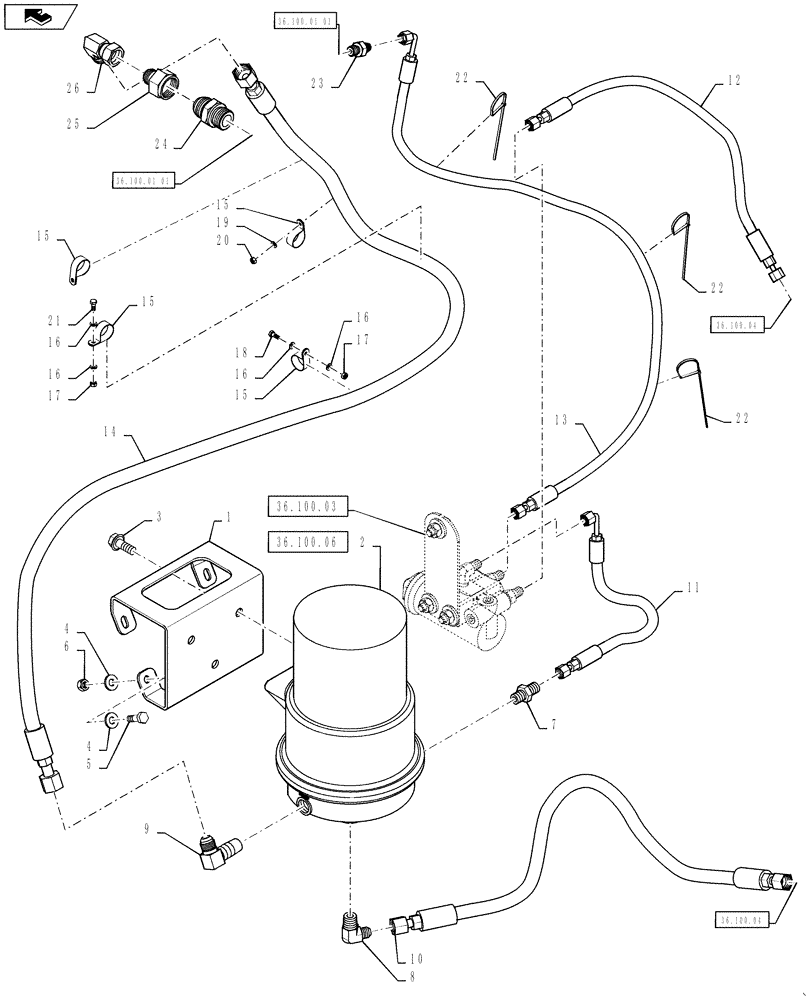

Схема запчастей Case IH TITAN 4530 - (36.100.05) - AIR DRYER LINES AND MOUNTING (36) - PNEUMATIC SYSTEM
36.100.06
36.100.04
36.100.04
36.100.03
36.100.01 01
36.100.01 01
12
24
13
19
15
26
15
22
25
22
5
15
20
8
14
18
4
7
17
9
10
21
4
11
2
home
6
16
22
1
3
23
16
15
16
17
16

Артикул

Название

Примечание

Количество

1

84179919

MOUNT

Air Dryer

1шт.

2

87656542

DEHYDRATOR

Air Dryer Assembly, See 36.100.06 For Service Parts

1шт.

3

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

3шт.

4

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

5

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

7

BN441005

ADAPTER

Pipe-37,Flare 04-02

1шт.

8

BN2290508

ELBOW

1/2 NPT X 3/4 JIC

1шт.

9

BN2390690

FITTING

Elbow, 90, LG, 1/2 NPT x 7/8 JIC

1шт.

10

87266804

HOSE

Air, 3/4-16 Female JIC Swivel x 3/4-16 Female JIC Swivel x 1/2 ID X 77" Long, Air Dryer To Rear Port Of Primary Air Tank

1шт.

11

84180315

AIR HOSE

7/16-20 Female JIC Swivel x 7/16-20 Female JIC Swivel Short Elbow X 1/8"ID x 18" Long, Air Dryer To Governor

1шт.

12

84180316

AIR HOSE,6.30 mm ID x 1219.00 mm, SAE J1402

7/16-20 Female JIC Swivel x 7/16-20 Female JIC Swivel x 1/8" ID X 48" Long, C 1 Governor Port To Primary Air Tank, Second Port

1шт.

13

87266805

HOSE

Air, 7/16-20 Female JIC Swivel X 7/16-20 Female JIC Swivel Short Elbow X 1/8" ID X 107" Long Air Compressor Control Port to Governor UNL 2D Top Port

1шт.

14

84180317

AIR HOSE,16.00 mm ID x 3606.00 mm, SAE 100R14A

7/8-14 Female JIC Swivel x 7/8-14 Female JIC Swivel x 5/8" ID X 142" Long, SS Braid, Air Compressor Outlet To Air Dryer

1шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

4шт.

16

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

17

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

18

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

19

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

1шт.

20

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

1шт.

21

86980382

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

M8 - 1.25 x 35, 8.8, DOR

1шт.

22

BN570007

STRAP

Black, 14-1/2" Long

4шт.

23

84173220

ADAPTER

7/16" - 20 JIC x M12-1.5 ORB, Air Compressor Control Port

1шт.

24

84173221

ADAPTER

1-1/16" - 12 JIC x M26-1.5 ORB, Air Compressor Outlet

1шт.

25

87301344

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

1шт.

26

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

Выбрано товаров: 26
