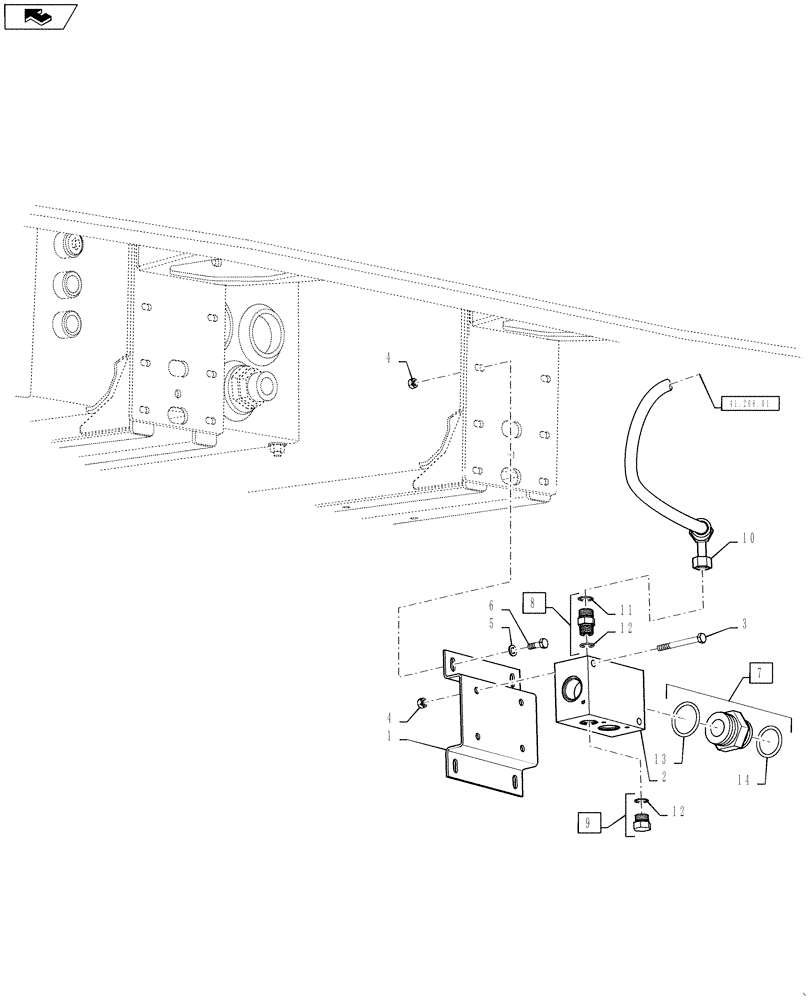

Запчасти Case IH TITAN 4530 (35.300.05) - HYDRAULIC MANIFOLD MOUNTING (35) - HYDRAULIC SYSTEMS

1

BN324125

BRACKET, SUPPORTING

Manifold

1шт.

2

BN302877

MANIFOLD

Oil Return

1шт.

3

86980388

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

4

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

5

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

12шт.

6

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

7

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes Ref. 11, 12

1шт.

8

BN305058

FITTING

1-11/16 - 12 ORFS x 1-7/8 - 12 ORB, ZN, Includes Ref 13, 14

1шт.

9

BN446025

PLUG

3/4 - 16 ORB, ZN, Includes Ref 12

1шт.

10

BN309737

HOSE

13/16 - 16 Female ORFS Swivel x 13/16 - 16 ORFS Swivel Elbow x 1/2" ID x 91" Long, Manifold to Steering Orbital

1шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

1шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

2шт.

13

9626930

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1-7/8", ORB

1шт.

14

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1-11/16", ORFS

1шт.
