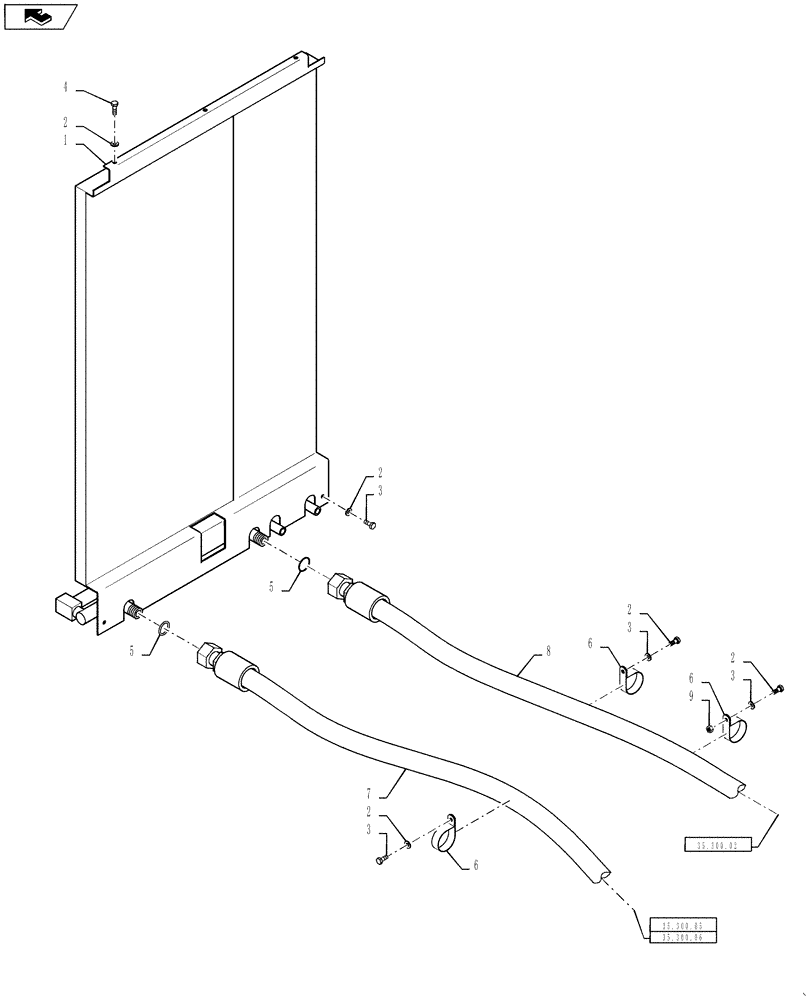

Запчасти Case IH TITAN 4530 (35.300.04) - HYDRAULIC OIL COOLER (35) - HYDRAULIC SYSTEMS

1

BN324333

OIL COOLER

Transmission/Hydraulic Oil

1шт.

2

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2MM, HDN, DOR

8шт.

3

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

4

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

5

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1-11/16", ORFS

2шт.

6

515-23508

CLAMP,2", Insul, 3/8" Bolt

3шт.

7

87266238

HOSE

1-11/16-12 Female ORFS Swivel x 1-11/16-12 Female ORFS Swivel x 1-1/4 ID x 132" Long, Cooler To Manifold Block

1шт.

8

87266239

HOSE

1-11/16-12 Female ORFS Swivel x 1-11/16-12 Female ORFS Swivel x 1-1/4 ID x 152" Long, Cooler To Oil Tank Filter

1шт.

9

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.
