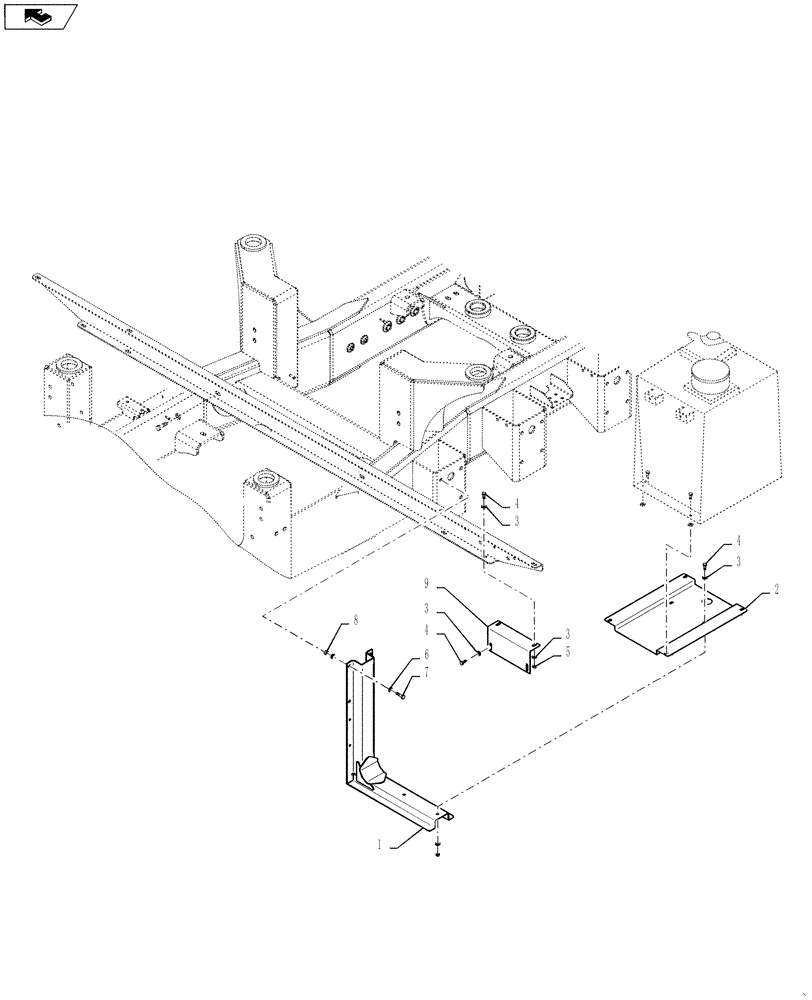

Запчасти Case IH TITAN 4530 (35.300.03) - HYDRAULIC OIL TANK MOUNTING (35) - HYDRAULIC SYSTEMS

1

344099A1

BRACKET

Hydraulic Tank

1шт.

2

87265292

MOUNT

Hydraulic Tank

1шт.

3

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

10шт.

4

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

6шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

6

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

7

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

8

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

9

87267218

BRACKET

Hydraulic Tank

1шт.
