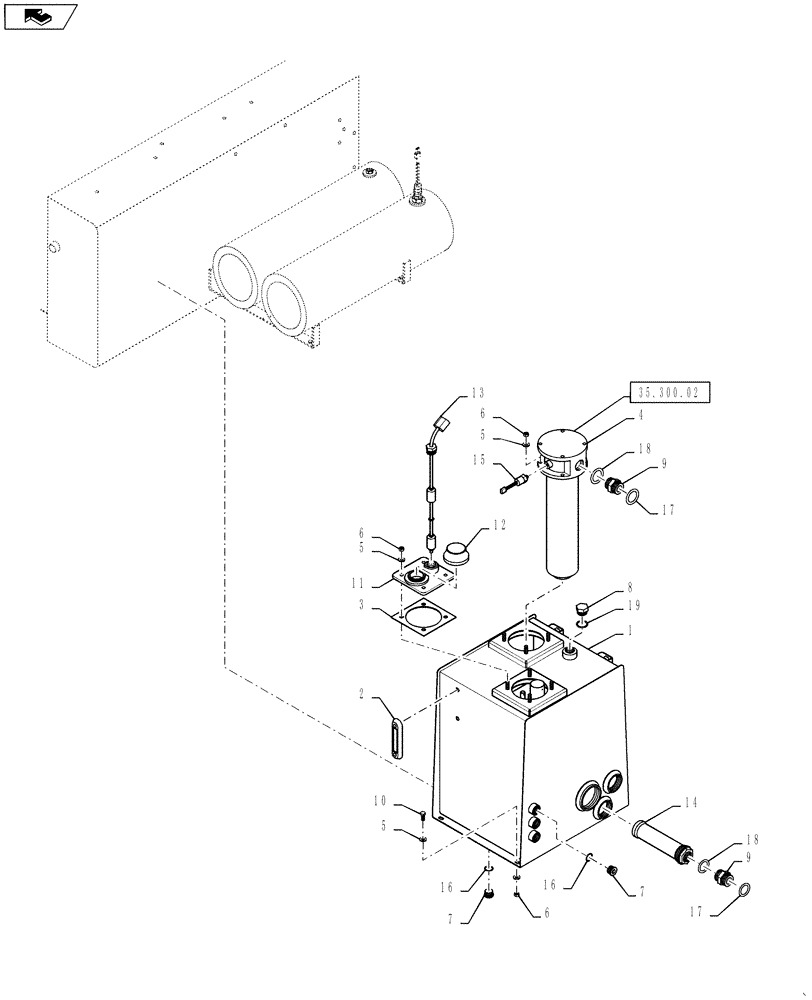

Запчасти Case IH TITAN 4530 (35.300.01) - HYDRAULIC TANK (35) - HYDRAULIC SYSTEMS

1

84478944

TANK

Hydraulic

1шт.

2

BN322594

GAUGE

Sight, With Temperature

1шт.

3

87272095

GASKET,3.17mm Thk

Cover Plate

1шт.

4

87267809

HYDRAULIC OIL FILTER

In Tank

1шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

7

218-5212

PLUG,1-1/16" - 12 ORB

2шт.

8

BN60479

PLUG

1-5/16" -12 ORB

1шт.

9

BN302660

FITTING

1-11/16-12 ORFS x 1-5/8-12 ORB

2шт.

10

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

11

87272100

PLATE

Level/Temperature Sender

1шт.

12

BN304339

VALVE

Pressure Valve

1шт.

13

BN324116

INDICATOR

Sensor, Multiple, Oil Level And Oil Temperature

1шт.

14

BN303528

STRAINER ASSY.

32MB X 20 FB, 100 Mesh

1шт.

15

87267808

PRESSURE SWITCH

Oil Tank, 25 PSI

1шт.

16

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

2шт.

17

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", OFRS

2шт.

18

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-5/8", ORB

2шт.

19

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-5/16", ORB

1шт.
