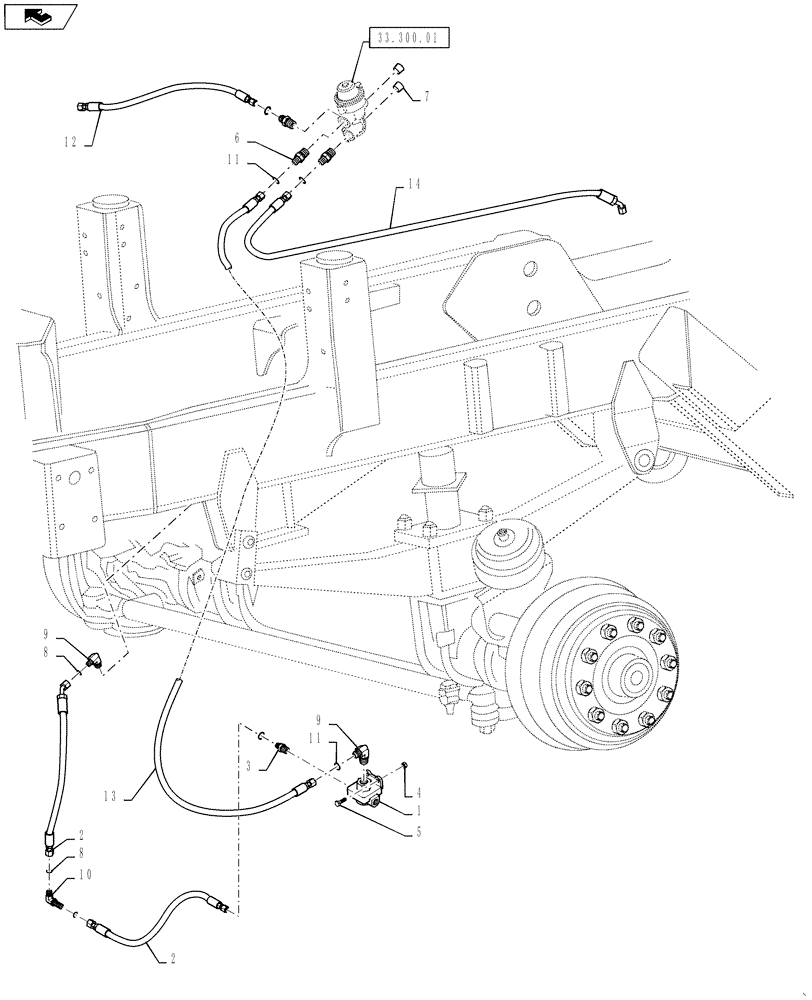

Запчасти Case IH TITAN 4530 (33.300.02) - FRONT BRAKE LINES AND FITTINGS (33) - BRAKES & CONTROLS

1

BN2298276

PNEUMATIC VALVE

Quick Release Valve, Front Brake

1шт.

2

87266801

HOSE

Air, 9/16-18 Female ORB Swivel X 9/16-18 ORB Swivel X 3/8" ID X 22" Long

4шт.

3

BN2290119

FITTING

Straight, 3/8 NPT X 9/16 X 18 JIC

2шт.

4

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

5

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

6

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

3шт.

7

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

2шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

8шт.

9

BN2290508

ELBOW

1/2 NPT X 3/4 JIC

3шт.

10

BN2390661

FITTING

Elbow, 90, Bulkhead, 9/16 X 18 JIC

2шт.

11

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

4шт.

12

BN316546

HOSE

Air, 3/4-16 Female ORB Swivel X 3/4-16 ORB Swivel X 1/2" ID X 204" Long, Valve To Valve

1шт.

13

84228113

HOSE,12.50 mm ID x 2235.00 mm, SAE J1402, SAE J1019

Air, 3/4-16 Female ORB Swivel X 3/4-16 ORB Swivel X 1/2" ID X 88" Long, Valve To Valve

1шт.

14

87266804

HOSE

Air, 3/4-16 Female ORB Swivel X 3/4-16 ORB Swivel X 1/2" ID X 77" Long, Tank Fitting To Valve

1шт.
