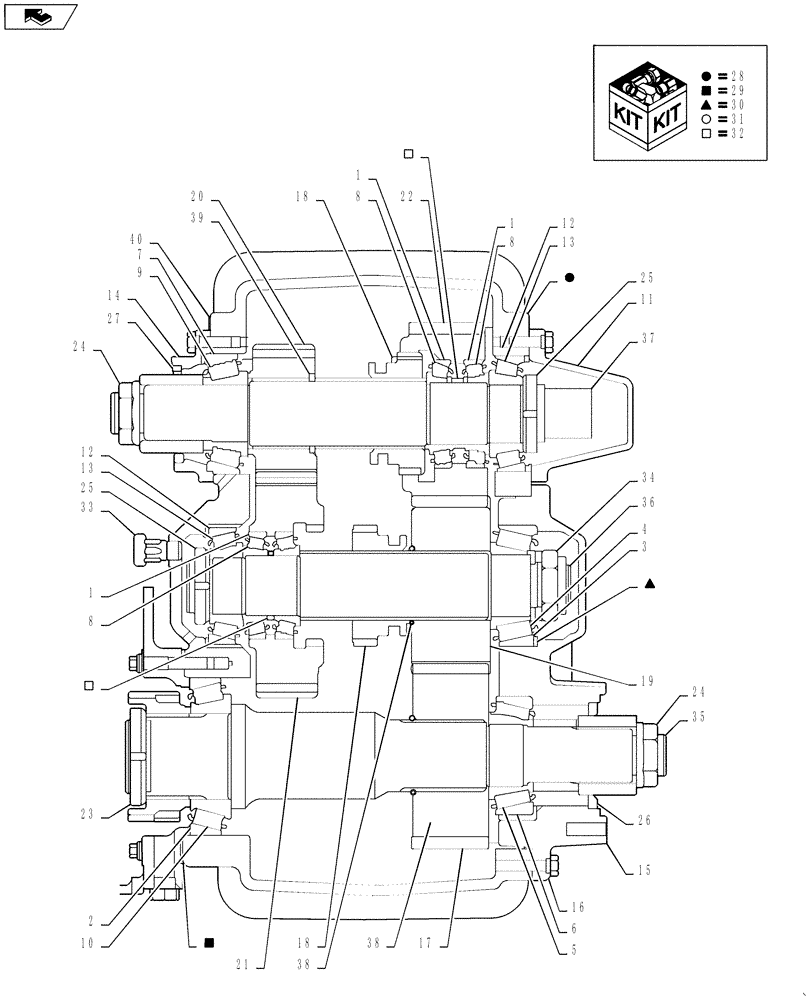

Запчасти Case IH TITAN 4530 (21.145.01) - AUXILIARY TRANSMISSION INTERNAL SERVICE PARTS (21) - TRANSMISSION

1

87577055

BEARING CUP

4шт.

2

87577128

BEARING CUP

1шт.

3

87577142

BEARING CUP

1шт.

4

87577143

ROLLER BEARING

1шт.

5

87577144

ROLLER BEARING

1шт.

6

87577145

BEARING CUP

1шт.

7

87577146

BEARING CUP

1шт.

8

87577147

ROLLER BEARING

4шт.

9

87577148

ROLLER BEARING

1шт.

10

87577149

ROLLER BEARING

1шт.

11

87577155

CAP

Shaft

1шт.

12

87577150

BEARING CUP

2шт.

13

87577151

ROLLER BEARING

2шт.

14

87577157

CARRIER

Seal

1шт.

15

87577159

CARRIER

Rear

1шт.

16

87577333

GASKET

Double - Carrier

1шт.

17

87577335

GEAR

35 Tooth, Helical

1шт.

18

87577336

GEAR

20 Tooth, Clutch

2шт.

19

87577337

GEAR

34 Tooth, Helical

1шт.

20

87577338

GEAR

22 Tooth, Low Pinion

1шт.

21

87577339

GEAR

37 Tooth, Helical, Low

1шт.

22

87577340

GEAR

35 Tooth, Helical

1шт.

23

87577341

LOCK NUT

Self, With Dri Loc

1шт.

24

87269595

LOCK NUT

1-1/2"-12, Self Lock

2шт.

25

87577370

LOCK NUT

Self, With Dri Loc

2шт.

26

87269203

OIL SEAL

Oil, Output Shaft

1шт.

27

87269202

OIL SEAL

Oil, Input Shaft

1шт.

28

87577378

REPAIR KIT

Shim, Input Shaft

1шт.

87577408

SHIM

Red, .002", Included in Ref 28

2шт.

87577407

SHIM

Blue, .005", Included in Ref 28

2шт.

87577406

SHIM

Pink, .016", Included in Ref 28

2шт.

87577405

SHIM

Coral, .031", Included in Ref 28

3шт.

29

87577381

REPAIR KIT

Shim, Output Shaft

1шт.

87577412

SHIM

Red, .002", Included in Ref 29

2шт.

87577411

SHIM

Blue, .005", Included in Ref 29

2шт.

87577410

SHIM

Pink, .016", Included in Ref 29

2шт.

87577409

SHIM

Coral, .031", Included in Ref 29

3шт.

30

87577382

REPAIR KIT

Shim, Intermediate Shaft

1шт.

87577413

SHIM

Red, .002", Included in Ref 30

3шт.

87577414

SHIM

Blue, .005", Included in Ref 30

2шт.

87577415

SHIM

Pink, .016", Included in Ref 30

2шт.

87577429

SHIM

Coral, .031", Included in Ref 30

2шт.

31

87577461

SERVICE KIT

Spacer Ring, Intermediate Shaft Underdrive Gear

1шт.

87577464

RING

Bearing Spacer, .237", Included in Ref 31

1шт.

87577465

RING

Bearing Spacer, .240", Included in Ref 31

1шт.

87577466

RING

Bearing Spacer, .243", Included in Ref 31

1шт.

87577467

RING

Bearing Spacer, .246", Included in Ref 31

1шт.

32

87577462

SPACER

Spacer Ring, Input Shaft Direct Drive Gear

1шт.

87577468

RING

Bearing Spacer, .417", Included in Ref 32

1шт.

87577469

RING

Bearing Spacer, .420", Included in Ref 32

1шт.

87577470

RING

Bearing Spacer, .423", Included in Ref 32

1шт.

87577471

RING

Bearing Spacer, .426", Included in Ref 32

1шт.

87577472

RING

Bearing Spacer, .429", Included in Ref 32

1шт.

33

219-436

BREATHER,3/8" - 18 NPT, Short, W/ Washer

1шт.

34

87578647

LOCK NUT

1 1/2"-12, Self Lock

1шт.

35

84176320

SHAFT

Rear

1шт.

36

84176319

SHAFT

Intermediate

1шт.

37

84176318

SHAFT

Input

1шт.

38

84176322

RING

Retaining - Split

2шт.

39

84176323

RING

Retaining - Split

1шт.

40

84230444

GASKET

Carrier - Top Shaft, Trans. Case

1шт.
