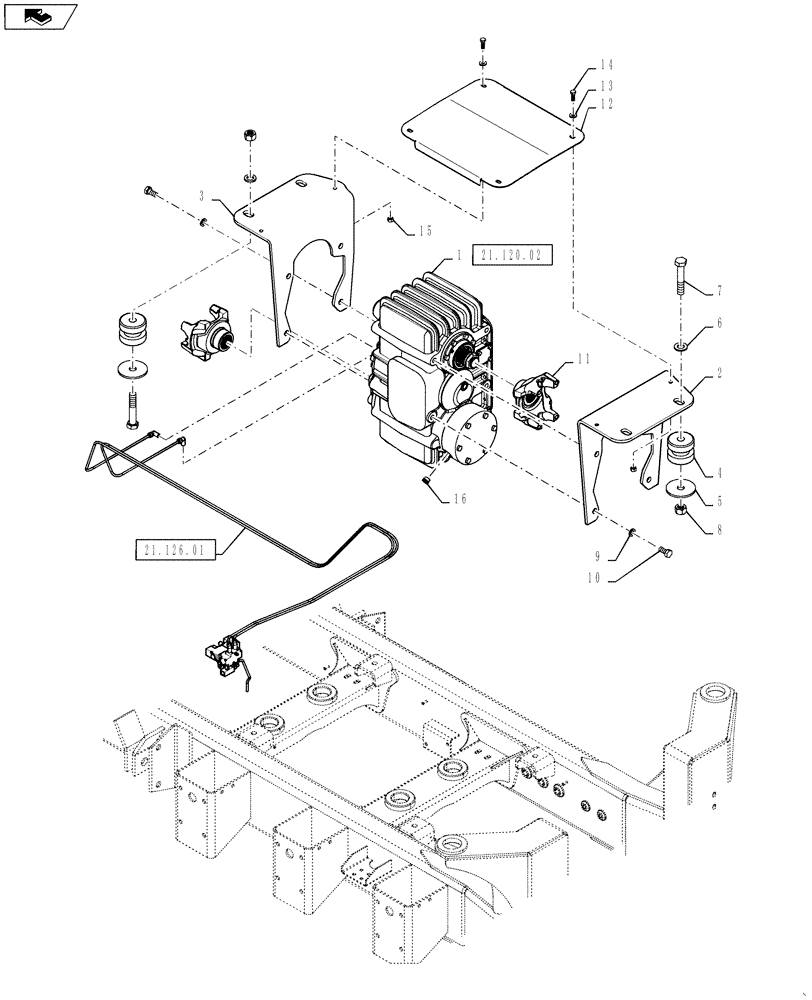

Запчасти Case IH TITAN 4530 (21.120.01) - AUXILIARY TRANSMISSION MOUNTING (21) - TRANSMISSION

1

84420642

TRANSFER BOX

2 Speed Auxiliary Transmission

1шт.

See Fig 21.120.02 For Service Parts Breakdown

1шт.

84420642R

REMAN-TRANSMISSION

TITAN 4030, TITAN 4530 BOTH TIER 4, (2/12-)

1шт.

84420642C

CORE-TRANSMISSION

Return Number

1шт.

2

84603660

MOUNT

Auxiliary Hanger

1шт.

3

87269619

PLATE

Auxiliary Hanger

1шт.

4

86986550

ISOLATOR

Molded Ring

4шт.

5

BN302284

WASHER,23.88mm ID x 98.55mm OD x 6.35mm Thk

Rebound

4шт.

6

87529313

WASHER,24mm ID x 44mm OD x 4mm Thk

24 x 44 x 4MM, HDN, DOR

6шт.

7

87342024

BOLT,Hex, M22 x 120mm, Cl 10.9

M22 - 2.5 x 120, 10.9, DOR

4шт.

8

87344025

NUT,Prev Torque, M22, 2.5 Pitch, Cl 10, DOR

4шт.

9

87529241

WASHER,0.64" ID x 1.05" OD x 0.13" Thk

.640 x 1.047" x .134", HDN

8шт.

10

87342844

BOLT

.625 x 1.25 Full GR5

8шт.

11

BN322517

YOKE

SPL170, 1.998-38

2шт.

12

87267035

COVER

Auxiliary Mounting

1шт.

13

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

14

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

15

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

16

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.
