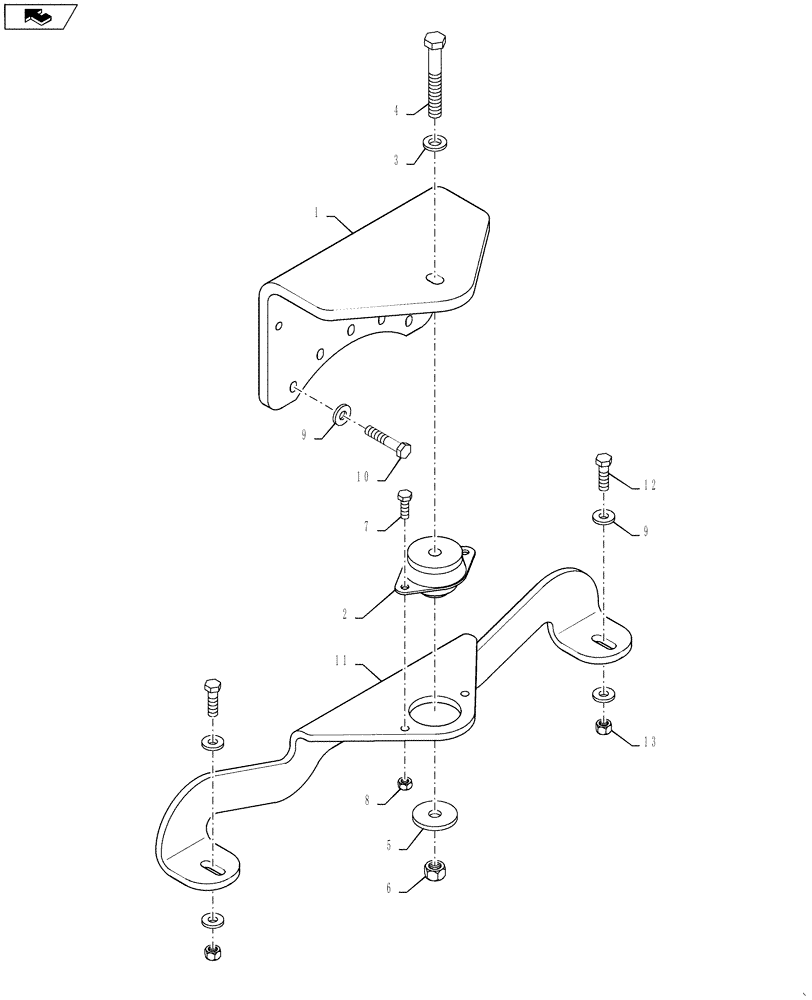

Запчасти Case IH TITAN 4530 (21.114.03) - TRANSMISSION MOUNT (21) - TRANSMISSION

1

342547A1

PLATE

Transmission Hanger

1шт.

2

BN306728

ENGINE MOUNT

1шт.

3

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

17.5 X 30 X 4MM HDN DOR

1шт.

4

87341856

BOLT,Hex, M16 x 110mm, Cl 10.9

M16-2 x 110, 10.9, DOR

1шт.

5

BN308164

WASHER

Rebound

1шт.

6

87344007

LOCK NUT

M16 - 2, 10.9, DOR

1шт.

7

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

9

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 X 28 X 4 HDN DOR

9шт.

10

86980426

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

5шт.

11

84172079

MOUNT

Transmission

1шт.

12

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

13

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.
