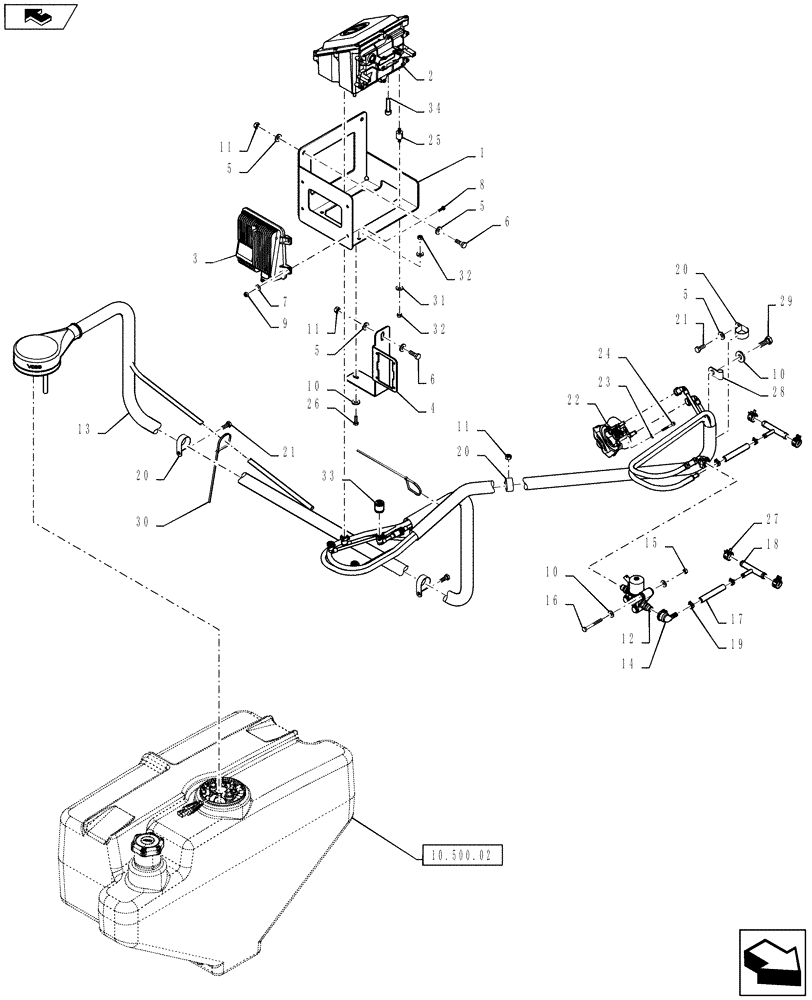

Запчасти Case IH TITAN 4530 (10.500.03) - DEF CONTORLLER, INJECTOR, AND LINES (10) - ENGINE

1

84472679

MOUNT

DEF Supply Module

1шт.

2

84246892

MODULE

DEF Supply ECU

1шт.

2

84246892R

REMAN-MODULE

DEF Supply ECU

1шт.

2

84246892C

CORE-MODULE

Return Number

1шт.

3

84383005

CONVERTER,12V To 24V

DC/DC, Serial Range: 12V-24V

1шт.

4

84370068

SUPPORT

DEF Supply Module

1шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

7шт.

6

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

7

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

4шт.

8

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

9

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

10

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9шт.

11

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

12

84151635

HEATER VALVE

DEF

1шт.

13

84381103

HOSE

DEF Lines, 4 Wheeler

1шт.

14

84182163

FITTING

1шт.

15

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

16

86980387

BOLT,Hex, M8 x 70mm, Cl 8.8

M8 - 1.25 x 70, 8.8, DOR

3шт.

17

84272204

HOSE,9.52mm ID x 100mm L, SAE 30R7

Radiator, Deaeration

2шт.

18

84381516

TEE

DEF Heater

2шт.

19

1348264C1

HOSE CLAMP

3/8" ID

4шт.

20

515-23476

CLAMP,1 7/8", Insul, 3/8" Bolt

5шт.

21

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

22

84247021

MODULE,Dosing Injector

Urea Dosing Injector

1шт.

22

84247021C

CORE-MODULE,Dosing Injector

Core, Urea Dosing Injector

1шт.

22

84247021R

REMAN-MODULE ,Dosing Injector

Reman, Urea Dosing Injector

1шт.

23

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

3шт.

24

84233542

HEX SOC SCREW

M6 x 40 Class 12.9

3шт.

25

84324608

ISOLATOR,20mm OD x 52mm L

Rubber

4шт.

26

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

27

1954736C1

HOSE CLAMP,#24

4шт.

28

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

29

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

30

BN570007

STRAP

Black, 14-1/2" Long

2шт.

31

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

32

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

4шт.

33

84254852

FILTER

Denox

1шт.

34

84247272

FILTER,In-Line

Inlet, Urea

1шт.
