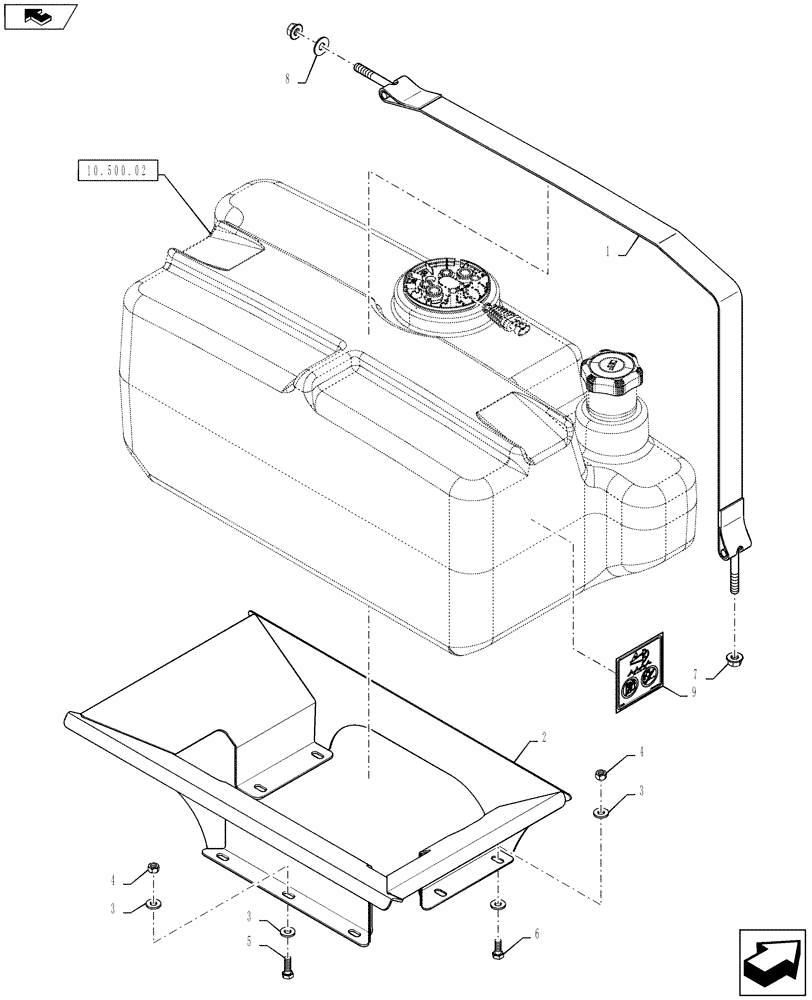

Запчасти Case IH TITAN 4530 (10.500.01) - DEF TANK MOUNTING (10) - ENGINE

1

84369529

STRAP

Fuel and DEF Tank

1шт.

2

84370093

MOUNT

Def Tank

1шт.

3

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

14шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

7шт.

5

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

6

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

7

87343935

FLANGE NUT

Flange, 1/2-13, GR G, DOR

2шт.

8

87310599

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

0.5 x 1.25 x 0.083, CST, DOR

1шт.

9

84284896

DECAL,DEF TANK identification label

DEF Tank

1шт.
