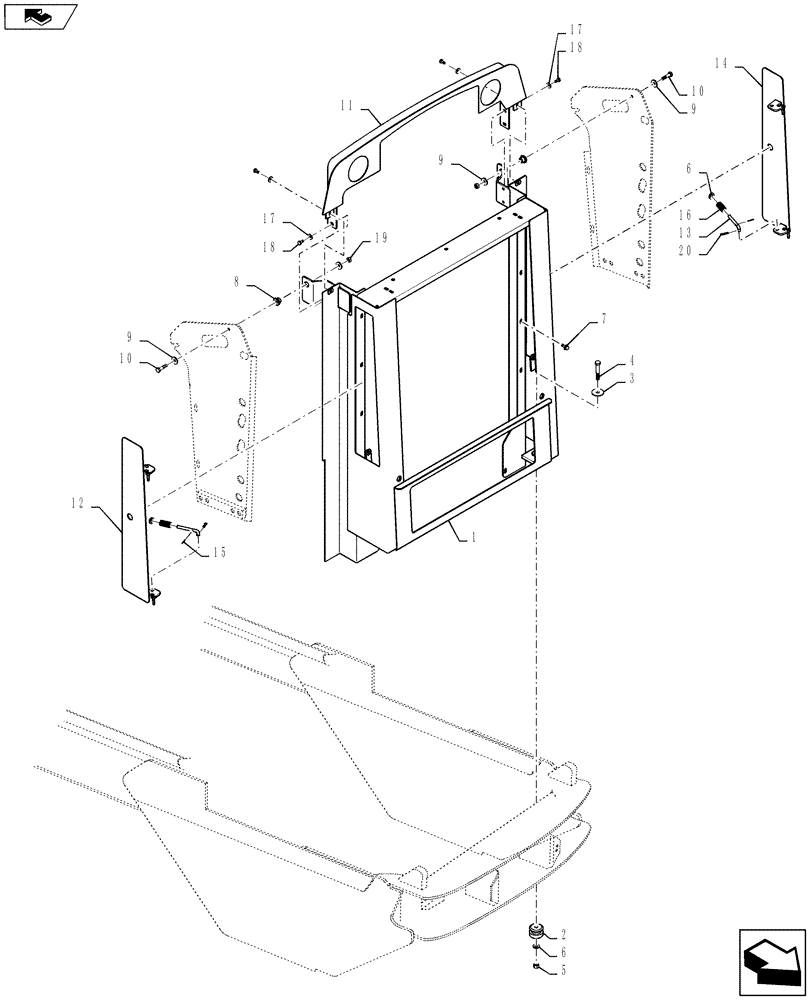

Запчасти Case IH TITAN 4530 (10.406.02) - RADIATOR MOUNTING (10) - ENGINE

1

84225285

MOUNT

Radiator

1шт.

2

47-4208

RUBBER BUSHING

Isolator

2шт.

3

87529126

WASHER,0.53" ID x 1.75" OD x 0.1" Thk

.531X1.75 X.1 DOR

2шт.

4

86980427

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

5

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

6

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

7

87343449

SERRATED BOLT

3/8-16 X 3/4 5SPL DOR

10шт.

8

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

Rubber

2шт.

9

87529239

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

0.406X1.125X0.134 HTS DOR HDN

4шт.

10

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

11

84172661

SUPPORT

Hood Seal

1шт.

12

87267454

DOOR

Cooler, Curb Side

1шт.

13

381794A1

ROD

Cooler Access Door

2шт.

14

87267455

DOOR

Cooler, Road Side

1шт.

15

38-3816

PIN,1/8" x 1", Coiled

2шт.

16

L129280

SPRING

Compression

2шт.

17

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

18

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

6шт.

19

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

20

19-5380

PIN

Hair

2шт.
