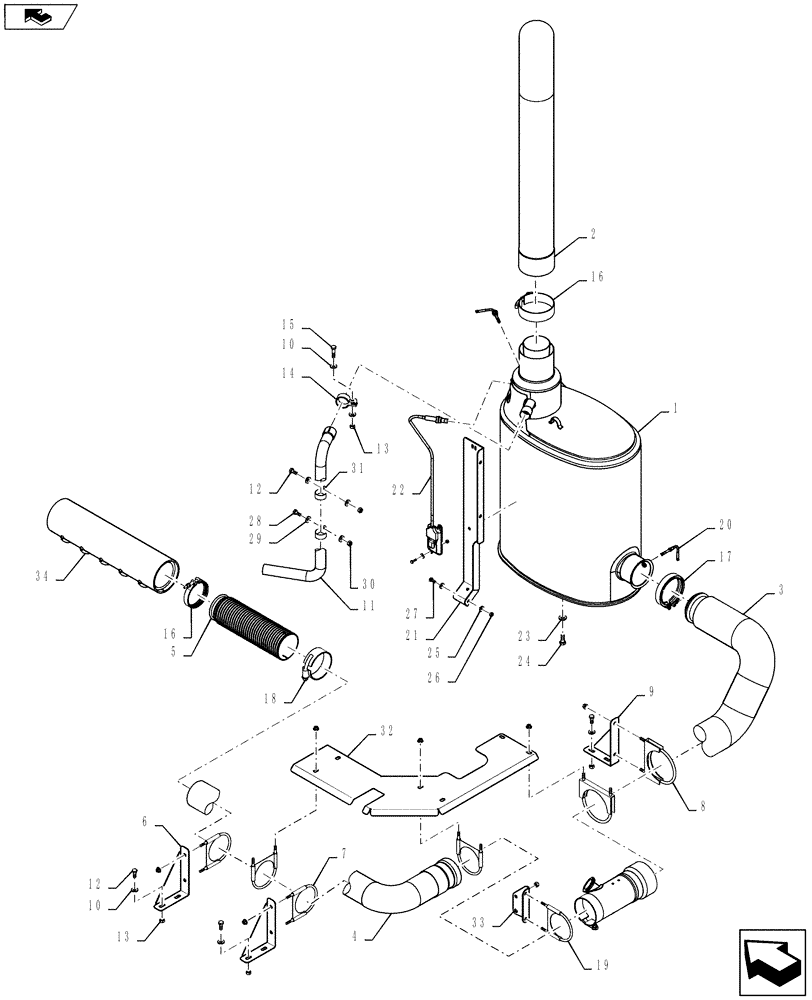

Запчасти Case IH TITAN 4530 (10.254.01) - EXHAUST MUFFLER (10) - ENGINE

1

84288725

MUFFLER

SCR, 24L

1шт.

2

84369518

EXHAUST SYSTEM PIPE

Stack

1шт.

3

84472634

EXHAUST SYSTEM PIPE

1шт.

4

84472632

EXHAUST SYSTEM PIPE

1шт.

5

84368127

ADAPTER

Turbo

1шт.

6

84378709

MOUNT

Exhaust Tube

2шт.

7

BN25927

CLAMP,104.8mm ID

4", Muffler

5шт.

8

BN306386

CLAMP,129.5mm ID

5", Muffler

2шт.

9

84182299

MOUNT

Exhaust

1шт.

10

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

11

84370102

TUBE

Pre-Cleaner

1шт.

12

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

13

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

9шт.

14

334985A1

CLAMP

Exhaust

1шт.

15

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

16

BN313592

CLAMP

Bent Bolt, 5"

1шт.

17

87487061

CLAMP,116.9mm - 118.2mm

Exhuast

1шт.

18

A170807

CLAMP,102mm ID

T-Bolt Turbo

1шт.

19

87314920

CLAMP

Engine Exhaust

2шт.

20

87482353

SENSOR

Exhaust Temperature

2шт.

21

84378478

MOUNT

NOX Sensor

1шт.

22

84422745

SENSOR

NOX

1шт.

23

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

4шт.

24

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

25

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

26

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

27

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

28

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

29

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

2шт.

30

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

31

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

2шт.

32

84472465

HEAT SHIELD

Exhaust

1шт.

33

84472467

MOUNT

DEF Lines

1шт.

34

84468389

INSULATION

Blanket

1шт.
